Wall Mounted Outdoor Fiber Termination Box With PLC Splitter Insert Cassette
Wall Mounted Outdoor Fiber Termination Box With PLC Splitter Insert Cassette
Wall Mounted Outdoor Fiber Termination Box With PLC Splitter Insert Cassette
Wall Mounted Outdoor Fiber Termination Box With PLC Splitter Insert Cassette
Specifications
Brand Name :
UNIFIBER
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs/day
Delivery Time :
5-7 days
Packaging Details :
carton box
Application :
indoor wall mounted
Adapter port :
SC/FC/LC
Max. capacity :
12/24/48/72
Material :
cold roll steel
Max. capacity of splice tray :
12fiber
Max Q'ty of splice tray :
4
Description

Outdoor fiber termination box, wall mounting terminal box fiber optic, load with PLC splitter insert cassette

GP(05) series are available for small capacity communication system,wall mounting.The cabinet is composed of 2 parts,one links with optical cables for fusion connection between optical cable and fiber pigtails.The other part links with patch cord.Whole range protected design for fiber lay to ensure the bending radius=40mm.

Specification
Working temperature:-25℃ ~ +40℃
Storage temperature:-25℃ ~ +55℃
Relative humidity:≤85% (+30℃)
Atmospheric pressure:70 ~ 106 kpa

Features

Suitable for 6,12 , 24 and 48 fiber connection

Easy installation and maintenance
Reliable device to strip,protect,fix and earth optical fiber
Splice adoptst separate sructure, it is convenient for expansion and maintenance

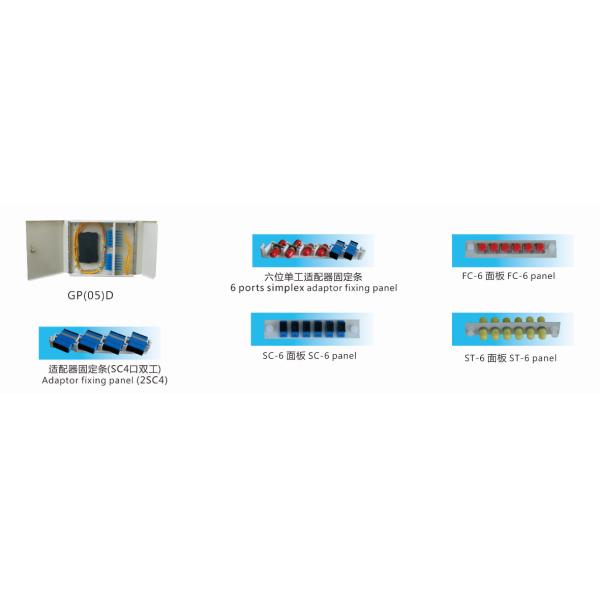

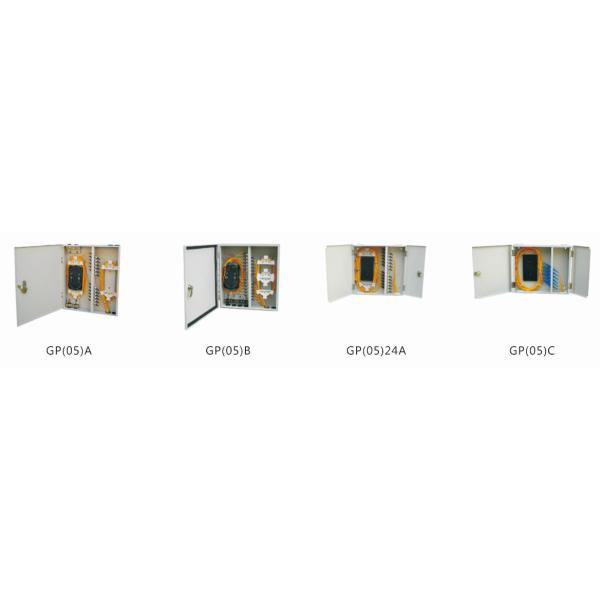

Type Size(mm) H*W*D Max capacity Outer carton dimension Outer cartion weight
GP(05)A-24 455*405*80 24 500*450*490/4pcs 29.5
GP(05)A-48 455*405*120 48 500*450*490/3pcs 25.3
GP(05)A-72 455*405*150 72 500*450*390/2pcs 19.5
GP(05)B-48 455*405*120 48 500*450*490/3pcs 27
GP(05)B-72 455*405*150 72 500*450*390/2pcs 20.5
GP(05)A-24A 350*350*80 24 405*405*605/5pcs 20.8
GP(05)B-24B 455*405*80 24 500*450*490/4pcs 29
GP(05)C 350*300*80 12 405*355*605/5pcs 19.5
GP(05)D 350*300*80 24 405*355*605/5pcs 19.5
