3ft SC UPC 12 Fibers OS2 Unjacketed Fiber Optic Pigtail
3ft SC UPC 12 Fibers OS2 Unjacketed Fiber Optic Pigtail
3ft SC UPC 12 Fibers OS2 Unjacketed Fiber Optic Pigtail
3ft SC UPC 12 Fibers OS2 Unjacketed Fiber Optic Pigtail
3ft SC UPC 12 Fibers OS2 Unjacketed Fiber Optic Pigtail
3ft SC UPC 12 Fibers OS2 Unjacketed Fiber Optic Pigtail
Specifications
Brand Name :
UNIFIBER-OEM
Model Number :
SC UPC 12 fibers Unjacketed Color-Coded Fiber Optic Pigtail
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs/day
Delivery Time :
5~7 Business days
Packaging Details :
Blister Case
Product :
SC UPC 12 fibers Unjacketed Color-Coded Fiber Optic Pigtail
Fiber :
G652D/G657A/OM2/OM3/OM4/OM5
Connector :
SC/UPC
Fiber Count :
12 fibers
Pigtail Type :
0.9mm Unjacketed Color-Coded
Pigtail Length :
1m
Package :
Blister Case
OEM :
Support
Description

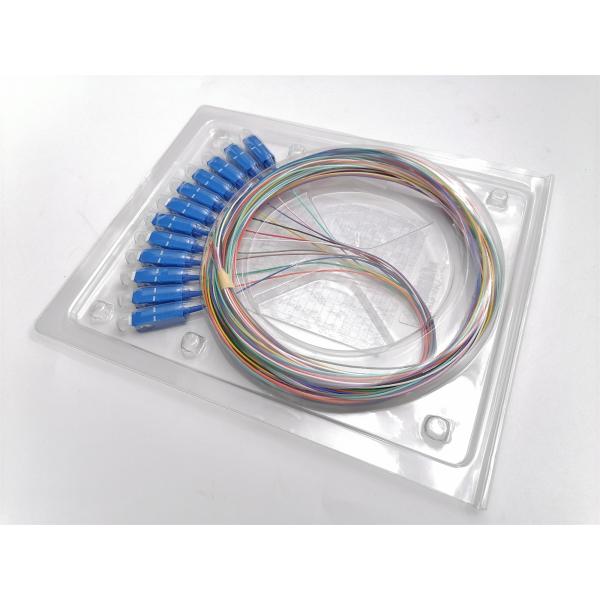

1m (3ft) SC UPC 12 Fibers OS2 Single Mode Unjacketed Color-Coded Fiber Optic Pigtail

Fiber optic pigtails the typical use is to link the fiber optic cable with fiber optic equipment, the fiber optic pigtail with connector side is used to link the equipment, while the other side of the pigtail is melted together with the fiber cable, by melting together the fiber glasses, iCommon types of fiber optic pigtails are usually with 0.9mm fiber cable diameter, and usually installed inside ODF unit. most commonly used types are SC fiber optic pigtail, ST fiber optic pigtail,FC fiber optic pigail, LC fiber optic pigtail ,MT-RJ fiber optic pigtail,SC/APC fiber optic pigtail, FC/APC fiber optic pigtail and E2000 fiber optic pigtail.UNIFIBER offer kinds of pigtails from 1F/4F/6F/8F/12F for options.

Application:

Widely used in CATV, FTTH/FTTX

Telecommunication networks,premise installations

Data processing networks, LAN/WAN network

Features:

Single fiber or Multi-fiber 4/6/8/12 core Optional
Any length is available: 1m,1.5m or other length you required.

Faster connector identification with color-coded pigtail kits.

Tight buffer pigtail for ease of splicing.

SC,LC,FC,ST connector with UPC or APC polished

Zirconia Ceramic Ferrule Optimum IL and RL.

Application:

Parameter Singlemode Fiber Multimode Fiber
PC UPC APC PC
Insertion Loss(dB) ≤0.3 ≤0.2 ≤0.3 ≤0.3
Return Loss(dB) ≥45 ≥50 ≥60 ≥20
Exchangeability(dB) ≤0.2
Plug-pull life(times) ＞1000
Operating temperature(℃) -40~+75
Storage temperature(℃) -45~+80
Fiber model φ0.9mm, φ2.0mm, φ3.0mm

3ft SC UPC 12 Fibers OS2 Unjacketed Fiber Optic Pigtail
