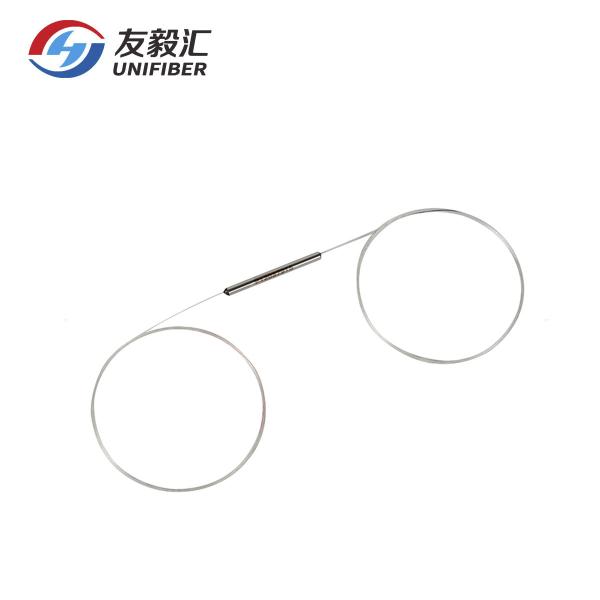

Single Mode 1x2 1310nm 1550nm SSC Fiber Optic Coupler
Single Mode 1x2 1310nm 1550nm SSC Fiber Optic Coupler
Specifications
Brand Name :
UNIFIBER
Model Number :
1x2 1310 or 1550 Single Mode Standard Fiber Optic Coupler (SSC)
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000pcs/day
Delivery Time :
5~7 Business days

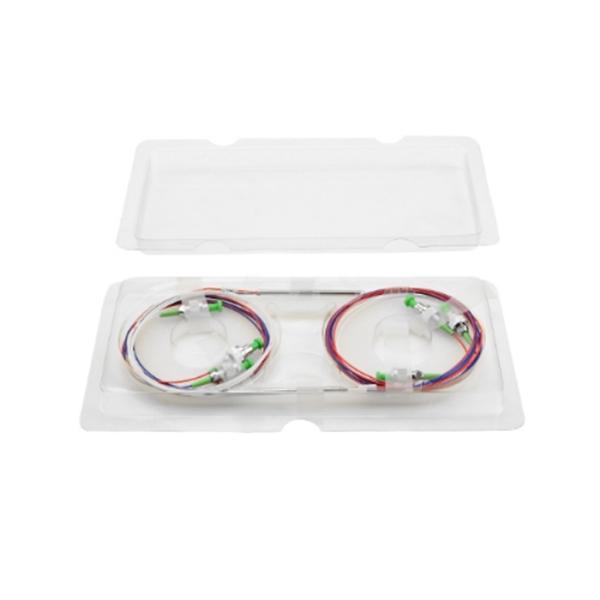

Packaging Details :
Blister case
Product :
1x2 1310 or 1550 Single Mode Standard Fiber Optic Coupler (SSC)
Wavelength :
1310nm or 1550nm
Package :
Steel tube
Size :
Standard size or Mini Size
Coupling Ratio :
50/50,40/60,30/70...5/95,1/99 or Customized
Grade :
P grade or A grade
Connector :
FC,SC,LC,ST or customized
Pigtail Type :
250um Bare Fiber,900um Loose Tube,2.0mm,3.0mm
Fiber :
Corning G.657 A1 fiber
Description

1x2 1310 or 1550 Single Mode Standard Fiber Optic Coupler (SSC)

1310 or 1550 Single Mode Standard Fiber Optic Coupler (SSC) features low excess loss, high stability and reliability. It is widely used for optical fiber communication systems and CATV systems.

Features
Low excess

loss Low PDL

High stability and reliability


Application
CATV
Optical communication systems
Testing instruments

Specifications

Grade
P
A
Parameter
Operating wavelength (nm)
1310 or 1550, others on request
Operating bandwidth (nm)
± 15
Typical excess loss (dB)
0.07
0.1
Insertion loss (dB)
50/50
≤3.4
≤3.6
45/55
≤4.1/3.1
≤4.3/3.3
40/60
≤4.4/2.6
≤4.7/2.8
35/65
≤5.2/2.3
≤5.5/2.5
33/67
≤5.4/2.2
≤5.7/2.3
30/70
≤5.7/1.9
≤6.0/2.0
25/75
≤6.6/1.7
≤7.0/1.8
20/80
≤7.6/1.25
≤8.0/1.35
15/85
≤9.2/1.0
≤9.6/1.2
10/90
9.2~11.0/≤0.65
9.0~11.2/≤0.8
5/95
12.0~14.2 /≤0.4
11.75~14.45/≤0.5
3/97
14.05~16.55/≤0.3
13.75~16.85/≤0.4
2/98
15.7~18.5/≤0.25
15.35~18.85/≤0.35
1/99
18.55~21.5/≤0.2
18.15~22.0/≤0.3
PDL (dB)
≤0.10
≤0.15
Directivity (dB)
≥55
Operating temperature (℃)
-40 ~ +85

Single Mode 1x2 1310nm 1550nm SSC Fiber Optic Coupler
