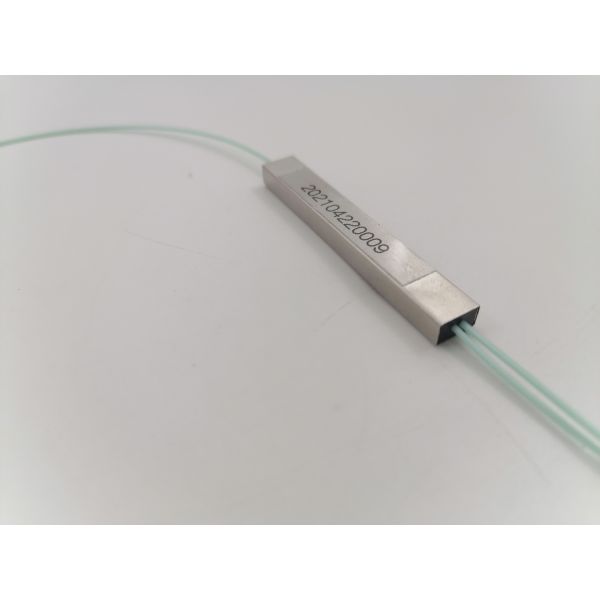

850/1300 50/125um OM3 Multimode PLC Splitter 1x2 Port
850/1300 50/125um OM3 Multimode PLC Splitter 1x2 Port
850/1300 50/125um OM3 Multimode PLC Splitter 1x2 Port
850/1300 50/125um OM3 Multimode PLC Splitter 1x2 Port
850/1300 50/125um OM3 Multimode PLC Splitter 1x2 Port
850/1300 50/125um OM3 Multimode PLC Splitter 1x2 Port
Specifications
Brand Name :
UNIFIBER-OEM
Model Number :
Multimode PLC Splitter
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs/day
Delivery Time :
5~7 Business days
Packaging Details :
Blister Case
Product :
1x2 850/1300 50/125um OM3 Multimode PLC Splitter
Configuration :
1 in 2 out
Package :
Mini steel tube
Fiber Type :
MM 50/125um OM3
Pigtail Type :
900um loose tube
Connector :
Customized
Description

Multimode PLC Splitter is a passive optical device used to split incoming signals into two or more output signals. They’re capable of operating over a broad wavelength range from 650 nm to 1350 nm (Typ. 650nm, 850nm and 1300/1310nm). 62.5/125 and 50/125 (OM1, OM2, OM3 and OM4 fiber) are now available. These multi-mode fiber PLC splitters features wavelength insensitive, mode insensitive, low insertion loss, high stability and reliability

Features

Excellent Environmental Stability
Excellent Mechanical
Good uniformity and low insertion loss
Low Polarization Dependent Loss
Stability Telcordia GR-1221 and GR-1209

Application

Data Center
Multimode Communication Systems
Fiber Sensor Systems

Multimode Fiber Optic PLC Splitter Specifications
Operating Wavelength(nm) 650-1350 (Typ. 850/1310 ± 40); Others on request
Port Configuration 1x2 1x3 1x4 1x6 1x8 1x16
Typical Insertion Loss (dB) 3.4 5.5 6.7 9.0 10.2 13.5
Max Insertion Loss (dB) 3.7 5.8 7.0 9.4 10.5 14.0
Uniformity(dB) ≤0.6 ≤0.8 ≤1.0 ≤1.2 ≤1.5 ≤1.8
PDL(dB) ≤0.1 ≤0.1 ≤0.1 ≤0.1 ≤0.1 ≤0.15
Return Loss(dB) ≥40
Directivity(dB) ≥50
Fiber Type and Jacket OM1/OM2/OM3/OM4 (50/125 or 62.5/125) Multimode Fiber with 900μm Jacket
Working Temperature (°C) -40 ~ +85
Storage Temperature (°C) -40 ~ +85
Package Size: H x W x L (mm) 4×7×50 4×7×50 4×7×55 4x7x60 4x7x55 4x12x60

850/1300 50/125um OM3 Multimode PLC Splitter 1x2 Port
