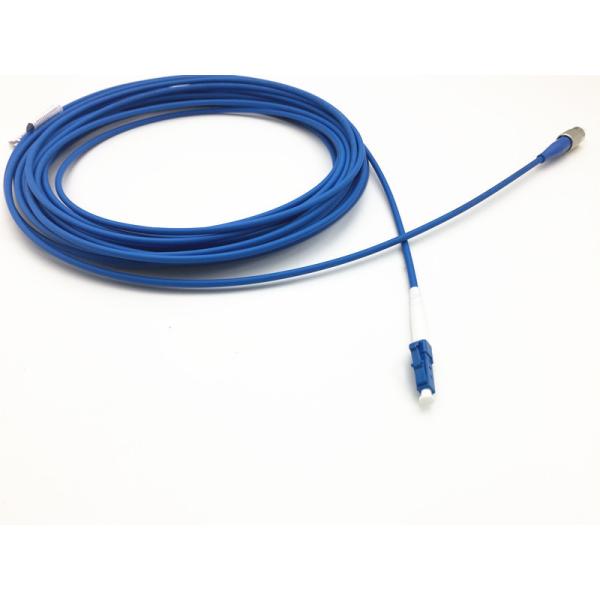

LC-FC Steel Armored Patch Cord Singlemode Simplex 3.0mm OFNP Plenum Rated Jacket
LC-FC Steel Armored Patch Cord Singlemode Simplex 3.0mm OFNP Plenum Rated Jacket
LC-FC Steel Armored Patch Cord Singlemode Simplex 3.0mm OFNP Plenum Rated Jacket
LC-FC Steel Armored Patch Cord Singlemode Simplex 3.0mm OFNP Plenum Rated Jacket
LC-FC Steel Armored Patch Cord Singlemode Simplex 3.0mm OFNP Plenum Rated Jacket
LC-FC Steel Armored Patch Cord Singlemode Simplex 3.0mm OFNP Plenum Rated Jacket
Specifications
Brand Name :
UNIFIBER-OEM
Model Number :
LC-FC
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000pcs/day
Delivery Time :
3-5days
Packaging Details :
PE bag
Connector type :
FC/SC/LC/ST/E2000/MTRJ/MU
Cable diameter :
3.0mm
Fiber Count :
Simplex or Duplex
Cable jacket :
PVC/LSZH
Fiber :
SM or MM
Color :
Blue/Gray/Yellow/Aqua
Description

LC-FC steel armored patch cord singlemode simplex 3.0mm OFNP Plenum Rated jacket with extra strong protection

Indoor Armored Patch Cables will allow you to protect your critical and essential fiber optic network with a crush-resistant and rodent-resistant jacket. They are a perfect solution for installs that require extra protection. The jacket contains steel armor, an aramid yarn strength member all while maintaining great flexibility. Armored fiber optic patch cables will not get damaged even if stepped by an adult and they are rodent-resistant.This allows for the cable to remain extremely flexible while also being crush and rodent resistant. They come available in OM1, OM3, OM4 and Singlemode and we can provide any standard fiber optic connector type such as LC, SC, and ST.

Feature
Low insertion loss and high return loss

excellent stability and reliability

Stainless steel armor provides good protection against physical damage.
Light weight and flexible with about a 20D (mm) dynamic minimum bend radius, easy to install.


Application

FTTX, FTTB, FTTC
Optical fiber communication system

Fiber LAN, WAN
Testing equipment
CATV

Parameters:

Connector
SC,FC,LC,ST,MU,E2000
Polishing
SM/UPC
MM/PC
SM/APC
Insertion Loss(max)
≤0.30dB
≤0.3dB
≤0.30dB
Return Loss(min)
≥50 dB
≥35 dB
≥60 dB
Tensile Strength(N)
Longterm 100;short term:200
Crush Resistance(N/100mm)
Longterm 3000;short term:5000
Durability
<0.20 dB typical change, 1000 matings
Repeatability
≤0.1dB
Storage , Operating Temperature [°C]
-40~+85
