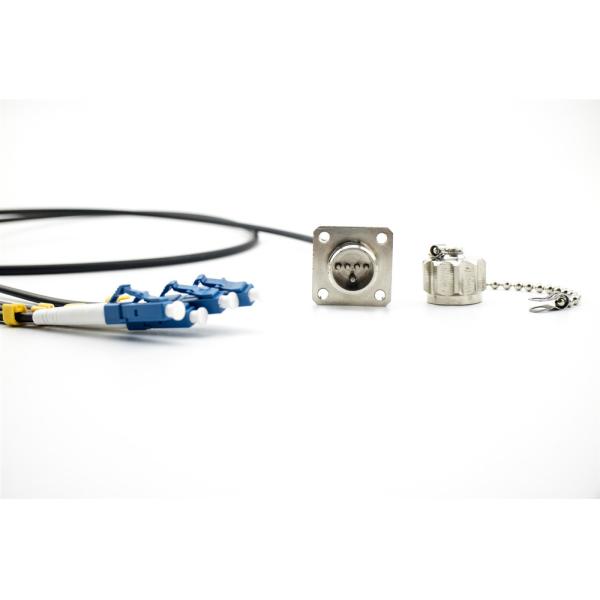

4 Core Fiber Cable Assembly ODC Plug / Socket To LC/UPC For Railway Signal Control
4 Core Fiber Cable Assembly ODC Plug / Socket To LC/UPC For Railway Signal Control
4 Core Fiber Cable Assembly ODC Plug / Socket To LC/UPC For Railway Signal Control
4 Core Fiber Cable Assembly ODC Plug / Socket To LC/UPC For Railway Signal Control
4 Core Fiber Cable Assembly ODC Plug / Socket To LC/UPC For Railway Signal Control
4 Core Fiber Cable Assembly ODC Plug / Socket To LC/UPC For Railway Signal Control
Specifications
Brand Name :
UNIFIBER
Model Number :
ODC-4
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000pcs/day
Delivery Time :
3-5days
Packaging Details :
PE bag
Connector :
Waterproof ODC
Fiber count :
2/4
Jacket :
Blue/black TPU
Waterproof grade :
IP68
Fiber mode :
SM/MM
Application :
FTTA
Description

4 core ODC plug/socket to LC/UPC single mode waterproof patch cord for Intelligent substation/Railway signal control

ODC fiber optic patch cables with extremely robust outdoor connector are designed to withstand harsh environment such as mechanical loads, high thermal exposure, and demanding environments like rain, salt and splash water. It is known for their ease of installation and highest operation safety due to the robust and ruggedized design. ODC military grade cables are installation-friendly for fixed or mobile applications and transmit reliably data over long distances under severe environmental conditions.

Application

Far transmission wireless base station.

Video Surveillance system

Optical fiber sensor.

Railway signal control

Intelligent substation

Outdoor & Military communication equipment connection.

Oil field, mine communication connection.

Features

High shock, vibration, and mechanical resistance

IP68 protection, salt-mist proof and EMI protection

Robust fiber-optic connector for 2 and 4 channels with screwed mating mechanism

Easy, reliable and cost-effective installation.

Broad temperature range and wide range of indoor and outdoor cables

Parameters

Fiber Core 2,4
Mode Singlemode Multimode
Operating Wavelength(nm) 1310/1550 850/1310
Polishment UPC APC UPC
Insertion Loss(Max.dB) 0.7 0.6
Return Loss(Min.dB) 55 60 35
Mating times 500 Min
Durability(Max.dB) 0.2
Reaptability(Max.dB) 0.5
Operating Temperature(℃) -40~+85
Storage Temperature(℃) -40~+85

4 Core Fiber Cable Assembly ODC Plug / Socket To LC/UPC For Railway Signal Control4 Core Fiber Cable Assembly ODC Plug / Socket To LC/UPC For Railway Signal Control
