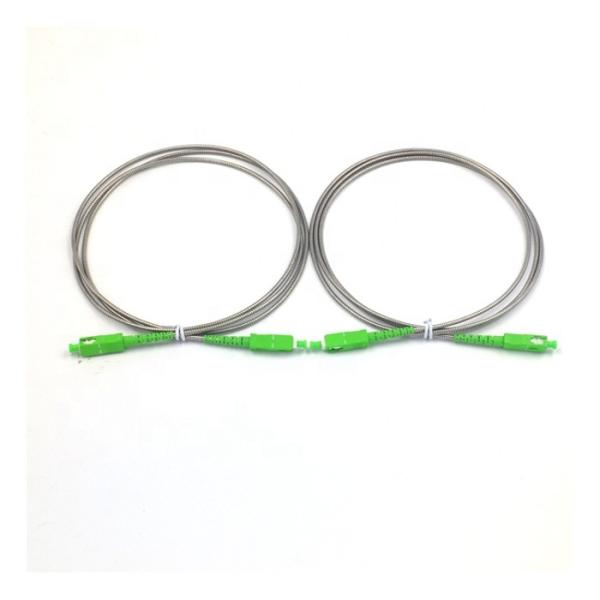

High Tensile Fiber Optical Patch Cord SC/APC To SC/APC With 3.0mm Stainless Steel Tube
High Tensile Fiber Optical Patch Cord SC/APC To SC/APC With 3.0mm Stainless Steel Tube
High Tensile Fiber Optical Patch Cord SC/APC To SC/APC With 3.0mm Stainless Steel Tube
High Tensile Fiber Optical Patch Cord SC/APC To SC/APC With 3.0mm Stainless Steel Tube
High Tensile Fiber Optical Patch Cord SC/APC To SC/APC With 3.0mm Stainless Steel Tube
High Tensile Fiber Optical Patch Cord SC/APC To SC/APC With 3.0mm Stainless Steel Tube
Specifications
Brand Name :
UNIFIBER-OEM
Model Number :
ASCASCA
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs/day
Delivery Time :
3~5 business days
Packaging Details :
PE bag
Connector :
SC LC FC ST or specify
Jacket :
LSZH+Stainless Steel
OD :
3.0mm
Fiber :
G657A
Description

High performance SC/APC to SC/APC single mode armored fiber optical patch cord with 3.0mm stainless steel tube

Armored patch cord can be laid in all kinds of environmental extremes. It is used without protection tube which saves space and is quite convenient for maintenance. Also it has the construction including stainless steel tube which protects optical fiber and provide better security for the whole system.


Features:
Protection of stainless steel tube with small caliber.
Avoid the damage of torsion.
High tensile coefficient and stress coefficient.
Convenient for application, highly security.
Application without damage to cable.
Manufacture without damage to cable.
Cost cutting for maintenance.

Aplications:
FTTH
Area network
Test equipment
National defence
FO sensor
Light communication system
Common antenna TV system

Specification

Parameter Unit ST, MU
SM MM
PC UPC PC
Insertion loss(typical) dB ≤0.3 ≤0.2 ≤0.2
Return loss dB ≥45 ≥50 ≥30
Operating wavelength nm 1310, 1510
Exchangeability dB ≤0.2
Vibration dB ≤0.2
Operating temperature °C -40~75
Storage temperature °C -45~85
Cable diameter mm φ3.0, φ2.0, φ0.9

High Tensile Fiber Optical Patch Cord SC/APC To SC/APC With 3.0mm Stainless Steel Tube
