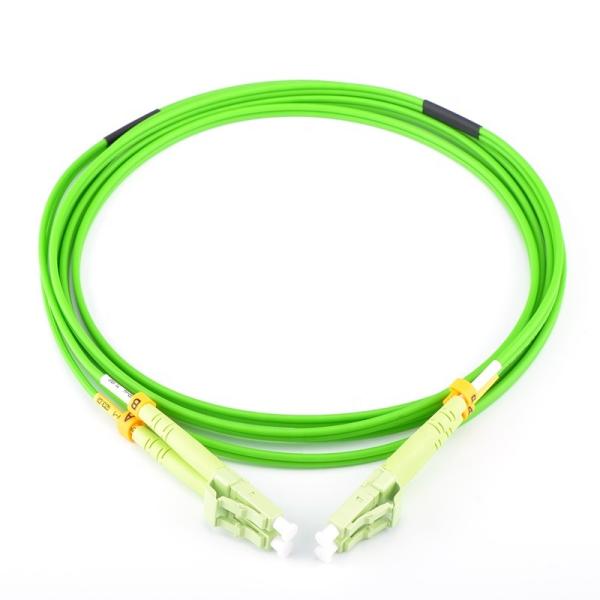

LC To LC Fiber Optic Patch Cables 100Gb Duplex Multimode 50/125 OM5 Premium LSZH
LC To LC Fiber Optic Patch Cables 100Gb Duplex Multimode 50/125 OM5 Premium LSZH
LC To LC Fiber Optic Patch Cables 100Gb Duplex Multimode 50/125 OM5 Premium LSZH
LC To LC Fiber Optic Patch Cables 100Gb Duplex Multimode 50/125 OM5 Premium LSZH
LC To LC Fiber Optic Patch Cables 100Gb Duplex Multimode 50/125 OM5 Premium LSZH
LC To LC Fiber Optic Patch Cables 100Gb Duplex Multimode 50/125 OM5 Premium LSZH
Specifications
Brand Name :
UNIFIBER
Model Number :
LC-LC LC-SC ST-ST
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
Western Union, T/T
Supply Ability :
10000pcs/day
Delivery Time :
3-5days
Packaging Details :
Blister case
Connector :
LC SC FC ST
Fiber Count :
Simplex or Duplex
Cable Jacket :
PVC/LSZH/OFNR/OFNP
Cable Diameter :
2.0 or 3.0mm
Fiber Mode :
SM/MM/OM3/OM4/OM5
Cable length :
1/3/5...or Customized
Description

100Gb Duplex Multimode 50/125 OM5 premium/LSZH Fiber Patch Cable LC to LC 1/3/5/7 meters,data center HD cabling solution

OM5 fiber optic patch cables, have been designed to specifically handle high-speed data center applications with using two fibers to transmit from 40GBs up to 100GBs. With the emergence of SWDM (Shortwave Wavelength Division Multiplexing) applications in data centers, OM5 fiber cables provide optimal support and performance at higher speeds. Even with the high speed, OM5 fiber cables are backward compatible with existing OM4 applications and networks.

APPLICATION
Data Center Cabling
Telecommunications
CATV, LAN, MAN, WAN, Test &Measurement
Military industry
Medical

FEATURES
Good in repeatability
Good in exchange

Low insertion loss and back reflection loss
Excellent mechanical endurance

Parameters

Mode Single mode Multimode
Polish UPC APC PC
Insertion Loss ≤0.30dB ≤0.20dB ≤0.20dB
Return Loss ≥50dB ≥60dB ≥30dB
Test Wavelength 1310/1550nm 850/1310nm
Durability(500 Matings) ≤0.2dB
Operating Temperature -40~+60
Storage Temperature -45~+85
Fire Resistant IEC 60794-2-30
Standards-Compliant ROHS,IEC and GR-326

Fiber type Single mode: 9/125-G652D 9/125-G655 9/125-G657A,G657A2 9/125-G657B3
Multimode: 50/125-OM2 62.5/125-OM1 50/125-OM3 50/125-OM4 50/125-OM5
Fiber Brand YOFC, Corning, Sumitomo, Fujikura
Connector SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC
Cord type Simplex ,Duplex
Cable diameter 0.9mm ,1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 4.1mm
Cable jacket PVC, OFNR, LSZH, OFNP
length(M) 0.5m,1m,2m,5m,10m,25m,50m,100m…Customized

LC To LC Fiber Optic Patch Cables 100Gb Duplex Multimode 50/125 OM5 Premium LSZH
