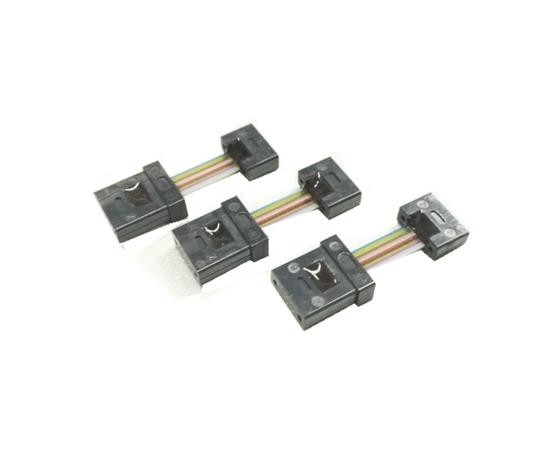

MT-MT Ferrule Optical Fiber Patch Cord 8F/12F MPO Ferrule With Bare Ribbon Fiber Jumper
MT-MT Ferrule Optical Fiber Patch Cord 8F/12F MPO Ferrule With Bare Ribbon Fiber Jumper
MT-MT Ferrule Optical Fiber Patch Cord 8F/12F MPO Ferrule With Bare Ribbon Fiber Jumper
MT-MT Ferrule Optical Fiber Patch Cord 8F/12F MPO Ferrule With Bare Ribbon Fiber Jumper
Specifications
Brand Name :
UNIFIBER or OEM
Model Number :
MPO/MTP
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs/day
Delivery Time :
3-5days
Packaging Details :
PE bag
Connector :
MT ferrule, MPO ferrule
Fiber mode :
MM 50/125 OM3
Fiber count :
8f, 12f, 24f
Length :
0.1m (Customized)
Application :
Telecom/network
Product name :
MPO/MTP Patch Cord
Description

MT-MT Ferrule high precision patch cord 8F/12F MPO ferrule with bare ribbon fiber jumper for MT/FA module

UNIFIBER provides a full line of high performance MTP /MPO fiber cable assembly, they are designed for high-density backplane and Printed Circuit Board (PCB) applications in data and telecommunication systems. With the based on single ferrule MT technology, our MTP /MPO fiber cable assembly can be up to single ferrule with 24 fiber cores connections.

Application
QSFP(quad small form-factor pluggable)；
SFP+active optical cables；
Parallel light optical transceiver module；
Super computers；
Communication；
Military applications；
Data centers.


Feature
Connector A: MT ferrule ,MTP/MPO;
Connector B: MT/Prizm/FA/PZ/Laser-cleave;
Fiber shape: ribbon ;
Fiber count: 12
Fiber type: OM3, OM4; OM1, OM2;OS1,OS2;
Length: 20~100mm, and customized length available;
Length tolerance: +300um/-0um.

Specification
Item
SM Standard
SM Low Loss
MM Standard
MM Low Loss
Insertion Loss
Typical :0.25dB
Typical:0.10dB
Typical:0.2dB
Typical:0.8dB
Maxium:0.750dB
Maxium:0.35dB
Maxium:0.5dB
Maxium:0.35dB
Return Loss
≤60dB
≤60dB
≤25dB
≤25dB
Durability
≤0.2dB change,500matings
≤0.2dB change,500matings
≤0.2dB change,1000matings
≤0.2dB change,1000matings
Operating Temperature
-40~75℃
Ferrule Type
4/8/12/16/24/32
8/12/14
4/8/12/16/24/32
8/12/14

MT-MT Ferrule Optical Fiber Patch Cord 8F/12F MPO Ferrule With Bare Ribbon Fiber JumperMT-MT Ferrule Optical Fiber Patch Cord 8F/12F MPO Ferrule With Bare Ribbon Fiber Jumper
