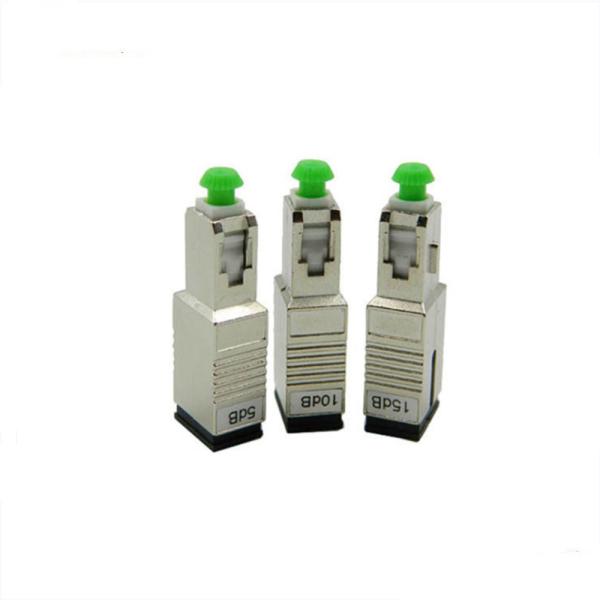

SC/APC Singlemode Fixed Fiber Optic Attenuator, Male-Female, with precise attenuation values of 5dB/10dB/15dB
SC/APC Singlemode Fixed Fiber Optic Attenuator, Male-Female, with precise attenuation values of 5dB/10dB/15dB
SC/APC Singlemode Fixed Fiber Optic Attenuator, Male-Female, with precise attenuation values of 5dB/10dB/15dB
SC/APC Singlemode Fixed Fiber Optic Attenuator, Male-Female, with precise attenuation values of 5dB/10dB/15dB
SC/APC Singlemode Fixed Fiber Optic Attenuator, Male-Female, with precise attenuation values of 5dB/10dB/15dB
SC/APC Singlemode Fixed Fiber Optic Attenuator, Male-Female, with precise attenuation values of 5dB/10dB/15dB
Specifications
Brand Name :
UNIFIBER-OEM
Model Number :
UNFSCA
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000pcs/day
Delivery Time :
3-5days
Packaging Details :
PE bag
Attenuation range :
1~30dB
Fiber Connector :
LC/SC/FC/ST Male to Female
Polish type :
APC or UPC
Operation wavelength :
1240 ~ 1620nm (Dual 1310/1550nm)
Return Loss :
UPC >55dB APC >65dB
Attenuation Accura :
8 ~ 12 dB ±0.7dB
Max Optical Input Power :
200mW
Ferrule Type :
Zirconia Ceramic
Description

SC/APC Singlemode Fixed Fiber Optic Attenuator, Male-Female, with precise attenuation values of 5dB/10dB/15dB

Optical attenuator is a passive device used to reduce the power level of an optical signal. It is generally used in single-mode long-haul applications to prevent optical overload at the receiver. Optical attenuator is widely used in CWDM&DWDM, CATV systems, data center networks, test equipment and other high power applications.

Features

Precise attenuation values

Low PDL & insertion loss

Precisional reflection polishing

Attenuation levels ranging from 1dB to 25dB
1310nm, 1550nm and 1310/1550nm dual wave lengths

High-power light source durability

​ Application
Passive optical networks;
CATV Fiber Optic Sensor;
Local Area Networks(LANs);
Optical Fiber Communication Network;
Data Transmission Network;
Optic Instrumentation;
Testing instrumentation.

Specification
Attenuation Range
0-25dB
Attenuation Accuracy
±0.5dB(1dB-10dB)
±1.0dB(11dB-25dB)
Available Wavelengths
1310nm,1550nm,1310&1550nm
Wavelength Dependence
<0.3dB Change in insertion loss for 1310-1550nm
Retuen Loss
≥55dB(UPC)
≥65dB(APC)
Polarization Dependent Loss
≤0.2dB
Temperature Range
-40-80°C(≤0.2dB in insertion loss)
Humidity Range
±0.2dB Change in 10% to 90% relative Humidity Range
Vibration
≤0.1dB Change between 10Hz to 55Hz
Drop
±0.2dB after 8 drops from 1.8meters onto a hard surface
Maximum Optical Input Power
200mW

SC/APC Singlemode Fixed Fiber Optic Attenuator, Male-Female, with precise attenuation values of 5dB/10dB/15dBSC/APC Singlemode Fixed Fiber Optic Attenuator, Male-Female, with precise attenuation values of 5dB/10dB/15dBSC/APC Singlemode Fixed Fiber Optic Attenuator, Male-Female, with precise attenuation values of 5dB/10dB/15dB
