90 Degree Angle Boot Fiber Optic Patch Cable OS2 9/125um High Density Cabling Solution
90 Degree Angle Boot Fiber Optic Patch Cable OS2 9/125um High Density Cabling Solution
90 Degree Angle Boot Fiber Optic Patch Cable OS2 9/125um High Density Cabling Solution
90 Degree Angle Boot Fiber Optic Patch Cable OS2 9/125um High Density Cabling Solution
90 Degree Angle Boot Fiber Optic Patch Cable OS2 9/125um High Density Cabling Solution
90 Degree Angle Boot Fiber Optic Patch Cable OS2 9/125um High Density Cabling Solution
Specifications
Brand Name :
UNIFIBER
Model Number :
LCA-SCA
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5kpcs/day
Delivery Time :
3~5 business days
Packaging Details :
Plastic bag or customer specifiy
Bend angle :
90° or 45°
Boot Diameter :
OD 2.0 or 3.0mm
Connectors :
LC SC FC ST MPO DIN D4
Fiber :
SM or MM
Jacket :
PVC/LSZH/OFNR
Diameter :
0.9/2.0/3.0mm
Description

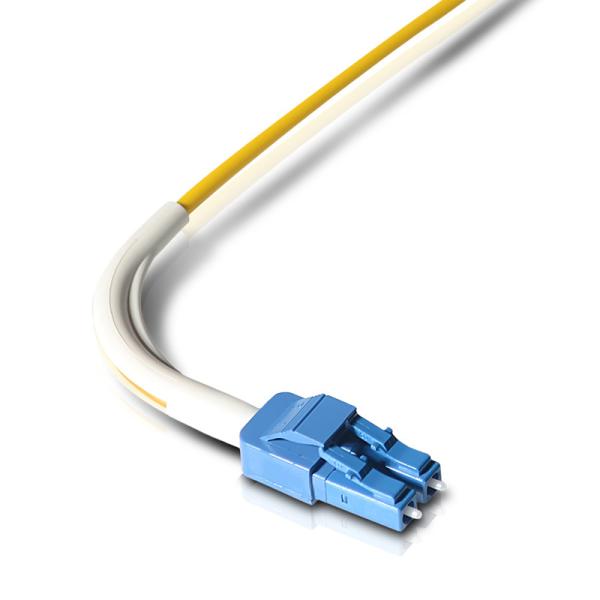

LC/SC 90 Degree Angle Boot Fiber Optic Patch Cord OS2 9/125um Single mode data center high density cabling solution

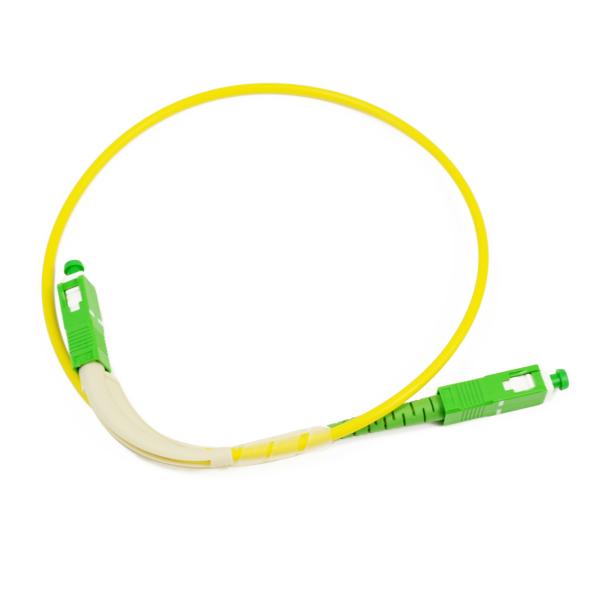

90 degree boot fiber optic patch cables have the same performance as regular straight boot patch cables. The only difference is that they have 90 degree rubber boot instead of a straight one. All common type of connectors are available with 90 degree boot including SC, ST, LC E2000, FC etc. Unifiber manufactures a whole line of fiber optic patch cords.

Application
Data Center High density cabling

Telecommunications
CATV, LAN, MAN, WAN, Test &Measurement

FEATURES
Low insertion loss and high reflection loss
Ferrule end surface pre-domed
Excellent mechanical endurance
Good in repeatability
Good in exchange

Parameters Standard Fiber Cable Assemblies
Fiber Type SM(G.652/G.657A) MM(OM1/OM2/OM3/OM4/OM5)
Jacket Materials LSZH/OFNR/PVC
Connector Type SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials Ceramic
Testing Wavelengths 1310±30/1550±30nm 850±30/1300±30nm
Insertion Losss(dB)
TIA/EIA-455-107		 ≤ 0.3dB
(PC/UPC/APC)		 ≤ 0.3dB
(PC/UPC)
Return Loss(dB)
TIA/EIA-455-107		 ≥45dB(PC/UPC)
≥55dB(APC)		 ≥35dB(PC/UPC)
Exchangeability ≤ 0.25dB
Cable Assemblies Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C) -10~ + 70
Storage Temperature (° C) -40 ~ +85
Package 1unit/bag
*All values specified are with connectors.

90 Degree Angle Boot Fiber Optic Patch Cable OS2 9/125um High Density Cabling Solution90 Degree Angle Boot Fiber Optic Patch Cable OS2 9/125um High Density Cabling Solution
