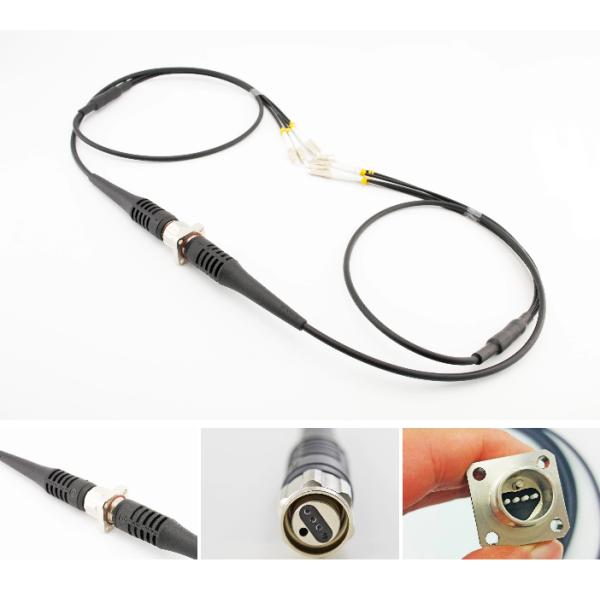

IP68 Waterproof Outdoor Cable Assembly ODC To LC 2 4 Core Singlemode G657A
IP68 Waterproof Outdoor Cable Assembly ODC To LC 2 4 Core Singlemode G657A
IP68 Waterproof Outdoor Cable Assembly ODC To LC 2 4 Core Singlemode G657A
IP68 Waterproof Outdoor Cable Assembly ODC To LC 2 4 Core Singlemode G657A
IP68 Waterproof Outdoor Cable Assembly ODC To LC 2 4 Core Singlemode G657A
IP68 Waterproof Outdoor Cable Assembly ODC To LC 2 4 Core Singlemode G657A
IP68 Waterproof Outdoor Cable Assembly ODC To LC 2 4 Core Singlemode G657A
IP68 Waterproof Outdoor Cable Assembly ODC To LC 2 4 Core Singlemode G657A
Specifications
Brand Name :
UNIFIBER
Model Number :
ODC-2/4
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000pcs/day
Delivery Time :
3-5days
Packaging Details :
PE bag
Connector :
Waterproof ODC
Fiber count :
2/4
Jacket :
Blue/black TPU
Waterproof grade :
IP68
Fiber mode :
SM/MM
Application :
FTTA
Fiber :
G657A
Cable Diameter :
5.0/7.0mm
Description

IP68 Waterproof ODC to LC 2 core or 4 core outdoor cable assembly,singlemode G657A 5.0/7.0mm GYFJH black LSZH/TPU

ODC connectors are designed for the fiber to antenna (FTTA) applications. The ODC product range incorporates precision-machined rugged brass housings with two or four optical terminations in both single mode and multimode fibers. The environmentally sealed, fixed and free connectors are supported by a range of highly crush resistant, high tensile strength “tactical” style cables.ODC fiber optic connector can withstand harsh environmental conditions when being used in outdoor applications. They are used for data and telecommunications in mobile radio, process, utility and traffic automation.


Features

2fibers,4fibers,singlemode or multimode
Compact design with 2×1.25mm ferrules
Built-in socket with square or hexagonal flange
Extension connector for cable chaining
Screwed locking mechanism
Easy and safe installation

Water proof,dust proof and corrosion resistant
Water proof protection caps


Application

Naval and ship building
Surveillance systems
Oil field, mine communication connection
Military communication equipment

Parameters

Item
Parameter
Connector Type
ODC , LC/FC/SC/ST
Fiber Type
Single mode 1310/1550 or multimode 850/1300
Insertion Loss
SM ≤0.2dB MM ≤0.2dB
Return Loss
SM ≥50dB MM ≥35dB
Repeatability
≤0.1
Interchangeability
≤0.2dB
Durability
≤0.2dB
Fiber Length
1m ,2m,3m .....any length for optional
Length and tolerance
+10cm
Operating Temperature
-45~85℃
Storage Temperature
-45~85℃

IP68 Waterproof Outdoor Cable Assembly ODC To LC 2 4 Core Singlemode G657A
