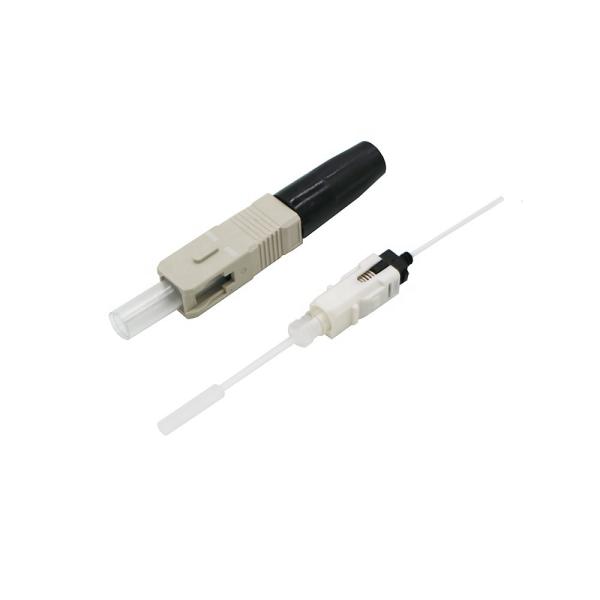

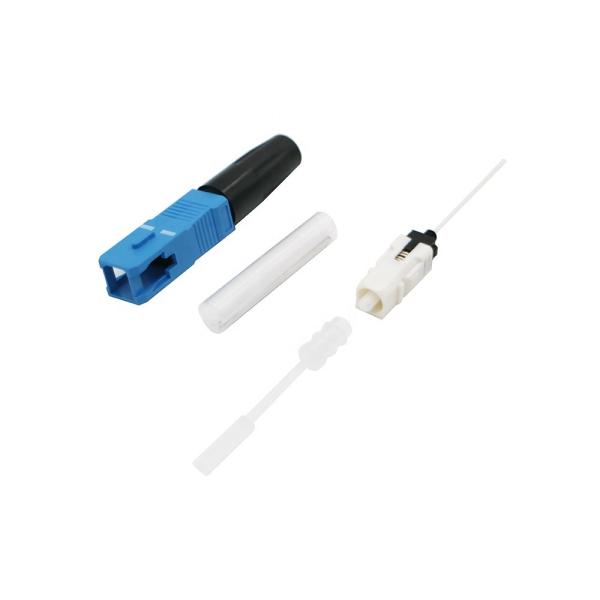

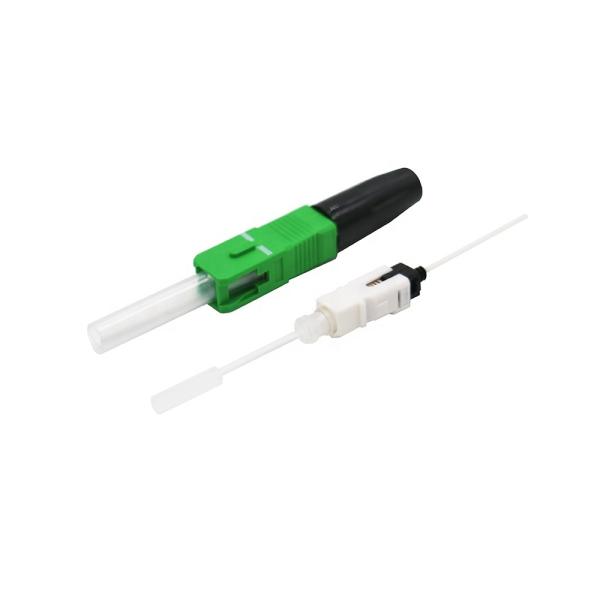

Indoor Hot Melt SC/APC FTTH Fiber Optic Quick Connector
Indoor Hot Melt SC/APC FTTH Fiber Optic Quick Connector
Indoor Hot Melt SC/APC FTTH Fiber Optic Quick Connector
Indoor Hot Melt SC/APC FTTH Fiber Optic Quick Connector
Indoor Hot Melt SC/APC FTTH Fiber Optic Quick Connector
Indoor Hot Melt SC/APC FTTH Fiber Optic Quick Connector
Specifications
Brand Name :
UNIFIBER-OEM
Model Number :
SC Fusion Splice-on Connector
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000pcs/day
Delivery Time :
3-5days
Packaging Details :
blister case
Connector type :
SC/APC
Color :
Green
Durability :
>500 times
Operation Temperature :
-40~+75°C
Product :
FTTH Hot Melt Connector, SC Fusion Splice-on Connector
Applicable for :
0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable
Description

FTTH Hot Melt Connector, SC Fusion Splice-on Connector

Fusion Splice-on Connector is actually an optical fiber fusion, however the welding point is in the inner end of connector, which makes it no necessary for extra protection equipment, such as fiber protection plate(optical fiber splice tray), optical fiber terminal box, optical fiber distribution frame, after it finished splice fusion.The factory pre-polished ferrule eliminates the need for polishing, adhesives, and crimping in the field, which minimizes the potential for operator error and expensive connector scrap.Compared to mechanical optical fast connector, this new practical connector save V-groove mechanical connector maintenance and can improve the span life of welding point of connector and reduce maintenance cost.

Features
Easily installed, Quick and easy fiber termination in the field.
Fast connecting and repeat, No special tools needed when installed.
Low insertion loss and High return loss
Reliable, durability over 500 times mating
Low environmental sensitivity, adopt to complex environment
No epoxy and polishing required, No special tools needed when installed.
Reliable, durability over 500 times mating

Applications
FTTH & FTTx;
Passive Optical Networks;
Broadband, CATV.
ITEM
Technical Parameters
Applicable for
Drop cable / Indoor cable
0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable
Optical fiber diameter
SM(9/125), MM(50/125, 62.5/125)
125μm ( 657A & 657B )
Tight buffer diameter
250μm
Fiber mode
Single mode
Operation time
About 100s(no fiber cut)
Insert loss
≤ 0.3dB(1310nm & 1550nm)
Return loss
> 50db(PC), > 55db(UPC), > 65db(APC)
Fastening strength of naked fiber
>5 N
Fastening strength of naked fiber holder
>10 N
Tensile strength
>50 N
Using temperature
-40~+75°C
On-line tensile strength (20 N)
IL ≤ 0.5dB RL ≤ 5dB
Mechanical durability (500 times)
IL ≤ 0.5dB RL ≤ 5dB
Drop-off test (drop-off height 4m,once per direction, totally 3 times)
IL ≤ 0.5dB RL ≤ 5dB

Indoor Hot Melt SC/APC FTTH Fiber Optic Quick ConnectorIndoor Hot Melt SC/APC FTTH Fiber Optic Quick ConnectorIndoor Hot Melt SC/APC FTTH Fiber Optic Quick Connector
