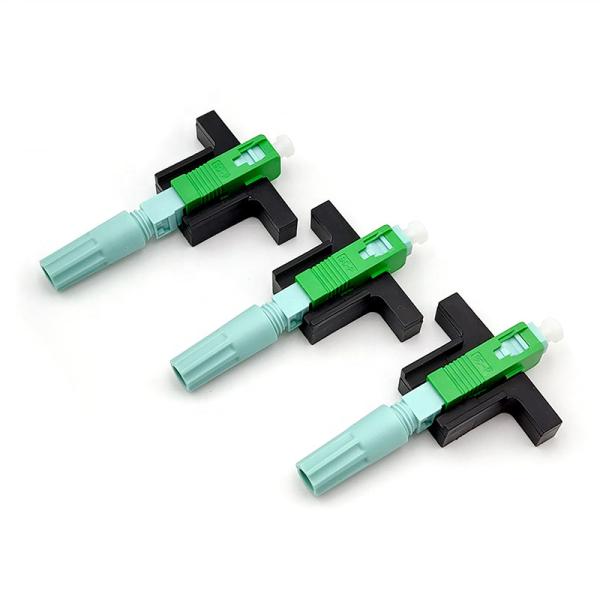

Mechanical Splice FTTH SC/APC Fiber Optic Pigtail Connector
Mechanical Splice FTTH SC/APC Fiber Optic Pigtail Connector
Mechanical Splice FTTH SC/APC Fiber Optic Pigtail Connector
Mechanical Splice FTTH SC/APC Fiber Optic Pigtail Connector
Mechanical Splice FTTH SC/APC Fiber Optic Pigtail Connector
Mechanical Splice FTTH SC/APC Fiber Optic Pigtail Connector
Mechanical Splice FTTH SC/APC Fiber Optic Pigtail Connector
Mechanical Splice FTTH SC/APC Fiber Optic Pigtail Connector
Specifications
Brand Name :
UNIFIBER-OEM
Model Number :
Fiber Optic Mechanical Splice FTTH Fast Connector
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000pcs/day
Delivery Time :
3-5days
Packaging Details :
blister case
Connector type :
SC/APC
Color :
Green
Durability :
>500 times
Operation Temperature :
-40~+75°C
Product :
Fiber Optic Mechanical Splice FTTH Fast Connector
Applicable for :
0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable
Description

Fiber Optic Mechanical Splice FTTH Fast Connector, SC Fiber Optic Fast Connector

Field Assembly SC/PC fast connector for FTTH can provide a quick and easy termination of fibers in the field. Options are available for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system removes any requirement for epoxy, adhesives or costly curing ovens and polishing and fibe ederface inspection.

Features
Easily installed, Quick and easy fiber termination in the field.
Fast connecting and repeat, No special tools needed when installed.
Low insertion loss and High return loss
Reliable, durability over 500 times mating
Low environmental sensitivity, adopt to complex environment
No epoxy and polishing required, No special tools needed when installed.
Reliable, durability over 500 times mating

Applications
FTTH & FTTx;
Passive Optical Networks;
Broadband, CATV.
ITEM
Technical Parameters
Applicable for
Drop cable / Indoor cable
0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable
Optical fiber diameter
SM(9/125), MM(50/125, 62.5/125)
125μm ( 657A & 657B )
Tight buffer diameter
250μm
Fiber mode
Single mode
Operation time
About 100s(no fiber cut)
Insert loss
≤ 0.3dB(1310nm & 1550nm)
Return loss
> 50db(PC), > 55db(UPC), > 65db(APC)
Fastening strength of naked fiber
>5 N
Fastening strength of naked fiber holder
>10 N
Tensile strength
>50 N
Using temperature
-40~+75°C
On-line tensile strength (20 N)
IL ≤ 0.5dB RL ≤ 5dB
Mechanical durability (500 times)
IL ≤ 0.5dB RL ≤ 5dB
Drop-off test (drop-off height 4m,once per direction, totally 3 times)
IL ≤ 0.5dB RL ≤ 5dB

Mechanical Splice FTTH SC/APC Fiber Optic Pigtail Connector
