Color Coded SC/UPC Unjacketed 900um Fiber Optic Pigtail
Color Coded SC/UPC Unjacketed 900um Fiber Optic Pigtail
Color Coded SC/UPC Unjacketed 900um Fiber Optic Pigtail
Color Coded SC/UPC Unjacketed 900um Fiber Optic Pigtail
Color Coded SC/UPC Unjacketed 900um Fiber Optic Pigtail
Color Coded SC/UPC Unjacketed 900um Fiber Optic Pigtail
Color Coded SC/UPC Unjacketed 900um Fiber Optic Pigtail
Color Coded SC/UPC Unjacketed 900um Fiber Optic Pigtail
Specifications
Brand Name :
UNIFIBER-OEM
Model Number :
UNFPSCU12
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1000pcs/day
Delivery Time :
3~5 business days
Packaging Details :
Individual package
Pigtail color :
12 colors
Fiber type :
G652D G657A
Length :
1m,1.5m,3m or Customized
Fiber Count :
4/6/8/12 fibers
Connector :
LC SC FC ST
Polish Type :
UPC or APC
Description

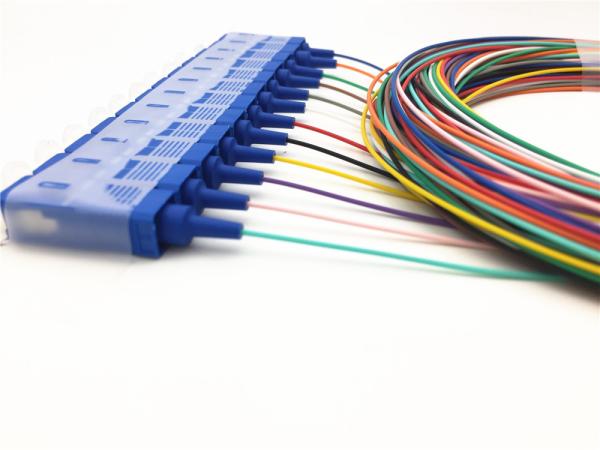

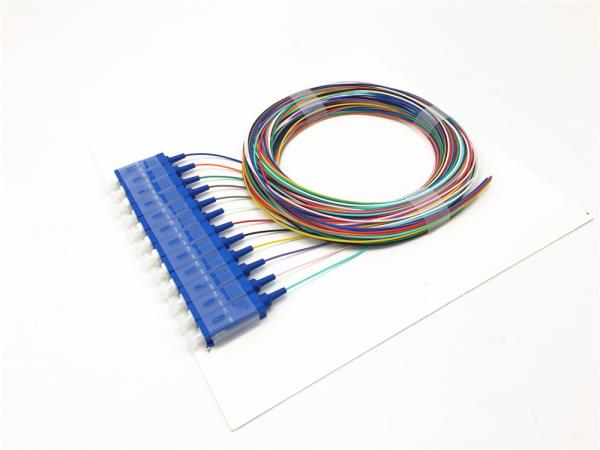

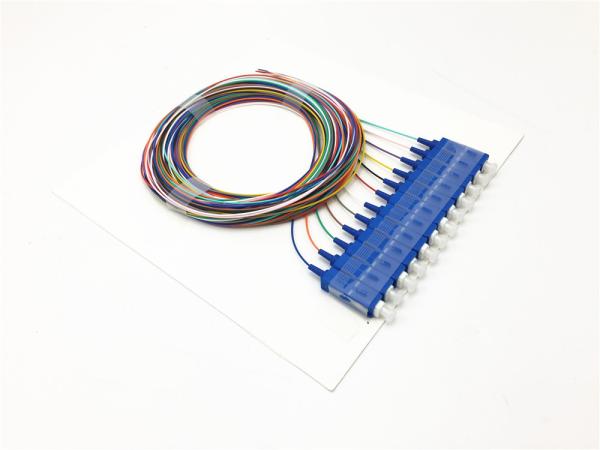

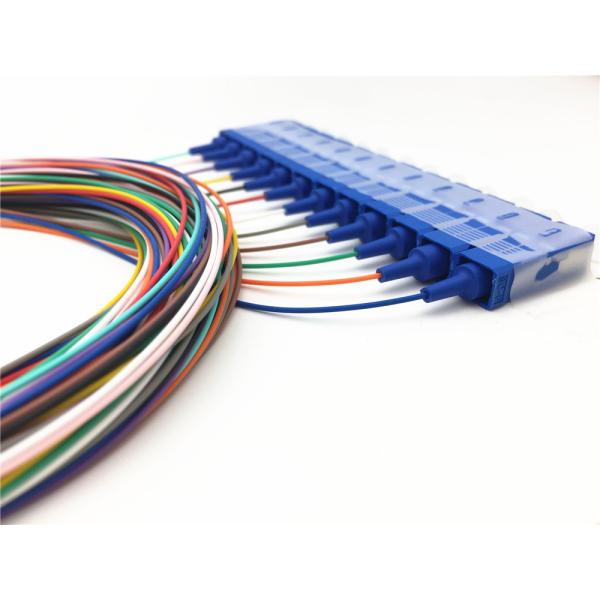

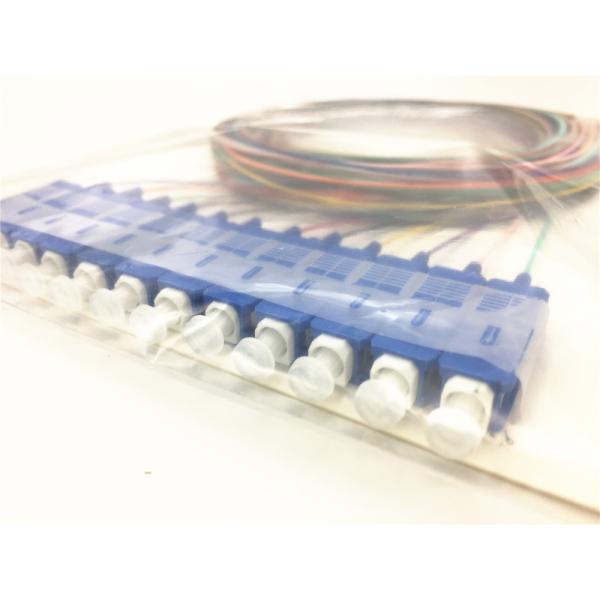

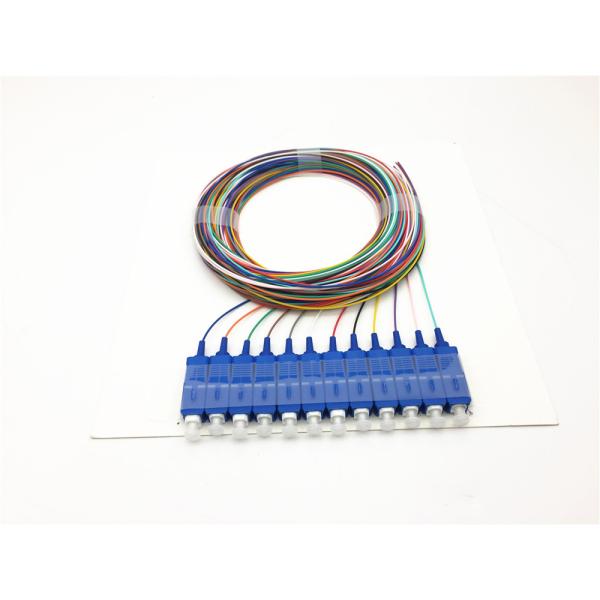

12 Fibers SC/UPC Single-Mode Color-Coded Fiber Optic Pigtail 1.5m 3m, 900um Unjacketed for fiber distribution box
UNIFIBER 250um,900um 4/6/8/12 core multi-fiber fan-out pigtails with different connectors of SC, LC,FC, ST , it come with UPC or APC polish. the pigtails can be singlemode, multimode or OM3, with PVC or LSZH jacket. Widely used in CATV, FTTH/FTTX, telecomunication networks, premise installations, Data processing networks, LAN/WAN network, and more.

FEATURES
Single fiber or Multi-fiber 4/6/8/12 core Optional

Different fiber diameter of 250um bare fiber,0.9mm, 2mm or 3mm

SC,LC,FC,ST connector with UPC or APC polished

Any length is available: 1m,1.5m or other length you required.

Faster connector identification with color-coded pigtail kits.

Tight buffer pigtail for ease of splicing.


APPLICATION
Optical distribution Frame
FHD fiber enclosure
Fiber Distribution Box
Data Center
Telecommunications


Parameters

ParameterSinglemode FiberMultimode Fiber
PCUPCAPCPC
Insertion Loss(dB)≤0.3≤0.2≤0.3≤0.3
Return Loss(dB)≥45≥50≥60≥20
Exchangeability(dB)≤0.2
Plug-pull life(times)＞1000
Operating temperature(℃)-40~+75
Storage temperature(℃)-45~+80
Fiber modelφ0.9mm, φ2.0mm, φ3.0mm






Color Coded SC/UPC Unjacketed 900um Fiber Optic PigtailColor Coded SC/UPC Unjacketed 900um Fiber Optic PigtailColor Coded SC/UPC Unjacketed 900um Fiber Optic Pigtail
