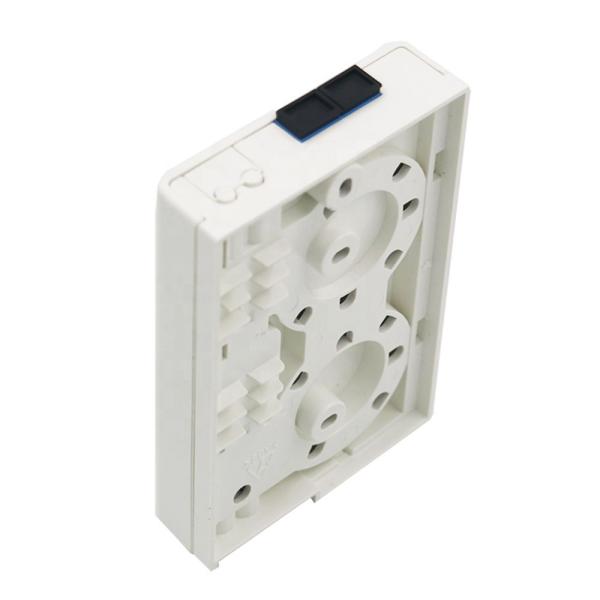

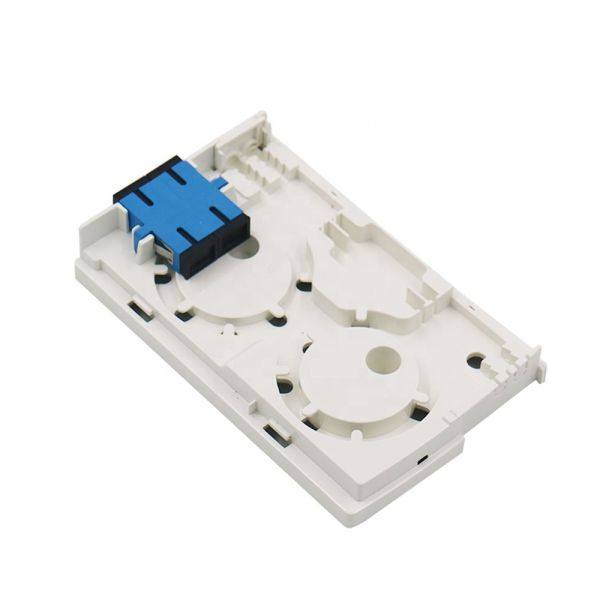

SC/LC Polymer Synthetic Plastic Fiber Optic Cable Termination Box
SC/LC Polymer Synthetic Plastic Fiber Optic Cable Termination Box
SC/LC Polymer Synthetic Plastic Fiber Optic Cable Termination Box
SC/LC Polymer Synthetic Plastic Fiber Optic Cable Termination Box
SC/LC Polymer Synthetic Plastic Fiber Optic Cable Termination Box
SC/LC Polymer Synthetic Plastic Fiber Optic Cable Termination Box
SC/LC Polymer Synthetic Plastic Fiber Optic Cable Termination Box
SC/LC Polymer Synthetic Plastic Fiber Optic Cable Termination Box
Specifications
Brand Name :
UNIFIBER
Model Number :
FTTH-2S
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10000pcs/day
Delivery Time :
3~5 business days
Packaging Details :
Individual package
Material :
Polymer synthetic plastic
Max Capacity :
2/4
Adapter Port :
SC/LC
Color :
White
Application :
Indoor wall mounted
Product name :
Fiber optic distribution box patch cord box
Description

2/4 port SC/LC wall termination faceplate panel with mini splice tray, customized logo and package are avaliable

2 Cores fiber optic access termination box is able to hold up to 2 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box. The optical distribution box is a solution that facilitates the installation of optical termination in branch networks for FTTH environments.


FEATURES
Integrated with splice cassette and cable management rods.
Manage fibers in a reasonable fiber radius condition.
Panel for accommodating SC/LC optical adapters, which must be purchased separately
Easy to maintain and extend the capacity.
Fiber bend radius control more than 40mm.
Suitable for the fusion splice or mechanical splice.
1/2 pigtail can be installed as an option.
Efficient cable management.
Equipment with sealing locks
APPLICATION
Fiber to the home(FTTH)
Fiber to the building(FTTB)
Local area networks
Wide area networks

SC/LC Polymer Synthetic Plastic Fiber Optic Cable Termination BoxSC/LC Polymer Synthetic Plastic Fiber Optic Cable Termination Box

Specification:

Type Socket Panle-B Socket Panle-C Socket Panle-D Socket Panle-E Socket Panle-F
Size 86*86*23 86*96*23 90*120*25 80*100*23 86*86*26
Cable Diameter 3.0mm 3.0mm 3.0mm 3.0mm 3.0mm
Cable port 2 2 2 2 3
Max capacity of splice 2 2 1 4 1

SC/LC Polymer Synthetic Plastic Fiber Optic Cable Termination BoxSC/LC Polymer Synthetic Plastic Fiber Optic Cable Termination Box
