ST 900um Buffer G657A1 3ft Pigtail Fiber Optic Cable
ST 900um Buffer G657A1 3ft Pigtail Fiber Optic Cable
ST 900um Buffer G657A1 3ft Pigtail Fiber Optic Cable
ST 900um Buffer G657A1 3ft Pigtail Fiber Optic Cable
ST 900um Buffer G657A1 3ft Pigtail Fiber Optic Cable
ST 900um Buffer G657A1 3ft Pigtail Fiber Optic Cable
Specifications
Brand Name :
UNIFIBER-OEM
Model Number :
ST
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000pcs/day
Delivery Time :
3~5 business days
Packaging Details :
PE bag
Connector :
LC SC FC ST
Fiber type :
G652D G657A1 G657A2 G657B3
Fiber Count :
1/4/6/8/12 fibers
Pigtail color :
12 colors
Jacket :
PVC/LSZH
Diameter :
0.9mm 1.2mm 1.6mm 2.0mm 3.0mm
Description

Optical fiber pigtail ST, 900um buffer, SM, SX, G657A1, 1m(3ft)

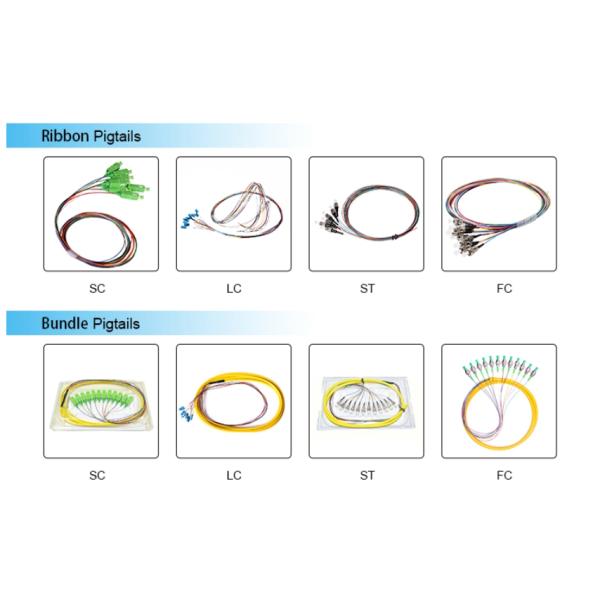

Fiber optic pigtail is made up of a single strand of optical fiber that is protected by a layer of 0.9mm buffer. It has one end pre-terminated with a fiber optic connector, while the other end will connect to the optical fiber from the optical cable. It facilitates the connection between the optical cable to other optical equipment.UNIFIBER build virious of fiber optic pigtails with 1F 4F 6F 8F 12F with standard connectors LC, FC, SC, ST, MU, MTRJ, MPO, D4, DIN, SMA, E2000, ect, UPC or APC polished.

Features
Low Insertion Loss & PDL

Factory-terminated and Tested
Ease of installation
Low environmental sensitivity
High return loss (low amounts of reflection at the interface)

APPLICATION
Access Network
Telecom/CATV Systems
Active device termination
Local Area Networks (LANs)
Test equipment
Data processing networks
Wide Area networks (WANs)
FTTX

Parameters

Parameter Singlemode Fiber Multimode Fiber
PC UPC APC PC
Insertion Loss(dB) ≤0.3 ≤0.2 ≤0.3 ≤0.3
Return Loss(dB) ≥45 ≥50 ≥60 ≥20
Exchangeability(dB) ≤0.2
Plug-pull life(times) ＞1000
Operating temperature(℃) -40~+75
Storage temperature(℃) -45~+80
Fiber model φ0.9mm, φ2.0mm, φ3.0mm

ST 900um Buffer G657A1 3ft Pigtail Fiber Optic Cable
