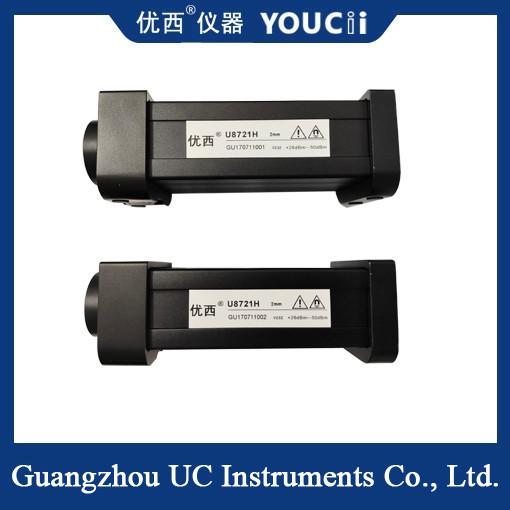

Portable Optical Power Meter Probe With High Accuracy For Scanning
Portable Optical Power Meter Probe With High Accuracy For Scanning
Specifications
Brand Name :
YOUCii
Model Number :
U8721H
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiate price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30pcs / month
Delivery Time :
20 work days
Packaging Details :
Paper Box
Wavelength Accuracy :
± 0.1 nm
Size :
130x65x35 mm
Optical Fiber Type :
Single-mode fiber
Supply Voltage :
100~240V
Power Range :
+5 ~ -85dBm/+15 ~ -75dBm/+25 ~ -65dBm
Optical Power Meter :
Optical Power Meter
Material :
Metal
Description

Portable Optical Power Meter Probe With High Accuracy For Scanning

The high power optical power meter probe is an important part of the optical power meter, which is responsible for receiving and converting the optical signal into a measurable electrical signal.

Peculiarity
High measurement power: The thermoelectric stack type high power optical power meter probe is capable of measuring high laser power and is suitable for the measurement needs of high power lasers.


Wide spectral response range: The probe has a wide spectral response range, which can cover laser measurements from ultraviolet to far infrared.
Large aperture: The probe usually has a larger aperture, which can receive a larger area of light beam, improving the accuracy and stability of the measurement.


High damage threshold: The special coating on the probe surface has a high damage threshold and can withstand high laser power density and energy density to avoid irreversible damage to the probe.

Product model U8721A U8721B U8721C U8721D U8721H
Sensor Element InGaAs
Wavelength Range 850 ~ 1700 nm
Calibration wavelength 850 / 980 / 1310 / 1510~1640nm Continuous calibration
Power Range (dBm) + 5 ~ -65 + 5 ~ -70 + 5 ~ -80 + 25 ~ -60

Power sampling period(Rate)

 100 us(10KHz) 10 us(100KHz)
Application Fiber Type Standard SM and MM
optical Input Interface Supporting bare fiber joint or FC/LC/SC Adapter

Absolute

Uncertainty (accuracy) at reference condition

 ± 4% (1200 nm ~ 1610 nm)

Relative

Uncertainty (accuracy) at reference condition

 ＜ 0.02 dB Typical value
Linearity (power) ≤± 0.06dB (1200 ~ 1610 nm, + 0 ~ -60dBm)
Return Loss ＞40 dB
Communication Interface USB +Trig +Trig +BNC +Trig
calibration period 2 years
Operation Temperature 0 ~ +40℃
Storage Temperature -30 ~ +80℃
Dimensions 52mm H,60 mm W,150 mm D
Weight 1.0 kg

High power optical power meter probes are widely used in many fields

Laser processing: Used in laser cutting, laser marking, laser etching and other fields to measure the power density, power distribution and other parameters of the laser.

Scientific research experiments: In the field of laser physics, optical engineering and other scientific research, used to measure the output characteristics of high-power lasers.

Communication: In the optical communication system, used to measure the intensity and power of the optical signal and other parameters to ensure the stability and reliability of the communication system.
