Ultra-thin PD External Optical Power Probe +10 ~ -45 DBm Φ2 Mm
Ultra-thin PD External Optical Power Probe +10 ~ -45 DBm Φ2 Mm
Specifications
Brand Name :
YOUCii
Model Number :
U8820B+2*U82024
MOQ :
1
Price :
negotiate a price
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
20 pcs+per month
Delivery Time :
21 work days
Packaging Details :
Carton
Application Fiber Type :
Standard SM and MM up to 62.5 um core size
Power Range :
+10 ~ - 45 dBm
Uncertainty (accuracy) at reference condition :
＜ 0.02 dB Typical
Linearity (power) :
≤ ± 0.06 dB (1200 nm ~ 1650 nm, 0 ~ -40dBm)
Return Loss :
＞ 40 dB
Optical Input Interface :
Bare fiber input
Description

Ultra-thin PD external optical power probe +10 ~ -45 dBm φ2 mm


Application advantages
Optical fiber communication test
Optical module development: Measure the optical power at the transmitting end (TX) and the receiving end (RX), and verify the performance of the module.
Optical fiber link loss: By comparing the input/output power of dual channels, the fault point of the link can be quickly located.


Testing of optical passive devices
Coupler/splitter: Tests parameters such as splitting ratio and insertion loss.
Isolator/circulator: Verify isolation and return loss.


Laser processing and medical care
Laser power monitoring: Real-time monitoring of the output power of laser processing equipment to ensure process stability.
Medical optical equipment: such as power calibration of ophthalmic laser treatment devices to ensure treatment safety.


Model #

U82024

Sensor Element

InGaAs

PD Size

φ2 mm

Wavelength Range

900 ~ 1700 nm

Calibration wavelength

1310 / 1550 / 1650nmSegmented calibration

Power Range

+10 ~ - 45 dBm


Power sampling period(rate)

1 ms(1KHz)

Application Fiber Type

Standard SM and MM up to 62.5 um core size

Absolute

Uncertainty (accuracy) at reference condition

± 4% (1200 nm ~ 1650 nm)

Relative

Uncertainty (accuracy) at reference condition

＜ 0.02 dB Typical

Linearity (power)

≤ ± 0.06 dB (1200 nm ~ 1650 nm, 0 ~ -40dBm)

Return Loss

＞ 40 dB

Optical Input Interface

Bare fiber input

Probe front dimension

5.0 mm W x 2.5 mm H x 20.0 mm D

Communication Interface

RS232 / USB

Operation Temperature

0 ～ +40℃

Storage Temperature

-30 ～ +80℃

Recalibration Period

2 Year

Dimensions

5 mm W, 2.5 mm H, 20 mm D

Weight

0.5 kg

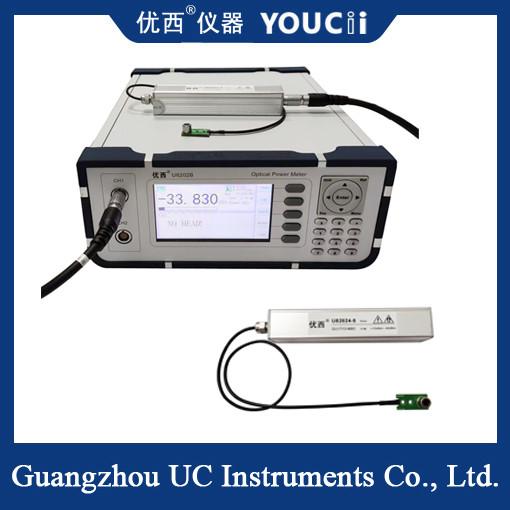

The dual-channel optical power meter, paired with an external ultra-thin PD probe, has become an important testing tool in the fields of optical communication, optoelectronics and laser technology due to its high precision, flexibility and multi-scenario applicability.
