Ultra-thin PD External Probe For Dual-channel Optical Power Meter
Ultra-thin PD External Probe For Dual-channel Optical Power Meter
Specifications
Brand Name :
YOUCii
Model Number :
U8820B+2*U82024
MOQ :
1
Price :
negotiate a price
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
20 pcs+per month
Delivery Time :
21 work days
Packaging Details :
Carton
Chassis size :
2U
The external dimensions of the PD terminal :
5 mm W, 2.5 mm H, 20 mm D
Sensor Element :
InGaAs
PD Size :
φ2 mm
Wavelength Range :
900 ~ 1700 nm
Power Range :
+10 ~ - 45 dBm
Power sampling period（rate） :
1 ms（1KHz）
Description

Ultra-thin PD External Probe For Dual-channel Optical Power Meter

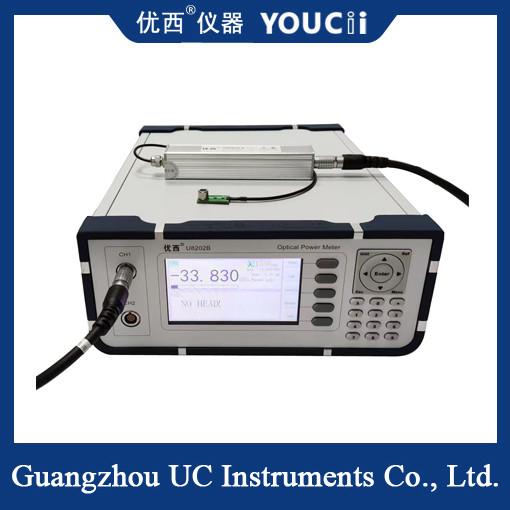

U8820B+2*U82024 dual-channel optical power meter with an external ultra-thin PD (photodiode) probe aims to meet the requirements of high-precision, miniaturization, and multi-scenario optical power measurement.


Model #

U82024

Sensor Element

InGaAs

PD Size

φ2 mm

Wavelength Range

900 ~ 1700 nm

Calibration wavelength

1310 / 1550 / 1650nmSegmented calibration

Power Range

+10 ~ - 45 dBm


Power sampling period(rate)

1 ms(1KHz)

Application Fiber Type

Standard SM and MM up to 62.5 um core size

Absolute

Uncertainty (accuracy) at reference condition

± 4% (1200 nm ~ 1650 nm)

Relative

Uncertainty (accuracy) at reference condition

＜ 0.02 dB Typical

Linearity (power)

≤ ± 0.06 dB (1200 nm ~ 1650 nm, 0 ~ -40dBm)

Return Loss

＞ 40 dB

Optical Input Interface

Bare fiber input

Probe front dimension

5.0 mm W x 2.5 mm H x 20.0 mm D

Communication Interface

RS232 / USB

Operation Temperature

0 ～ +40℃

Storage Temperature

-30 ～ +80℃

Recalibration Period

2 Year

Dimensions

5 mm W, 2.5 mm H, 20 mm D

Weight

0.5 kg


Ultra-thin PD probe design
Compact size: Ultra-thin probes (such as those with a thickness of less than 5mm) are easy to integrate into compact devices or narrow Spaces, making them suitable for scenarios like optical fiber communication and optical module testing.


High sensitivity: Utilizing materials such as InGaAs, covering the 800-1700nm band (common communication wavelengths), the sensitivity can reach -45dBm or even lower, making it suitable for low-power signal measurement.


Fast response: The response time of PD probes is typically at the nanosecond level, making them suitable for real-time monitoring of dynamic optical signals such as pulsed lasers.
