The Single-Channel Optical Power Meter Module Has A Small Built-In Chassis
The Single-Channel Optical Power Meter Module Has A Small Built-In Chassis
Specifications
Brand Name :
YOUCii
Model Number :
U8201MINI
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiate price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100pcs / month
Delivery Time :
20 work days
Packaging Details :
Paper Box
Linearityq :
±5%
Measurement Range :
-70dBm to +10dBm
Resoulution :
0.01dB
Data Interface :
USB/RS232
Connector :
FC or as you request
Number Of Channels :
1
Communication Interface :
+Trig +BNC
Description

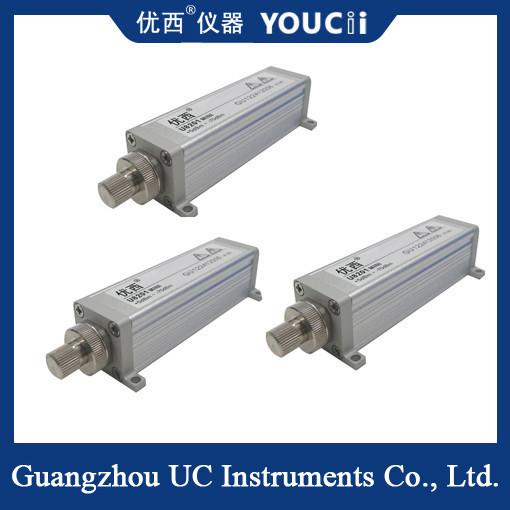

The Single-Channel Optical Power Meter Module Has A Small Built-In Chassis

The single channel mini optical power meter module is a kind of instrument used to measure the optical signal power. It usually has the characteristics of small size, fast start-up and easy operation.

Basic concept
An Optical Power Meter (OPM) is a device used to measure the power in an optical signal. It is mainly used to test the average power of light, and the results are usually expressed in dB or dBm. dBm represents absolute power, while dB represents relative power. The single channel mini optical power meter module refers to the optical power meter with a single measurement channel and a small volume.

Main feature
Single-channel design: Only one measurement channel is available for power measurement of single-channel optical signals.
Mini size: Small, easy to carry and use, suitable for operation in limited space or mobile environments.
High measurement accuracy: The power of the optical signal can be accurately measured to meet the needs of high-precision testing.
Wide dynamic range: can cover a large power measurement range, adapt to different intensity of light signals.
Quick start: Start quickly, can quickly enter the working state, improve the test efficiency.
Easy to operate: The operation interface is simple and intuitive, and users can get started without complex training.

Specification

Model U8201MINI
Sensor Element InGaAs
Wavelength Range 850 ~ 1700 nm
Calibration wavelength 850/980/1310/1490/1550/1610 nm
Power Range (dBm) +7 ~ -70 dBm
Power sampling period(Rate) 1 ms(1KHz)
Application Fiber Type Standard SM and MM up to 62.5 um core size
optical Input Interface FC/PC or FC/APC
Absolute Uncertainty (accuracy) at reference condition ± 4% (1200 nm ~ 1610 nm)
Relative Uncertainty (accuracy) at reference condition ＜ 0.02 dB Typical
Linearity (power) ≤ ± 0.06 dB (1200 nm ~ 1610 nm, 5~ -50dBm)
Return Loss ＞ 40 dB
Communication Interface RS232
Calibration period 2 years
Operation Temperature 0 ~ +40℃
Storage Temperature -30 ~ +80℃
Dimensions 37 mm W, 25 mm H, 115 mm D
Weight 0.5 kg

Application scenario
Single-channel mini optical power meter module is widely used in optical communication, optical fiber sensing, optical measurement and other fields, including but not limited to the following aspects:

Optical fiber link test: Used to test the power loss and return loss of optical fiber links.
Optical device test: such as optical amplifier, optical attenuator, optical coupler and other optical device performance test.
Optical network maintenance: Perform power monitoring and troubleshooting during optical network construction and maintenance.
Research and teaching: Used as a measurement tool in optical experiments and teaching.
