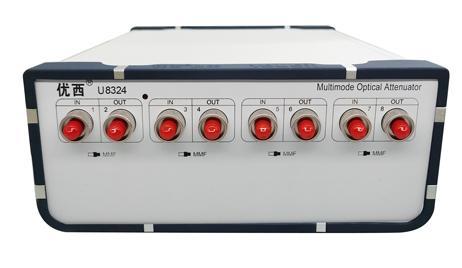

USB/RS232 Port Light-controlled Optical Attenuator, With An Attenuation Range Of 0-35dB
USB/RS232 Port Light-controlled Optical Attenuator, With An Attenuation Range Of 0-35dB
Specifications
Brand Name :
YOUCii
Model Number :
U8324
Place of Origin :
CHINA
MOQ :
1
Price :
negotiate a price
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
20 pcs+per month
Delivery Time :
20 work days
Packaging Details :
Carton
Attenuation Range :
0-35dB
Communication Interface :
USB/RS232 Port
Attenuator Accuracy :
± 0.10 dB (0 ~ 30 dB)
Return Loss :
> 25 dB
Repeatability :
±0.10 dB
Application Fiber Type :
Standard MM
Description

Product Description:

The Variable Optical Attenuator is a high-performance device designed to efficiently control the power level of optical signals in fiber optic communication systems. With advanced technology and precise engineering, this attenuator offers exceptional functionality and reliability for various applications.


Equipped with a versatile Communication Interface, this attenuator supports both USB and RS232 Port connectivity options. This enables seamless integration with different communication systems and provides flexibility in operation and control.


The Attenuation Range of this device is from 0 to 35dB, allowing precise adjustment of signal power levels as needed. Whether for attenuation testing, signal equalization, or network optimization, this wide range ensures compatibility with various signal strength requirements.


Specification:
Model # U8324 / U8328
Attenuator Range 0~35 dB(40dB Type)
Calibration Wavelength (Option) 850 nm (908/980 nm selectable)
Insertion Loss ≤ 1.8 dB Type 1.5dB
Fiber Type 50/125um, 62.5/125um MMF
Connector Type FC/UPC Connector
Attenuation Accuracy ± 0.10 dB (0 ~ 30 dB)
Repeatability ±0.10 dB
Averaging time of monitor PM 2~1000 ms
Settling Time 200ms
Attenuation Transition Speed 0.1 ~ 33 dB/s
Return Loss > 25 dB
Communication Interface RS232, USB, RJ45 Control by PC
Maximum safe input power +27dBm
Recalibration Period 2 years
Operation Temperature 0～ +40℃
Storage Temperature -30～+80℃
Power 100~240 V
Dimensions 245mm W, 105mm H, 320 mm D
Weight 5 kg
In conclusion, the Variable Optical Attenuator is a sophisticated and versatile device that offers superior performance and functionality for power management in optical communication systems. With its advanced features, including low Polarization Dependent Loss, flexible Communication Interface, wide Attenuation Range, low Relative Noise Intensity, and high Attenuator Accuracy, this attenuator is a reliable solution for various optical signal control applications.
