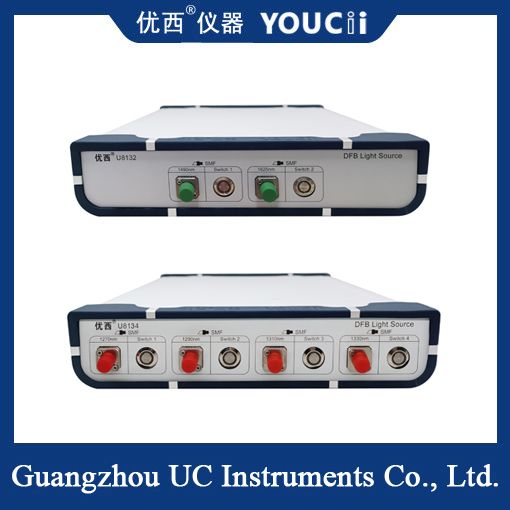

The PC/APC Point Light Source Has An Output Power Of Up To 20mW
The PC/APC Point Light Source Has An Output Power Of Up To 20mW
Specifications
Brand Name :
YOUCii
Model Number :
U8132
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiate price
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
15pcs / month
Delivery Time :
20 work days
Packaging Details :
Paper Box
Output Power :
Up To +20mW
Control Interface :
USB/RS232
Optical Connector :
UPC/APC
Optional Wavelength :
1270, 1290, 1310, 1330 nm (Other wavelengths are optional)
Device Package :
Butterfly
Wavelength Accuracy :
± 2 nm
Bandwidth@3 dB :
＜ 0.1 nm
Description

Product Description:

The dual-channel point light source is a cutting-edge device that offers unparalleled precision and flexibility in optical testing and research applications. With its multi-functional control interface options, outstanding output power capacity and advanced modulation functions, this point light source is an essential tool for professionals in the optoelectronics industry.


Control interface: The dual-channel point light source is equipped with multiple control interface options, including USB and RS232. This allows for seamless integration into various Settings and facilitates user operation and data transmission.


Output power: With an impressive output power of up to +20 dBm, this point light source provides high-intensity light signals and is suitable for various test requirements. Whether you are conducting fiber optic testing, spectroscopy or other optical experiments, this device can ensure reliable and consistent power output.


Specification

Model # U8134H-20
Device Package Butterfly
Optional Wavelength 1270, 1290, 1310, 1330 nm (Other wavelengths are optional)
Wavelength Accuracy ± 2 nm
Output Power 100mW (20dBm)
Connector Type FC/APC (Other Adaptor Can Be Customized)
Bandwidth@3 dB ＜ 0.1 nm
Bandwidth@20 dB ＜0.5 nm

Output Power Stability within 15mins

 ±0.01 dB

Output Power Stability within 8 hrs

 ±0. 05 dB
SMSR ＞ 45 dB
Operation Temperature 0～ +40 ℃
Storage Temperature -30～+80 ℃
Dimensions 285 mm W, 105 mm H, 360 mm D
Weight 5.0 kg


The dual-channel point light source is a highly integrated precision optical device. By combining two point light sources of different wavelengths into one, it provides users with a dual-color lighting solution featuring highly unified positions and precisely controllable timing. It is playing an irreplaceable role in advanced research and applications that require high spatiotemporal accuracy and multi-parameter synchronous detection, and is a typical representative of the integration of modern optoelectronic technology.
