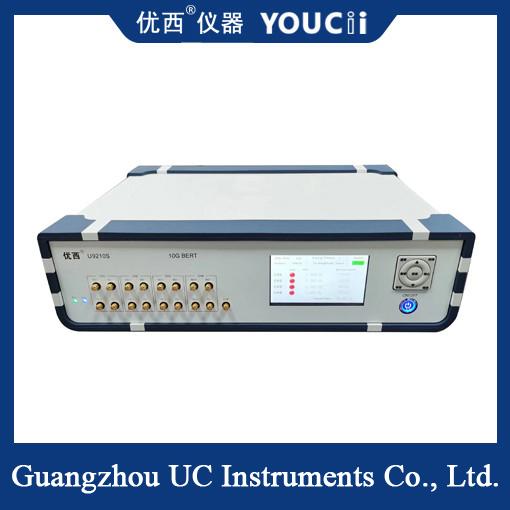

4 Channel Parallel Tape Display 10G Full Rate Error Meter BERT
4 Channel Parallel Tape Display 10G Full Rate Error Meter BERT
Specifications
Brand Name :
YOUCii
Model Number :
U9210S
Place of Origin :
CHINA
MOQ :
1pcs
Price :
negotiate a price
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,D/A
Supply Ability :
5pcs+per month
Delivery Time :
21 work days
Packaging Details :
cartons
Number of channels :
5 (4 electrical ports, 1 optical port, PG and ED supported)
Code type :
PRBS7、PRBS9、PRBS11、PRBS13、PRBS15、PRBS16、PRBS23、PRBS31，USER\ PRBS13Q、SSPRQ、JP03A、JP03B。
Rise and fall time (20% to 80%) :
18~23 ps
Data input/output interface :
Differential, AC coupling, 50 ohm impedance, female 2.92mm SMA
Description

4 Channel Parallel Tape Display 10G Full Rate Error Meter BERT


Basic features of the U9210S:

1. Four-channel parallel PG and ED; Single ended clock output.

2. PG and ED support 37 rate points ranging from 0.6144 to 15.0 Gbps.

3, support code type: PRBS7 / PRBS 9 / PRBS 15 / PRBS 23 / PRBS 31.

4, support continuous error detection and timing error monitoring.

5, with display screen, support panel button operation.

6. Communication mode: USB HID (drive free) or USB-com.


The screen interface is as follows (for reference only).


Instrument name

 U9210S

parameter

minimum

typical

maximum

unit

Data rate

 0.6144 0.614,0.622,1.25,2.5,5.0,9.953,10.00,10.3125,10.52,11.09,11.32,11.7,12,12.5,14.025,14.5,15Etc. 15.0 Gbps

Number of channels

5 (4 electrical ports, 1 optical port, PG and ED supported)

Code type
PRBS7,PRBS9,PRBS15,PRBS23,PRBS31

Rise and fall time (20% to 80%)
18 23 ps

Pattern reversal

Supports signal reversal at the transmitting and receiving ends

Signal differential output amplitude

 200 600 1000 mV

Data output jitter (RMS)
1.5(10.3125G下)
ps

Data input/output interface

Differential, AC coupling, 50 ohm impedance, SMA

Clock output

 100 156.25 156.25 MHz

Data signal input sensitivity
50
mVpp

Data output eye graph crossing point (difference)

 49 50 54 %

USB HID response time
10
ms

Operating temperature

 10 25 50 °C

Operating voltage (AC)

 180 220 250 V



4 Channel Parallel Tape Display 10G Full Rate Error Meter BERT
