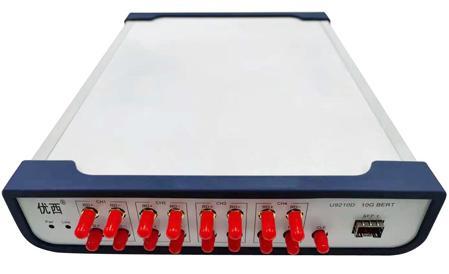

10G Full Speed Optical Error Code BERT Tester For 622M To 15G 5 Channels
10G Full Speed Optical Error Code BERT Tester For 622M To 15G 5 Channels
Specifications
Brand Name :
YOUCii
Model Number :
U9210D
Place of Origin :
CHINA
MOQ :
1pcs
Price :
negotiate a price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability :
5pcs+per month
Delivery Time :
21 work days
Packaging Details :
cartons
Support code :
PRBS7 / PRBS 9 / PRBS 15 / PRBS 23 / PRBS 31
Description

10G Full Speed With Optical Error Code For 622M To 15G 5 Channels BERT

The U9210D is fast, convenient and small in size.One SFP optical port channel and one electrical port channel, the two channels are synchronized input and output, error testing can be independent.

Supports continuous error detection and periodic error monitoring. Support 10G full speed (622M~11.7Gbps 20 frequency points);

Support code: PRBS7 / PRBS 9 / PRBS 15 / PRBS 23 / PRBS 31.

Software function introdUtion

1.1 Data Rate:Setting the current data rate.

1.2 Data Pattern:Setting then current PRBS(Pattern).

1.3 Gating Time:Accumulation time setting for Accumulation BER measurement .

1.4 All channel start button:Start setting the parameters and start all channel to testing the Accumulation BER.

1.5 USB Address box:Automatically enumerate all USB device addresses,select a USB address and press Connect button to connected the current device.

1.6 Current channal button: Manually start or stop the accumulated BER test.

1.7 Accumulatio BER(bit error rate):accumulate the instantaneous bit error count and elapse time,Accumulatio BER = instantaneous bit error count/(elapse time*total bit count).

1.8 PG Eneble checkbox:Enable or disable the TX output.

1.9 Measurement

Lock:Rx lol(sync) is lock or unlock Error Cnt: Accumulatio bit error counter

Test Time:Current channel accumulated time for Accumulatio BER measurement .

10G Full Speed Optical Error Code BERT Tester For 622M To 15G 5 Channels

10G Full Speed Optical Error Code BERT Tester For 622M To 15G 5 Channels
