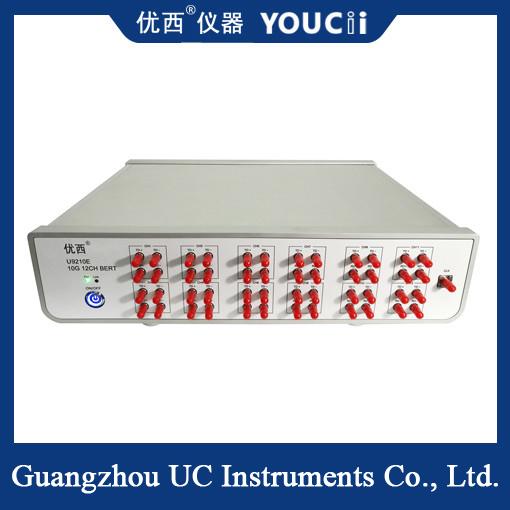

10G 12 Channel Bit Error Instrument Optical BERT Full Speed 15G
10G 12 Channel Bit Error Instrument Optical BERT Full Speed 15G
Specifications
Brand Name :
YOUCii
Model Number :
U9210E
Place of Origin :
CHINA
MOQ :
1pcs
Price :
negotiate a price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability :
5pcs+per month
Delivery Time :
21 work days
Packaging Details :
cartons
Data rate :
0.622~15Gbps
Rise and fall time (20% to 80%) :
18~23 ps
Signal output amplitude (single-ended) :
200~1000mV
Data output jitter (RMS :
1.5 (10.3125G down) ps
Data signal input sensitivity (single-ended) :
0.1Vpp
Operating temperature :
10~50°C
Description

10G 12 Channel Bit Error Instrument Optical BERT Full Speed 15G

Performance character:

1.12 electric channels, all channels synchronous input and output, Error Code testing can be independent.

2.Support for continuous error detection and timing error detection.

3.Support Full Rate from 622M up to 15Gbps；

4.Support code type: PRBS7 / PRBS 9 / PRBS 15 / PRBS 23 / PRBS 31

One channels low jitter clock output.Communication Mode USB HID.

No.

parameter

minimum

typical

maximum

unit
1

Data rate

 0.622 0.622,1.25,2.125,2.488,2.5,3.07,3.125,4.25,5.0,6.144,6.25,7.5,8.5 ,9.953,10.00,10.3125,10.52,10.709,11.09,11.32,11.7,14.025,15 15 Gbps
2

Code type

 PRBS7,PRBS9,PRBS15,PRBS23,PRBS31
3

Rise and fall time (20% to 80%)

 18 23 ps
4

Pattern reversal

Supports signal reversal at the receiving end
5

Signal output amplitude (single-ended)

 200 800 1000 mV
6

Data output jitter (RMS)

1.5 (10.3125G down)

 ps
7

Data input/output interface

Differential, AC coupling, 50 ohm impedance, SMA
8

Clock output

 100 156.25 156.25 MHz
9

Data signal input sensitivity (single-ended)

 0.1 Vpp
10

Data output eye graph intersections

 50 52 54 %
11

Operating temperature

 10 25 50 °C
