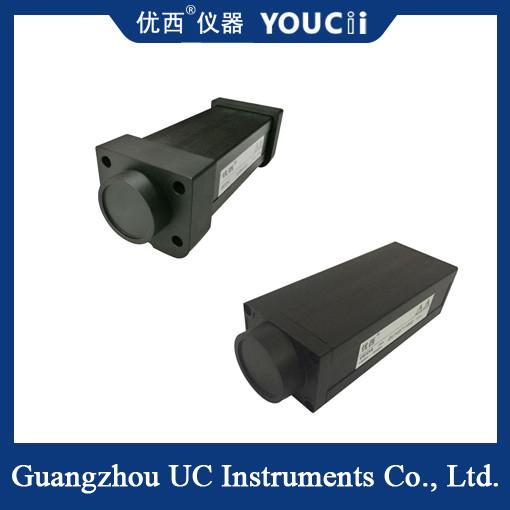

High Speed Power Meter Probe 850/980/1310/1510 ~1640nm Continuous Calibration
High Speed Power Meter Probe 850/980/1310/1510 ~1640nm Continuous Calibration
Specifications
Brand Name :
YOUCii
Model Number :
U8721C
Certification :
CU,IOS
Place of Origin :
China
MOQ :
1pcs
Price :
negotiate a price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 pcs+per month
Delivery Time :
20 work days
Packaging Details :
Carton
Sensor Element :
InGaAs
Application Fiber Type :
Standard SM and MM
Optical Input Interface :
Supporting bare fiber joint or FC/LC/SC Adapter
Linearity (power) :
≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -50dBm)
Dimensions :
245 mm W, 105 mm H, 320 mm D
Calibration wavelength :
850 / 980 / 1310 / 1510~1640nm
Description

High Speed Power Meter Probe 850/980/1310/1510 ~1640nm Continuous Calibration

The sampling period of the U8721 high-speed optical power meter module of Guangzhou Youxi can reach the uS level, and the data can be acquired and processed more quickly. The power meter module adopts USB communication interface, which can communicate with PC directly, display data and set parameters through configuration software.

The U8721 high speed optical power meter module can be used in high precision WDM components, optical waveguide grating array AWG components, planar optical waveguide PLC components, WSS, OPM, DPSK, optical amplifier EDFA and other general optical fiber optical measurement applications. Compared with other models of Guangzhou Youxi power meter, U8721 has the characteristics of high-speed sampling, and small shape, especially suitable for assembly into multi-channel optical power meter sampling system.

Apply

1.WDM, GFF, AWG, PLC device test

2.Insert loss, return loss measurement

3.Optical fiber sensor, optical fiber cable test

4.Polarization mode dispersion PMD and polarization dependent loss PDL measurement

5.Optical fiber, communication R&D laboratory test

MODEL U8721A U8721B U8721C U8721D U8721H
Sensor Element InGaAs
Wavelength Range 850 ~ 1700 nm
Calibration wavelength 850 / 980 / 1310 / 1510~1640nm
Power Range (dBm) + 5 ~ -65 + 5 ~ -70 + 5 ~ -80 + 25 ~ -60

Power sampling period(Rate)

 100 us(10KHz) 10 us(100KHz)
Application Fiber Type Standard SM and MM
Optical Input Interface Supporting bare fiber joint or FC/LC/SC Adapter

Absolute Uncertainty (accuracy) at reference condition

 ± 4% (1200 nm ~ 1610 nm)

Relative Uncertainty (accuracy) at reference condition

 ＜ 0.02 dB
Linearity (power) ≤± 0.06dB (1200 ~ 1610 nm, + 0 ~ -60dBm)
Return Loss ＞ 40 dB
Communication Interface USB +Trig +Trig +BNC +Trig
Calibration period 2 Years
Operation Temperature 0 ~ +40℃
Storage Temperature -30 ~ +80℃
Dimensions 52mm H,60 mm W,150 mm D
Weight 1.0 kg
