Optic Transceiver Epon Olt Sfp Module Huawei 1.25G PX20+ 20KM Compatible With HSGQ
Optic Transceiver Epon Olt Sfp Module Huawei 1.25G PX20+ 20KM Compatible With HSGQ
Specifications
Brand Name :
OPTFOCUS, OPTFOCUS or OEM
Model Number :
OFSB-5312-20SD, 1.25G CWDM SFP Transceiver Module DDM
Certification :
ROHS/ ISO9001 /CE
Place of Origin :
Guangdong, China
MOQ :
20
Price :
$5.7~6.8
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000 pcs / week
Delivery Time :
3-7 work days
Packaging Details :
10 piece / box or custom
Use :
FTTH
Type :
Fiber Optic Transceivers
Application :
(Data Center)
No. of Fiber :
1.
Commericial grade :
0 to 70 degree
Industry grade :
-40 to +85 degree
Distance :
20~120km
Description
Product Description

Product Feature

* Dual data-rate of 1.25Gbps/1.063Gbps operation

* 1550nm DFB laser and PIN photodetector for 20km transmission
*Compliant with SFP MSA and SFF-8472 with simplex LC
* Receptacle
Digital Diagnostic Monitoring:
Internal Calibration or External Calibration

* Compatible with SONET OC-24-LR-1

* Compatible with RoHS

* +3.3V single power supply

* Operating case temperature: standard : 0 to +70°C

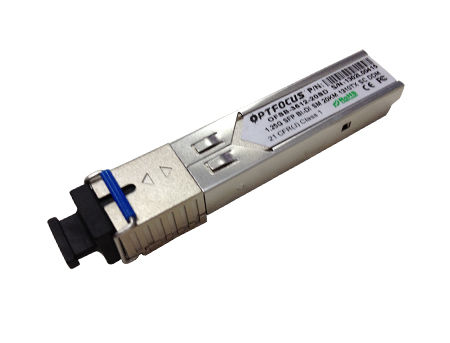

Optic Transceiver Epon Olt Sfp Module Huawei 1.25G PX20+ 20KM Compatible With HSGQ

  • 1.25Gbps SFP Bi-Directional Transceiver, 20km Reach
    1550nm TX / 1310 nm RX

The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20km
transmission distance with SMF.

The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance
preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

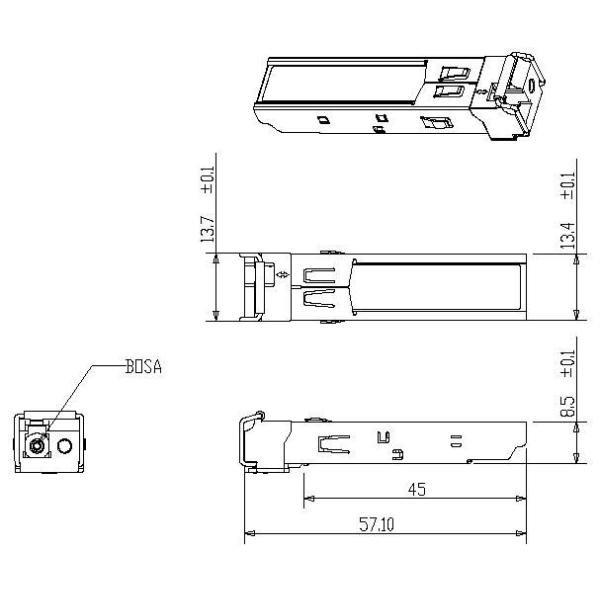

Mechanical Dimensions

Optic Transceiver Epon Olt Sfp Module Huawei 1.25G PX20+ 20KM Compatible With HSGQ

Applications

* Gigabit Ethernet

* Fiber Channel

* Switch to Switch interface

* Switched backplane applications

* Router/Server interface

* Other optical transmission systems

Digital Diagnostic Memory Map

The transceivers provide serial ID memory contents and diagnostic information about the present operating conditions by the 2-wire
serial interface (SCL, SDA).

The diagnostic information with internal calibration or external calibration all are implemented, including received power
monitoring, transmitted power monitoring, bias current monitoring, supply voltage monitoring and temperature monitoring.
Certifications
Optic Transceiver Epon Olt Sfp Module Huawei 1.25G PX20+ 20KM Compatible With HSGQ
Company Introduction
Optic Transceiver Epon Olt Sfp Module Huawei 1.25G PX20+ 20KM Compatible With HSGQ
Optic Transceiver Epon Olt Sfp Module Huawei 1.25G PX20+ 20KM Compatible With HSGQOptic Transceiver Epon Olt Sfp Module Huawei 1.25G PX20+ 20KM Compatible With HSGQ
Optic Transceiver Epon Olt Sfp Module Huawei 1.25G PX20+ 20KM Compatible With HSGQOptic Transceiver Epon Olt Sfp Module Huawei 1.25G PX20+ 20KM Compatible With HSGQ
Optic Transceiver Epon Olt Sfp Module Huawei 1.25G PX20+ 20KM Compatible With HSGQ
