4F Armored Patch Cable cord 30m FC 5mm Black LSZH FTTH Flame Resistant
4F Armored Patch Cable cord 30m FC 5mm Black LSZH FTTH Flame Resistant
4F Armored Patch Cable cord 30m FC 5mm Black LSZH FTTH Flame Resistant
4F Armored Patch Cable cord 30m FC 5mm Black LSZH FTTH Flame Resistant
4F Armored Patch Cable cord 30m FC 5mm Black LSZH FTTH Flame Resistant
4F Armored Patch Cable cord 30m FC 5mm Black LSZH FTTH Flame Resistant
Specifications
Brand Name :
JIANGSU ARMORED
Model Number :
4F-B1.3-LSZH-FC-LC-30M
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
1000M Cable
Price :
To Be Advised
Supply Ability :
2000pcs Connector Per Day
Delivery Time :
2 Working Weeks
Packaging Details :
Plastic bags , Carton, and Pallet. By Sea or Air shipment
Name :
Armored Patch Cord
Fiber Quantity :
4 cores
Jacket :
LSZH
Color :
Black
Diameter :
5.0 MM
Length :
30M
Fan-out Length :
50cm
Application :
FTTH, Datacenter,
Feature :
Rodent resistant
Flame Rating :
IEC60332-1-2, IEC60332-3-24, Dca，or OFCR
Description

4F Armored Patch Cord 30m FC connector 5mm Black LSZH FTTH Rodent Resistant Flame Resistant

4 Cores Armored Patch Cord 30m FC connector 5mm Black LSZH FTTH Rodent Resistant Flame Resistant

4F Armored Patch Jumper

l Micro armored tube used to decrease the outer diameter and cable weight, also convenient for cabling and installation.

l Micro armored fiber cable using high property aramid yarn, increasing tension property, and fit for long distance application.

l Micro armored fiber cable using spiral metal armored tube with best crush property, and cable is very flexible and easy bend.

l Different jacket material fit for different environments.

l UV-resistant

Parameter

Item Armored patch cord
Fiber G657A, OM1, OM2, OM3, OM4
Cable diameter 5.0MM, etc.
Cable jacket LSZH (PVC and PU are optional)
Length 1M, 2M, 10M,......1000M
Insert loss ＜ 0.30dB
Return loss ≥50dB (UPC), ≥60dB (APC), ≥25dB (MM)
Temperature PVC: -20℃~70℃, LSZH: -40℃~80℃
Fan-out cable length 10-50cm, length can be customized.

Cable Grade

The following standard can be choosen,

IEC60332-1-2, IEC60332-3-24, Eca, Dca, Cca, OFCR, OFCP, etc.

Comply with ROHS

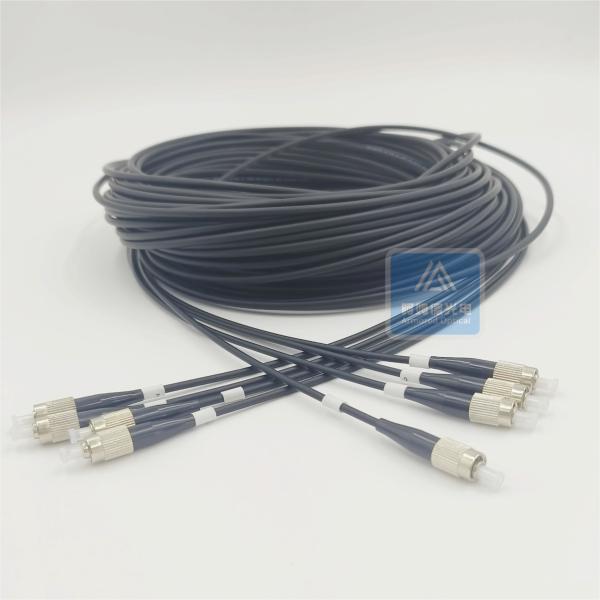

Cable show

4F Armored Patch Cable cord 30m FC 5mm Black LSZH FTTH Flame Resistant

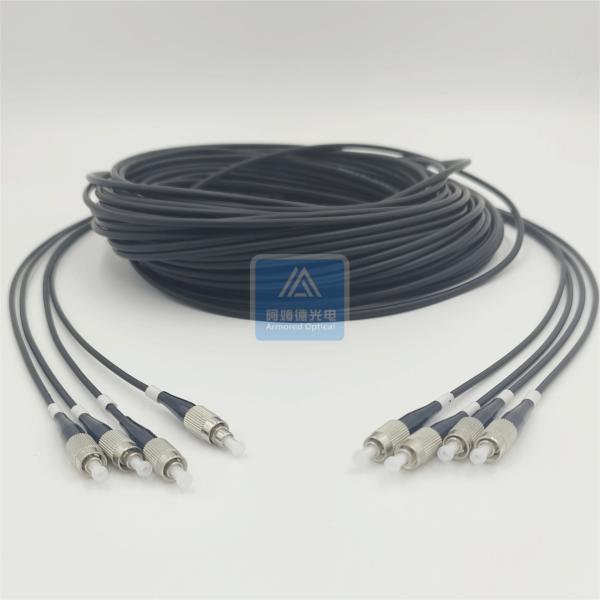

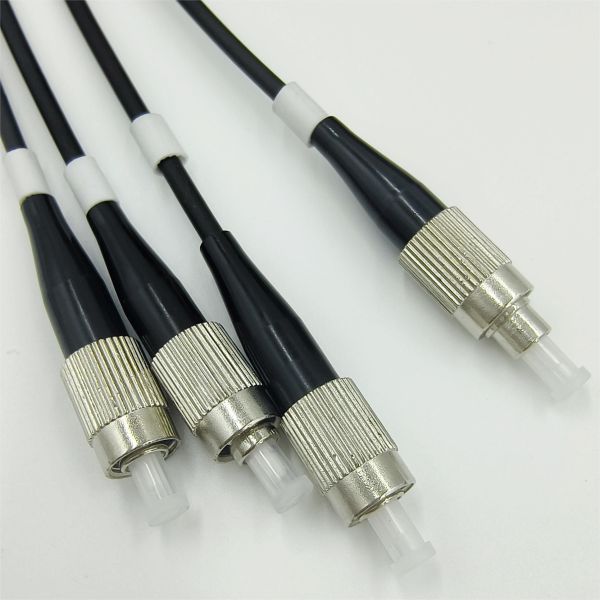

Armored Patch Cord show:

4F Armored Patch Cable cord 30m FC 5mm Black LSZH FTTH Flame Resistant

4F Armored Patch Cable cord 30m FC 5mm Black LSZH FTTH Flame Resistant

4F Armored Patch Cable cord 30m FC 5mm Black LSZH FTTH Flame Resistant

l The spiral armored fiber cable is rodent-resistant, which couldn’t be destroyed by rodent animals.

So armoured fiber cable and patch cord products has long product life.

l The maintain cost for spiral armored fiber cable will be saved.

l The spiral armored fiber cable with good tension and pressure

l The cables can be customized, eg. construct, size, color, material, printing, packing and so on.,

to meet different customers’ different requirement.
