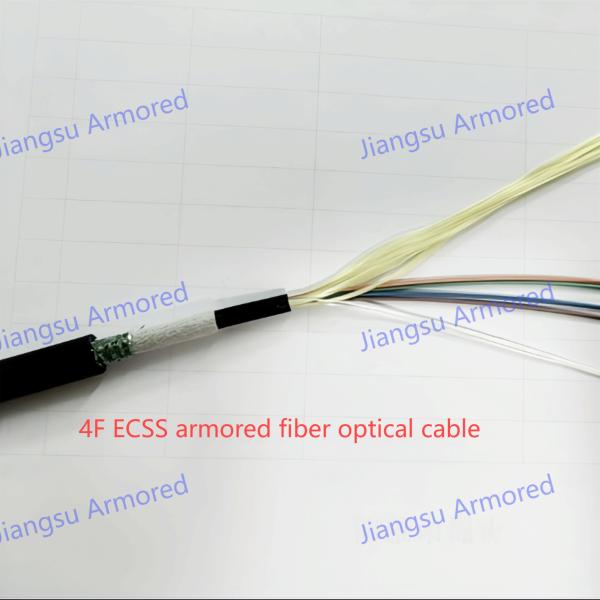

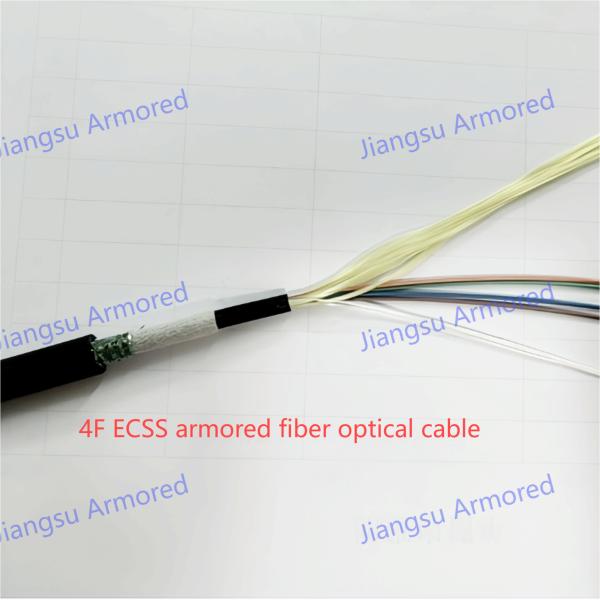

4 Core ECCS Corrugated Steel Armored Fiber Optical Cable 8.2mm HDPE Rodent Resistant
4 Core ECCS Corrugated Steel Armored Fiber Optical Cable 8.2mm HDPE Rodent Resistant
4 Core ECCS Corrugated Steel Armored Fiber Optical Cable 8.2mm HDPE Rodent Resistant
4 Core ECCS Corrugated Steel Armored Fiber Optical Cable 8.2mm HDPE Rodent Resistant
Specifications
Brand Name :
AMD
Model Number :
4F-A2-8.2-PE-ECCS
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
1000M
Price :
Negociation
Payment Terms :
T/T
Supply Ability :
100km per day
Delivery Time :
According to the quantity
Packaging Details :
1000m, 500m per drum, without carton
Name :
Corrugated Steel Armored Fiber Cable
Outer jacket :
HDPE
Color :
Black
Feature 1 :
Water Swallable
Feature 2 :
Rodent Resistant
Diameter :
8.2mm
Number Of Cores :
4 Cores
Armored tube Material :
Steel Tape
Description

4 Cores ECCS Corrugated Steel Armored Fiber Optical Cable 8.2mm HDPE Rodent Resistant

4 Cores ECCS Corrugated Steel Armored Fiber Optical Cable 8.2mm HDPE Rodent Resistant Steel Tape

Corrugated steel armored fiber cables are suitable for outdoor use, because armored fiber cables are water blocking, wear-resisting, and can take temperature fluctuations, then are often used for outdoor communication networks, industrial and infrastructure projects.

Cable Parameter

Items Specifications
Fiber Count 4
Tight-buffered Fiber Dimension 0.75mm±0.05mm
Material PVC
Color Blue, Orange,Green,Brown
Inner Jacket Dimension 3.8 mm±0.1mm
Material LSZH
Color Black
Outer Jacket Dimension 8.2mm±0.3mm
Material HDPE
Color Black

Mechanical and Environmental Characteristics

Items Unit Specifications
Tension(Long Term) N 500
Tension(Short Term) N 800
Crush(Long Term) N/10cm 300
Crush(Short Term) N/10cm 1000
Min. Bend Radius(Dynamic) mm 20D
Min. Bend Radius(Static) mm 10D
Installation Temperature ℃ -40～+70
Operating Temperature ℃ -40～+70
Storage Temperature ℃ -40～+70

4 Core ECCS Corrugated Steel Armored Fiber Optical Cable 8.2mm HDPE Rodent Resistant

Cable can comply with following standards,

Torsion Resistance IEC 60794-1-2-E7

Tensile Force IEC 60794-1-2-E1,

Water penetration IEC 60794-1-2-F5 C

Crush Resistance IEC 60794-1-2-E3

UV Resistance ASTM G154-16,

Exposure 720 hrs, IL≤0.05dB 6 Cycles

Anti-Rodent Cable should be rodent bite-proof

Kink Resistance IEC 60794-1-2-E10, 10xD,
