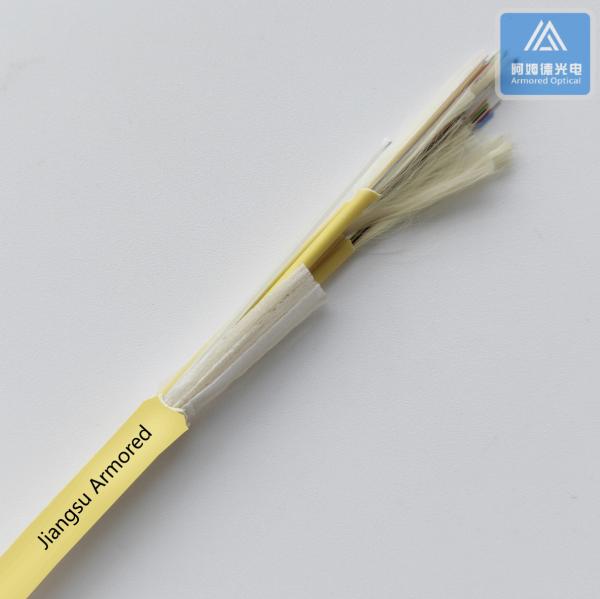

48 Core Single Mode Fiber Optic Cable Yellow LSZH 6.5mm Branch Fiber Cable Data Center
48 Core Single Mode Fiber Optic Cable Yellow LSZH 6.5mm Branch Fiber Cable Data Center
48 Core Single Mode Fiber Optic Cable Yellow LSZH 6.5mm Branch Fiber Cable Data Center
48 Core Single Mode Fiber Optic Cable Yellow LSZH 6.5mm Branch Fiber Cable Data Center
Specifications
Brand Name :
JIANGSU ARMORED
Model Number :
48F-B1.3-6.5-LSZH
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
1000M
Price :
Negociation
Payment Terms :
T/T
Supply Ability :
300km per Day
Delivery Time :
2 Working Weeks
Packaging Details :
1000m Per Drum, With or Without Carton, By Sea or Air
Name :
48 Cores Fiber Cable
Fiber Mode :
G652D
Inner Jacket :
2.0mm LSZH
Inner Jacket Color :
Yellow
Outer Diameter :
6.5mm
Outer jacket :
LSZH
Color :
Yellow, Other Colors Can Be Custmized
Flame Rating :
IEC60332-1-2
Description

48 Cores SM Fiber Cable Yellow LSZH 6.5mm Break Out Fiber Cable Branch Fiber Cable Data Center

48 Cores SM Fiber Cable Yellow LSZH 6.5mm Break Out Fiber Cable Branch Fiber Cable Data Center

FTTH, FTTX, Double Jacket Fiber Optical Cable

Branch fiber optical cable are usually used in data centers, communications networks, and FTTH installation. branch cables are primarily used to distribute signals from the backbone cable to multiple terminals or network nodes. For example, in a large building, branch cables can distribute the main cable signal to different floors or departments to ensure that each area has a reliable fiber connection.

Item

Parameter

Fiber Count

48 Cores

Inner Jacket

Yellow 2.0mm

Wrap Tape

 White

Cable diameter

6.5 ±0.3mm

Cable jacket

Yellow LSZH

Temperature

-30℃~80℃

Crush (N/10cm)

Long-term 400, short-term 800

Bend radius (mm)

Dynamic 20D, Static 10D

48 Core Single Mode Fiber Optic Cable Yellow LSZH 6.5mm Branch Fiber Cable Data Center

Armored Patch Cord or Pigtail Assembly

48 Core Single Mode Fiber Optic Cable Yellow LSZH 6.5mm Branch Fiber Cable Data Center

Applications

  • Used in FTTX, from residence to data center and cabling level and vertical
  • Used in communications in data center

Service

  • 100% testing before shipment.
  • Good prices can be provided.
  • Our products can be customized according to customers’ requirement.
  • Different class materials can be provided. eg, CPR, UL, OFCR, OFCP, IEC60332, etc.
