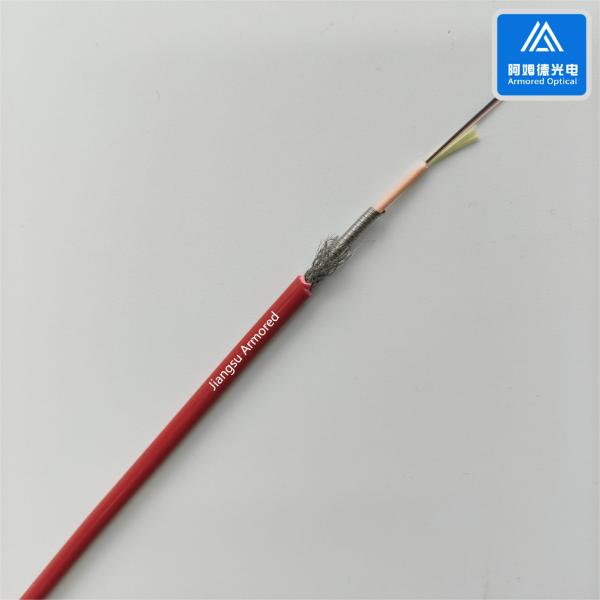

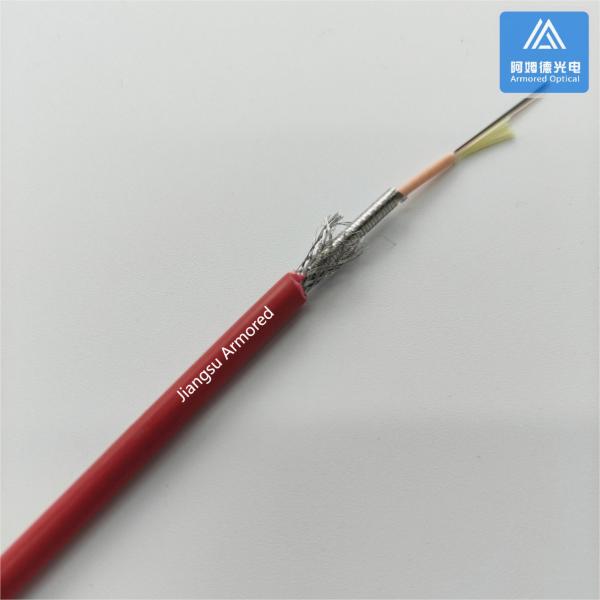

5.0mm 12 Core micro armor fiber optic cable Red LSZH Jacket FTTH
5.0mm 12 Core micro armor fiber optic cable Red LSZH Jacket FTTH
5.0mm 12 Core micro armor fiber optic cable Red LSZH Jacket FTTH
5.0mm 12 Core micro armor fiber optic cable Red LSZH Jacket FTTH
Specifications
Brand Name :
JIANGSU ARMORED
Model Number :
12F-B6a2-LSZH-5.0-Red
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
1000M
Price :
Negociation
Payment Terms :
T/T
Supply Ability :
30KM per Day
Delivery Time :
2 Working Weeks
Packaging Details :
Plywood Drum and Pallet. By Sea or Air shipment
Name :
12 Cores Micro Armored Fiber Cable
Fiber Mode :
Single Mode and Multi Mode
Inner Jacket :
Orange LSZH
Outer jacket :
LSZH
Color :
Red
Diameter :
5mm
Armored Tube Material :
Stainless steel
Feature :
Rodent Resistant
Flame Rating :
IEC60332-1-2
Application :
FTTH, Datacenter
Description

12 Cores 5.0mm Spiral Micro Armored Fiber Cable Red LSZH Jacket FTTH Rodent Resistant

12F 5.0mm Spiral Micro Armored Fiber Cable, Red LSZH Jacket FTTH Rodent Resistant

Micro Armored Fiber Cable, Spiral Armored Fiber Cable, Armored Fiber Optical Cable

Because with metallic tube inside, armored fiber cables and patch cords have a longer lifespan than common fiber cables and patch cords. Armoured fiber cable and patch cord are not easy to wear and tear, which can reduce maintenance costs.

Armored fiber optical cable are available assembled with different lengths and connector types (like LC, SC, ST, FC), making them adaptable to different networking and communications equipment.

Item

Parameter

Fiber Count

12 cores

Inner jacket Material

LSZH

Armored Tube

SUS material

Cable Diameter

5.0±0.2mm

Cable Jacket

Red LSZH

Temperature

-40℃~80℃

Crush (N/10cm)

Long-term 1000, short-term 3000

Bend radius (mm)

Dynamic 20D, Static 10D

5.0mm 12 Core micro armor fiber optic cable Red LSZH Jacket FTTH

Feature

  • Micro armored tube used to decrease the outer diameter and cable weight, also convenient for cabling and installation.
  • Micro armored fiber cable using high property aramid yarn, increasing tension property, and fit for long distance application.
  • Micro armored fiber cable using spiral metal armored tube with best crush property, and cable is very flexible and easy bend.
  • Different jacket material fit for different environments.
  • UV-resistant

Applications

  • Used in FTTX, from residence to data center and cabling level and vertical, also used in FTTH cable
  • Used in communications in data center, during ODF with armored patch cord and pigtail
  • Used in the open field, connections between optical equipment.
  • Widely used in FTTH access network
  • Telecommunication Network
  • CCTV Network
  • Data communications Network
  • Local Area Network
  • Optical pig-tails and Patch cord assembly
  • Optical devices and equipment
