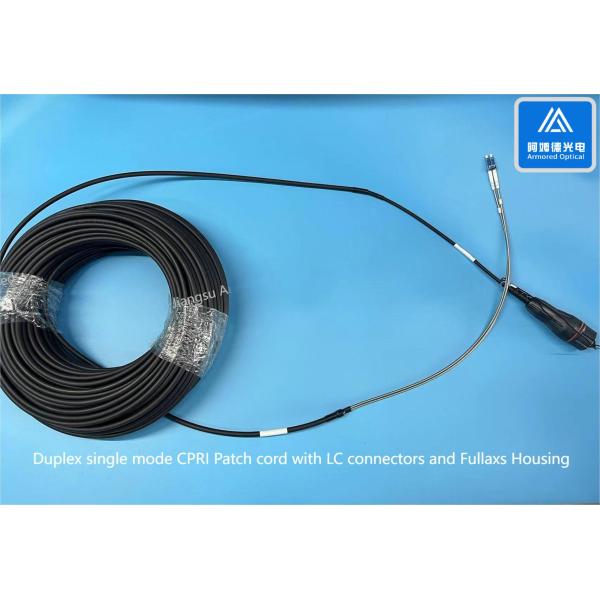

Duplex SM Spiral Armored Fiber Patch Cable 7.0mm Rodent Resistant CPRI Fiber Cable FTTA Fiber Cable
Duplex SM Spiral Armored Fiber Patch Cable 7.0mm Rodent Resistant CPRI Fiber Cable FTTA Fiber Cable
Duplex SM Spiral Armored Fiber Patch Cable 7.0mm Rodent Resistant CPRI Fiber Cable FTTA Fiber Cable
Duplex SM Spiral Armored Fiber Patch Cable 7.0mm Rodent Resistant CPRI Fiber Cable FTTA Fiber Cable
Specifications
Brand Name :
JIANGSU ARMORED
Model Number :
2F-B6A2-LSZH-7.0-Black
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
1000M
Price :
Negociation
Payment Terms :
T/T
Supply Ability :
30 km Per Day
Delivery Time :
1-2 Working Weeks
Packaging Details :
Plywood Drum and Pallet. By Sea or Air shipment
Name :
Spiral Armored Fiber Cable
Fbier Count :
2 Fiber
Fiber Mode :
Single Mode
Armored Tube Material :
Stainless Steel
Outer jacket Color :
Black
Outer jacket :
LSZH
Diameter :
7.0mm
Flame Rating :
IEC60332-1-2
Feature :
Rodent Resistant
Application :
FTTA, FTTH,
Description

Duplex 7.0mm Stainless Steel Spiral Micro Armored Fiber Cable, Black LSZH Jacket FTTH Rodent Resistant

Micro Armored Patch Cable, Flexible Armored Patch Lead Assembly

FTTA Fiber Cable, DDU and RRU Fiber Cable Assembly

With metallic tube inside, armored fiber cables and patch cords have a longer lifespan than common fiber cables and patch cords. Armoured fiber cable and patch cord are not easy to wear and tear, which can reduce maintenance costs.

Despite with metallic tube construction, armored patch cables are flexible enough and can be twist any direction.

Item Unit Description Remark
Fiber OD mm 0.9mm PVC tight buffer
Spiral armored tube mm OD: 2.8±0.1mm
Aramid yarn 1100D
Attenuation (Max.) dB/km

SM: 0.4dB/km@1310nm, 0.3dB/km@1550nm

MM: 3.5dB/km@850nm, 1.5dB/km@1300nm
Outer jacket OD mm 7.0±0.2 LSZH
Temperature ℃

LSZH: -30～80℃
Tensile N Long-term 200, short-term 400
Crush N/10cm Long-term 1000, short-term 2000

Armored fiber optical cable are available assembled with different lengths and connector types (like LC, SC, ST, FC),

making them adaptable to different networking and communications equipment.

Applications

  • Widely used in FTTH access network
  • FTTA, 5G Tower
  • CPRI patch cord assembly
  • Duplex SM Spiral Armored Fiber Patch Cable 7.0mm Rodent Resistant CPRI Fiber Cable FTTA Fiber CableDuplex SM Spiral Armored Fiber Patch Cable 7.0mm Rodent Resistant CPRI Fiber Cable FTTA Fiber Cable

Advantage

  • The spiral armoured cable is rodent-resistant, it’s couldn’t be destroyed by rodent animals. It has long product life.
  • Compare with normal fiber cable, spiral armoured cable maintain cost will be saved.
  • The spiral armoured cable with good tension and pressure performance.
  • The spiral armoured cable can be customized, eg. construct, size, color, material, printing, length, packing and so on., to meet different customers’ different requirement.

Service

  • 100% testing before shipment.
  • Good prices can be provided.
  • Our products can be customized according to customers’ requirement.
  • Different class materials can be provided. eg, CPR, UL, OFCR, OFCP, IEC60332, etc.
