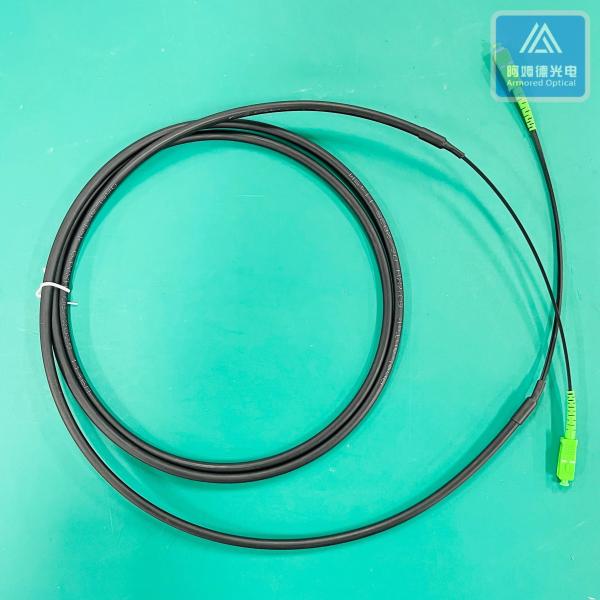

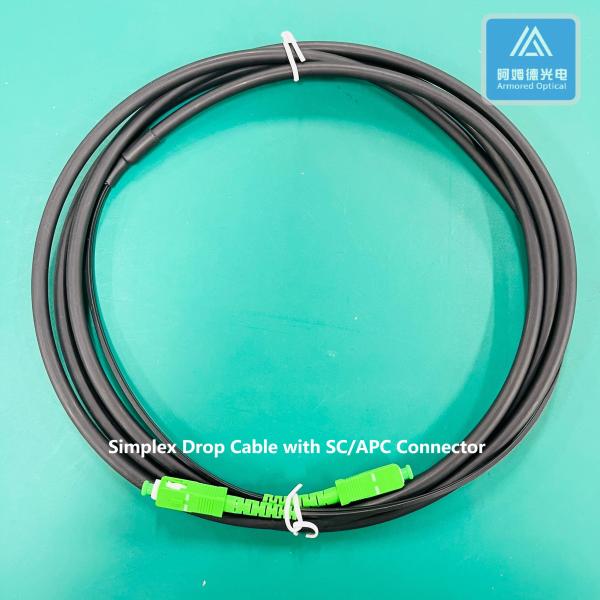

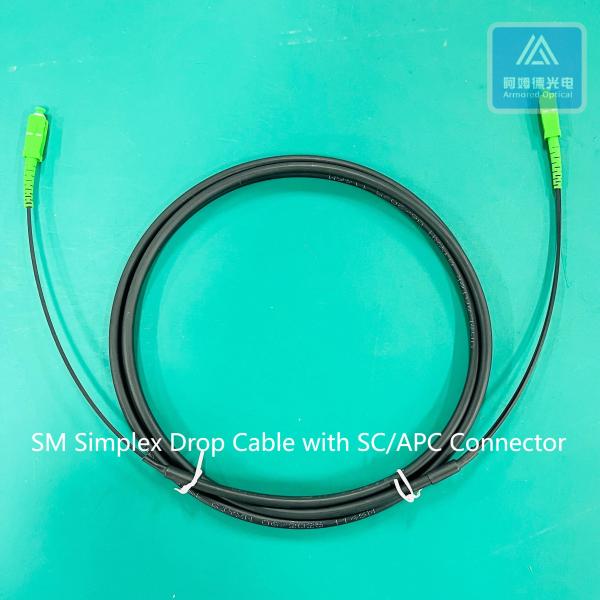

Simplex SM Drop Cable Assembly Black LSZH Patch Lead
Simplex SM Drop Cable Assembly Black LSZH Patch Lead
Simplex SM Drop Cable Assembly Black LSZH Patch Lead
Simplex SM Drop Cable Assembly Black LSZH Patch Lead
Specifications
Brand Name :
JIANGSU ARMORED
Model Number :
SC/APC-SC/APC-30M-1F-B6a2
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10000M
Price :
Negociation
Payment Terms :
T/T
Supply Ability :
80km per day
Delivery Time :
According to the quantity
Packaging Details :

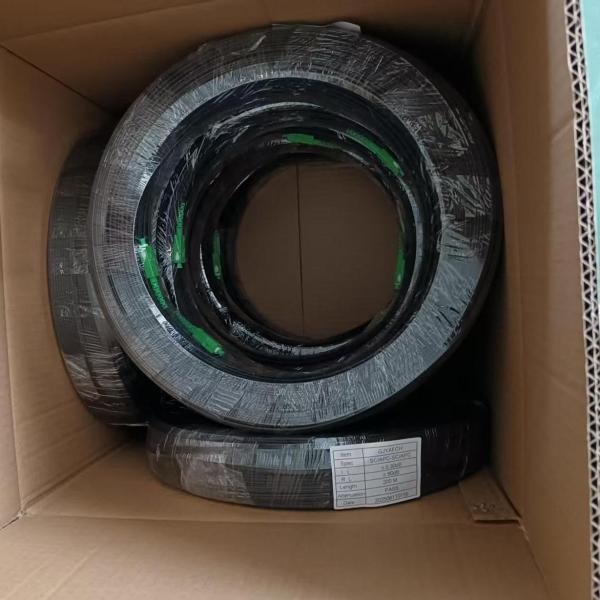

1000m or 2000m per drum, with or without carton
Name :
Fiber Drop Cable Assembly
Fiber Counts :
1 Core
Fiber Mode :
G657A
Fiber Diameter :
0.25mm
Fiber Color :
Blue
FRP OD :
0.5mm
Supporting Wire :
Stainless Steel Wire 1.0mm
Outer Jacket Color :
Black
Outer Jacket :
LSZH
Cable OD :
5.0x2.0mm or 3.0x2.0mm
Description

Simplex SM Self-supporting Drop Cable 5.0x2.0mm or 3.0x2.0mm Black LSZH

Indoor and Outerdoor Fiber Optic Cable Assembly

Fiber Patch Cable, Assembly Cable, FTTH,

Parameter

Item

Specification

Fiber Counts

1 cores

Fiber Diameter

0.25mm

Cable Jacket

Black LSZH

Cable Diameter

5.0x 2.0 (±0.1mm), 3.0x 2.0 (±0.1mm)

Temperature

-20℃~70℃

Flame retardant

IEC60332-1-2 or others

Crush (N/10cm)

max.500

Bend radius (mm)

Dynamic 20D, Static 10D

Simplex SM Drop Cable Assembly Black LSZH Patch Lead

Simplex SM Drop Cable Assembly Black LSZH Patch Lead

Simplex SM Drop Cable Assembly Black LSZH Patch Lead

Feature

  • Cable using high property aramid yarn, increasing tension property, and fit for long distance application.
  • Different jacket material fit for different environments.
  • UV-resistant

Applications

  • Used in FTTX, from residence to data center and cabling level and vertical, also used in FTTH cable
  • Used in communications in data center, during ODF with armored patch cord and pigtail
  • Used in the open field, connections between optical equipment.
  • For patch cord or pigtail assembly.

Service

  • 100% testing before shipment.
  • Good prices can be provided.
  • Our products can be customized according to customers’ requirement.
