1310nm 1490nm 1550nm Three Window FBT Fiber Optic Splitter
1310nm 1490nm 1550nm Three Window FBT Fiber Optic Splitter
1310nm 1490nm 1550nm Three Window FBT Fiber Optic Splitter
1310nm 1490nm 1550nm Three Window FBT Fiber Optic Splitter
1310nm 1490nm 1550nm Three Window FBT Fiber Optic Splitter
1310nm 1490nm 1550nm Three Window FBT Fiber Optic Splitter
1310nm 1490nm 1550nm Three Window FBT Fiber Optic Splitter
1310nm 1490nm 1550nm Three Window FBT Fiber Optic Splitter
Specifications
Brand Name :
Fujioptics/OEM/ODM
Model Number :
FJ-SC015
Certification :
ROHS.CE ,ISO9001
Place of Origin :
CHINA
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
L/C, D/P, Western Union
Supply Ability :
10000pcs
Delivery Time :
5-7 working days
Packaging Details :
PE bag ,Carton box
Connector Type :
SC,FC,LC,ST
Ferrule End-face :
PC, UPC,APC
Fiber Mode :
OM1 OM2 OM3
Wavelength :
1310/1550/1490/850/1300
Package :
Steel Tube, ABS Black Box
Structure :
1*2/1*4/1*8/1*16/1*32/1*64
High Light :
fiber optic coupler, fiber optic plc splitter
Description

1310nm 1490nm 1550nm Multimode Three Window FBT Fiber Splitter

Description:

Multimode(OM1 OM2 OM3) FBT Fiber Optic Splitter is a type of optical power management device that is fabricated using Fused Biconical Tape technology.

Feature:

Low Insertion loss

Low PDL

Compact Design

Good channel-to-channel uniformity

Wide Operating Wavelength:

1310/1490/1550

Wide Operating Temperature:

From -40℃ to 85℃

High Reliability and Stability

Application:

FTTX Systems

PON Networks

CATV Links

Optical Signal Distribution

Compliance:

Telcordia GR-1209-CORE

Telcordia GR-1221-CORE

RoHS

Specification:

Type Multimode Standard Fiber Splitters
Coupling Ratio (%) 50/50
Excess Loss (Typical) (dB) 0.5 (0.8)*
Max. Insertion Loss (dB) 3.5 (4.0)*
Uniformity (Max.) (dB) 0.6
Directivity (dB) >40dB
Operating Wavelength (nm) 600-1600
Central Wavelength (nm) 850 or 1310 or 1550
Operating Temperature -40° C - 85° C
Fiber Type Corning Multimode 50/125, 62.5/125 Fiber
Fiber Pigtail Length (m) 1 or Custom on Request
Port Configuration 1x2 or 2x2
Package Dimension Package A,B,C

*For 50/125 um, 62.5/125 um Fiber, 50% coupling ratio

Type Multimode 1x3, 1x4 True Fusion Splitters
Port Configuration 1x3 1x4
Max. Insertion Loss (dB) 6.0 (6.5)* 7.2 (7.6)*
Uniformity (Max.) (dB) 1.2 1.2
Directivity (dB) >40dB
Operating Wavelength (nm) 600-1600
Central Wavelength (nm) 850 or 1310
Operating Temperature -40° C - 85° C
Fiber Type Corning Multimode 50/125, 62.5/125, 100/140 Fiber
Fiber Pigtail Length (m) 1 or Custom on Request
Package Dimension Package B,C

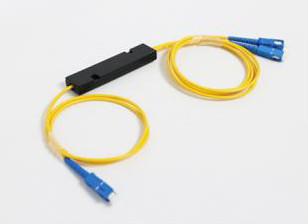

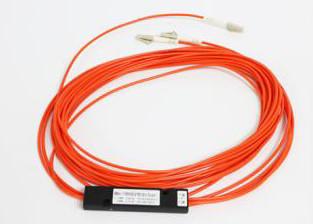

Product Picture:

1310nm 1490nm 1550nm Three Window FBT Fiber Optic Splitter
