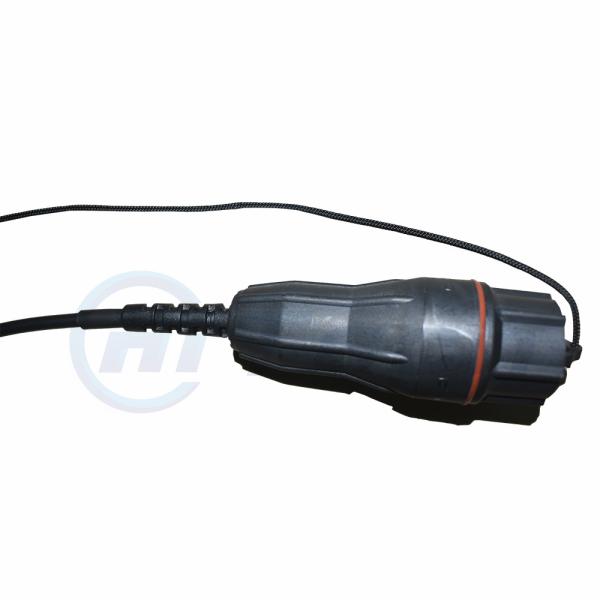

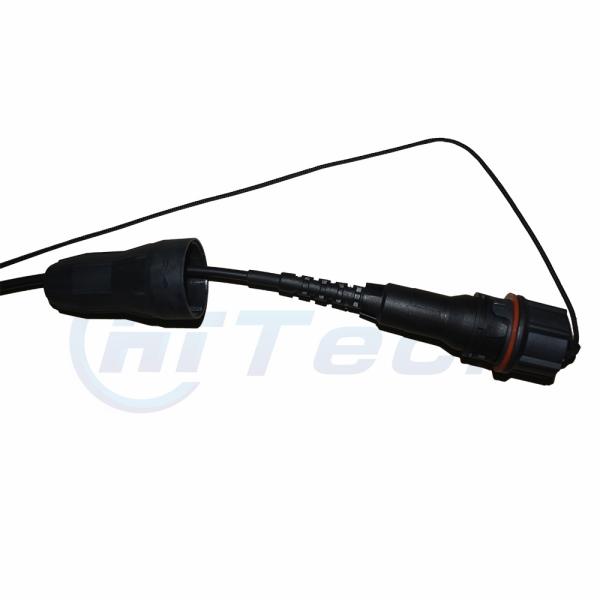

IP68 Waterproof Patch Cord FullAXS-LC Fiber Patch Cord G657A2 Cores
IP68 Waterproof Patch Cord FullAXS-LC Fiber Patch Cord G657A2 Cores
IP68 Waterproof Patch Cord FullAXS-LC Fiber Patch Cord G657A2 Cores
IP68 Waterproof Patch Cord FullAXS-LC Fiber Patch Cord G657A2 Cores
IP68 Waterproof Patch Cord FullAXS-LC Fiber Patch Cord G657A2 Cores
IP68 Waterproof Patch Cord FullAXS-LC Fiber Patch Cord G657A2 Cores
Specifications
Brand Name :
HG or OEM
Model Number :
FullAXS-LC Fiber Patch Cord
Certification :
ROHS,ISO9001,CE
Place of Origin :
China,Shenzhen City
MOQ :
10pcs
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
2000pcs Per Day
Delivery Time :
3-5working days after deposit confirm
Packaging Details :
1pc/PE Bag
Manufacturer :
Yes
Products :
FullAXS-LC waterproof fiber patch cord
Test :
100% Test Before Shipping
Connector :
FullAXS-LC
Samples :
Support
Insertion loss :
≤0.2dB
Quality :
IEC Standard
Ferrules :
CCTC Brand
Description

IP68 Waterproof Patch Cord FullAXS-LC Fiber Patch Cord G657A2 Cores

Our Advantages:

(1) Manufacturer

(2) 1pc MOQ

(3) Zero-Defects QA Program
(4) High Quality Materials
(5) 100% Product Testing
(6) 100% Product Guarantee
(7) Fast Turn Around

HG also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.The Singlemode fiber patch cable meets RoHS compliant, and all cables are 100% optically tested for insertion loss to ensure high quality.

FEATURES

Open bulkhead for easy access to SFP

IP68 water and dust protection

Bulkhead cutout allows for removal of transceiver through the bulkhead

No need to open remote radio head (RRH) for transceiver replacement

Water proof, dust proof and corrosion resistant

Plug has tolerance free design, free floating on Z-axis

APPLICATION

Multi-purpose Outdoor

For connection between distribution box and RRH

Deployment in Remote Radio Head cell tower applications

SPECIFICATIONS:

Fiber Optic Patch Cord / Fiber Optic Pigtail
Feature:
(1) Inner: Ceramic Ferrule
(2) IEC Standard
(3) Green Production, RoHS Standard
(4) Excellent Polished and 100% tested.
(5) High stability various environments
(6) Customize order available		 Mode SM MM
Polish UPC PC
Insertion Loss Typical ≤0.2dB ≤0.3dB
Maximum ≤0.3dB
Return Loss ≥50dB (UPC),≥60dB (APC) ≥35dB
Interchangeability ≤0.2dB
Repeatability ≤0.1dB
Durability ≤0.2dB (1000 times)
Vibration ≤0.2dB (550Hz 1.5mm)
Tensile Strength > 10kg
Temperature ≤0.2dB (-40+85 sustain 100 hours)
Humidity ≤0.2dB (+25+65 93 R.H.100 hours)

Quality Assurance: QC&QA

CCTC brand Ferrules

IP68 Waterproof Patch Cord FullAXS-LC Fiber Patch Cord G657A2 Cores

100% test before shipping

IP68 Waterproof Patch Cord FullAXS-LC Fiber Patch Cord G657A2 Cores

OEM order is also welcome.

Quickly reply, pls contact:

Whatsapp: +86 13652334798

Wechat:

IP68 Waterproof Patch Cord FullAXS-LC Fiber Patch Cord G657A2 Cores
