50mAh OTDR Testing Machine , OTDR Exfo Maxtester 730c
50mAh OTDR Testing Machine , OTDR Exfo Maxtester 730c
50mAh OTDR Testing Machine , OTDR Exfo Maxtester 730c
50mAh OTDR Testing Machine , OTDR Exfo Maxtester 730c
50mAh OTDR Testing Machine , OTDR Exfo Maxtester 730c
50mAh OTDR Testing Machine , OTDR Exfo Maxtester 730c
Specifications
Brand Name :
EXFO
Model Number :
Max-730C
Certification :
CE/ROSH/IOS9001
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500sets
Delivery Time :
5-8 work days
Packaging Details :
stander packing
Dynamic Range :
30/28dB
Port :
Two USB2.0 port
Dead zones :
EDZ 1 m, ADZ 4 m
Distance range :
0.1 to 160 km
Linearity :
±0.05dB
Storage :
2 GB internal memory (20 000 OTDR traces, typical)
Display screen :
5 inch, 240*320 touching scr
Power Input :
10MW
Max Capacity :
50mAh
Description

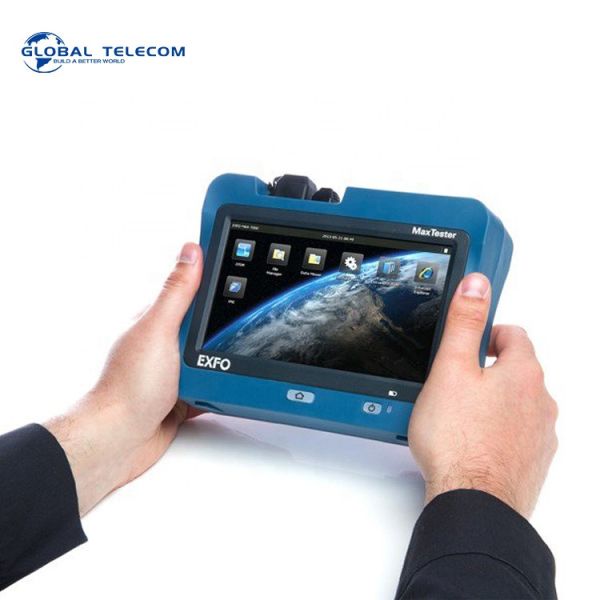

Maxtester EXFO OTDR 730C

Fiber Optic Tester Maxtester exfo max 730C FTTH handle mini exfo otdr sm mm with good price

Features:
Handy, lightweight, powerful, tablet-inspired design
7-inch, outdoor-enhanced touchscreen – the biggest in
the handheld industry
12-hour autonomy
Dead zones: EDZ 1 m, ADZ 4 m
Dynamic range of 36/35dB
Rugged design built for outside plant
50mAh OTDR Testing Machine , OTDR Exfo Maxtester 730c

Application:
FTTx last-mile installation and troubleshooting
Short access network testing
FTTA-fi ber DAS installations
CATV/HFC network testing

50mAh OTDR Testing Machine , OTDR Exfo Maxtester 730c

Display
Two USB 2.0 ports; RJ-45 LAN 10/100 Mbit/s
Storage
2 GB internal memory (20 000 OTDR traces, typical)
Batteries
Rechargeable lithium-polymer battery

12 hours of operation as per Telcordia (Bellcore) TR-NWT-001138
Power supply
Power supply AC/DC adapter, input 100-240 VAC, 50-60 Hz, 9-16 V DCIN 15 Watts minimum
Wavelength
1310/1550nm
Dynamic range
30/28dB
Event dead zone
1m
Attenuation dead zone
4m
Distance range
0.1 to 160 km
Pulse width
5 ns to 20 us
Linearity
±0.05dB
Loss threshold
0.01dB
Loss resolution
0.001dB
Sampling resolution
0.04 to 5m
Sampling points
Up to 256 000
