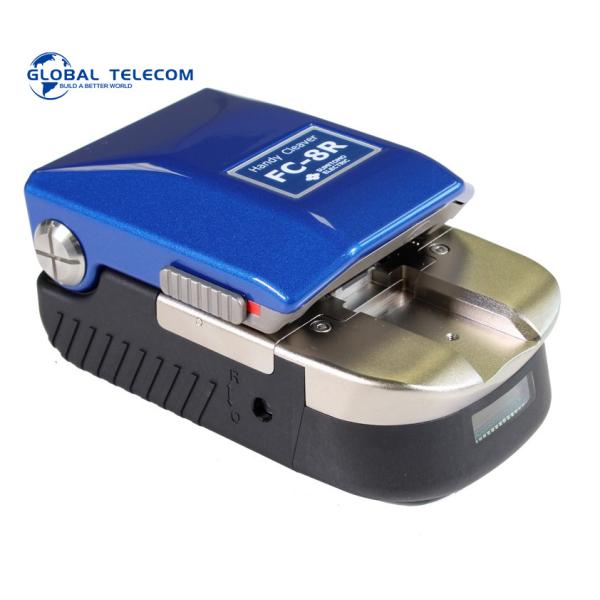

Sumitomo FC 8R Fiber Optic Cleaver Tool Lightweight One Hand Operation
Sumitomo FC 8R Fiber Optic Cleaver Tool Lightweight One Hand Operation
Sumitomo FC 8R Fiber Optic Cleaver Tool Lightweight One Hand Operation
Sumitomo FC 8R Fiber Optic Cleaver Tool Lightweight One Hand Operation
Sumitomo FC 8R Fiber Optic Cleaver Tool Lightweight One Hand Operation
Sumitomo FC 8R Fiber Optic Cleaver Tool Lightweight One Hand Operation
Specifications
Brand Name :
Sumitomo
Model Number :
FC-8R
Certification :
CE/ROSH/IOS9001
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500sets
Delivery Time :
5-8 work days
Packaging Details :
stander packing
Type :
fiber cleaver
Wave ID nm :
850, 980, 1300, 1310, 1490, 1550, 1625
field replaceable blade :
yes,use FCP-20BL(7R)
Battery Operating time :
240 without backlight
Diameter :
125mm
Uncertainty (dB) :
+0.2(5%)
Power Adapter(V) :
8.4
Dimensions :
253x194x84mm
Operating condition :
-10~50℃and0~95%RH(non-condensing)
storage condition :
-40~80℃and0~95%RH(non-condensing)
blade life*1 :
6000fibers(2500fibers*24positions)
Description

FTTH Original Japan fiber cleaver sumitomo FC-8R cleaver fiber cutter fc-8r cleaver optical fiber

Features:

01,Lightweight and compact

02,One hand operation with minimal steps
03,The FC-8R can make 60,000 cleaves. Manual blade rotation and blade height adjustment are not necessary.
04,Advanced automatic fiber offcut collection

Sumitomo FC 8R Fiber Optic Cleaver Tool Lightweight One Hand Operation

Sumitomo FC 8R Fiber Optic Cleaver Tool Lightweight One Hand Operation

Sumitomo FC 8R Fiber Optic Cleaver Tool Lightweight One Hand Operation

Four Points:
01,Smart cleave counter
02,Half-open Suitable when using in one hand
03,Wide-open Suitable when using on the work bench or during the maintenance
04,User selectable blade operation Rotation and fixed mode are available
Sumitomo FC 8R Fiber Optic Cleaver Tool Lightweight One Hand Operation
Sumitomo FC 8R Fiber Optic Cleaver Tool Lightweight One Hand Operation
part number FC-8R-F FC-8R-FC
material sillica glass
claddingdiameter 125um
cleave angle 0.5 degrees with single fiber
off-cut collector/Fiber bin Pre-fitted /TR -FC 8R
automatic blade rotation provided (switchable to Fixed)
Dimensions and weight 58(W)*98(D)*47(H)mm,Approx.260g
Field replaceable blade yes,use FCP-20BL(7R)
Storage condition -40~80 degree C and 0~95% RH (non-condensing)
Blade life*1 60000 fibers (2500 fibers * 24 positions)

Sumitomo FC 8R Fiber Optic Cleaver Tool Lightweight One Hand OperationSumitomo FC 8R Fiber Optic Cleaver Tool Lightweight One Hand Operation
