Indoor Cabling Optical Fiber Drop Cable GJXCH G625D Single Mode
Indoor Cabling Optical Fiber Drop Cable GJXCH G625D Single Mode
Indoor Cabling Optical Fiber Drop Cable GJXCH G625D Single Mode
Indoor Cabling Optical Fiber Drop Cable GJXCH G625D Single Mode
Indoor Cabling Optical Fiber Drop Cable GJXCH G625D Single Mode
Indoor Cabling Optical Fiber Drop Cable GJXCH G625D Single Mode
Specifications
Brand Name :
Purple Horn or OEM
Model Number :
GJYXCH/GJYXFCH
Certification :
CE/Rosh/ISO9001
Place of Origin :
China
MOQ :
10KM
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, D/P, D/A
Supply Ability :
50000KM per month
Delivery Time :
15 workigng days or depends in quantity
Packaging Details :

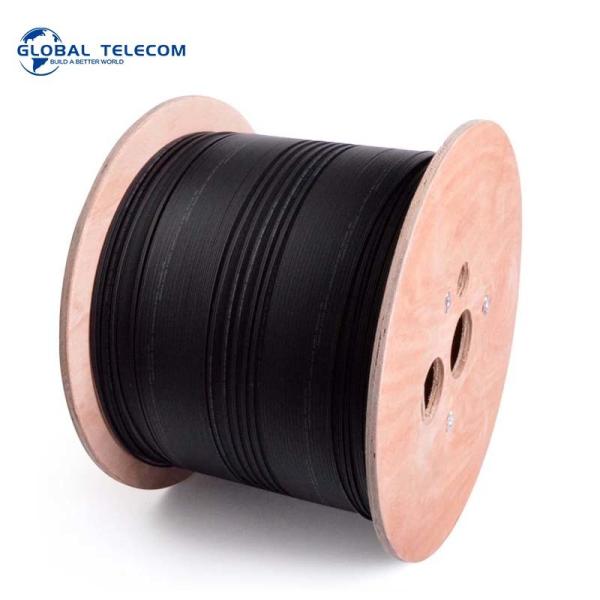

Wooden drum ,length Customized
Application :
Telecommunication FTTH
Cable type :
Outdoor 1 core to 4 core
Fiber Type :
G652D/G657A1/G657A2
Steel wire :
1 center steel +2 steel wire
Length :
1KM per roll, 2KM per roll or Customized
OEN :
Accept
Color :
Black or White
Operating temperature :
-40 to + 75℃
Description

Outdoor 1 core ftth drop cable G625D Single mode fiber GJXCH FTTH fiber optical fiber drop cable

FTTH Drop Cable Singldemode FRP/KFRP/Steel Strength Member Fiber Optic Cable

Description:

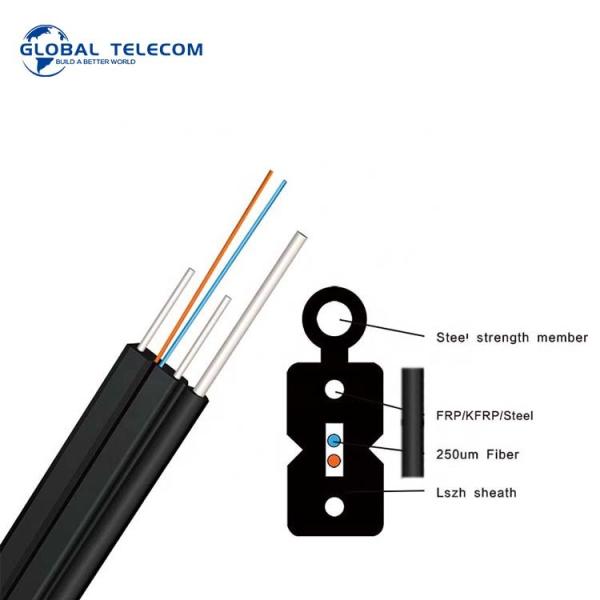

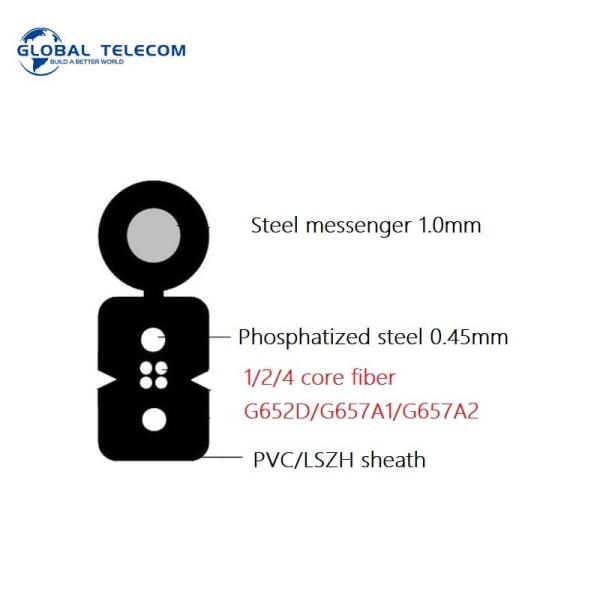

  • The optical fiber unit is positioned in the center.
  • Two parallel Fiber Reinforced Plastics (FRP) are placed at the twp sides.
  • Then the cable is completed with a black or white color LSZH sheath.

Features:

  • Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
  • Two parallel strength members ensure good performance of crush resistance to protect the fiber
  • Simple structure, light weight and high practicability
  • Novel flute design, easily strip and splice, simplify the installation and maintenance
  • Low smoke, zero halogen and flame retardant sheath
  • Simple structure, light weight and high practicability

Application:

  • Used in indoor cabling, especially used for FTTH
  • Used as access building cable

Fiber Characteristic:

Cable code

Fiber

Count

Cable diameter

mm

Cable

weight

Kg/km

Tensilse

Strength

Long/Short term

N

Crush

Resistance

Long/Short term

N

Bedning

Radius

Dynamic/Static

mm
GJXFH-1 1 (2.0±0.2)×(3.0±0.2) 8 30/60 300/1000 15/30
GJXFH-2 2 (2.0±0.2)×(3.0±0.2) 8.5 30/60 300/1000 15/30
GJXFH-4 4 (2.0±0.2)×(3.0±0.2) 10 30/60 300/1000 15/30
GJXH-1 1 (2.0±0.2)×(3.0±0.2) 9 30/60 300/1000 15/30
GJXH-2 2 (2.0±0.2)×(3.0±0.2) 9.5 30/60 300/1000 15/30
GJXH-4 4 (2.0±0.2)×(3.0±0.2) 10 30/60 300/1000

15/30

Indoor Cabling Optical Fiber Drop Cable GJXCH G625D Single ModeIndoor Cabling Optical Fiber Drop Cable GJXCH G625D Single Mode

For more cables information :

Indoor Cabling Optical Fiber Drop Cable GJXCH G625D Single Mode

Indoor Cabling Optical Fiber Drop Cable GJXCH G625D Single Mode
