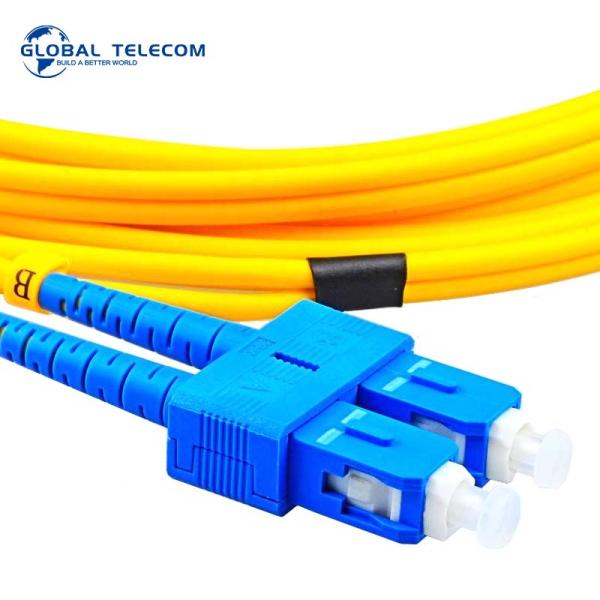

SC UPC LC UPC Fiber Optic Patch Cord SM Duplex For Telecommunications
SC UPC LC UPC Fiber Optic Patch Cord SM Duplex For Telecommunications
SC UPC LC UPC Fiber Optic Patch Cord SM Duplex For Telecommunications
SC UPC LC UPC Fiber Optic Patch Cord SM Duplex For Telecommunications
Specifications
Brand Name :
Purple Horn
Model Number :
SC/UPC-LC/UPC, Fiber Patch Cord
Certification :
CE/ROSH/IOS9001
Place of Origin :
China
MOQ :
200
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
50000sets
Delivery Time :
5-10 work days
Packaging Details :
stander packing
Type :
patchcord, Fiber optic patch cord
Use :
FTTH, Outdoor/Indoor
Diameter :
0.9MM/2.0MM/3.0MM
Connector Type :
SC, LC,FC,ST,MTRJ,MPO,E2000
Technical specifications :
PC/UPC/APC
Fiber Type :
Simplex and Duplex
Quality Control :
100% test before shipping
Description

Optical Fiber Cable SM SC/UPC-LC/UPC Patch Cords

1.Fiber optic patch cord is available in both single mode and multi mode versions.
2.Both single mode and multi mode versions fiber optic patch cord come with a zirconia ceramic ferrule with pre-polished PC,UPC,APC profile and convex spherical end.
3.These end face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability
APPLICATION
1.Telecommunications
2.CATV, LAN, MAN, WAN, Test &Measurement
3.Military industry
4.Medical
FEATURES
1.Low insertion loss and back reflection loss
2.Ferrule end surface pre-domed
3.Excellent mechanical endurance
4.Good in repeatability
5.Good in exchange
6.Green Production, CE, RoHS Standard

SC UPC LC UPC Fiber Optic Patch Cord SM Duplex For Telecommunications

Mode
Single mode
Multimode
Polish
UPC
APC
PC
Insertion Loss
≤0.30dB
≤0.20dB
≤0.20dB
Return Loss
≥50dB
≥60dB
≥30dB
Test Wavelength
1310/1550nm
850/1310nm
Durability(500 Matings)
≤0.2dB
Operating Temperature
-40℃~+60℃
Storage Temperature
-45℃~+85℃
Fire Resistant
IEC 60794-2-30
Standards-Compliant
ROHS,IEC and GR-326
