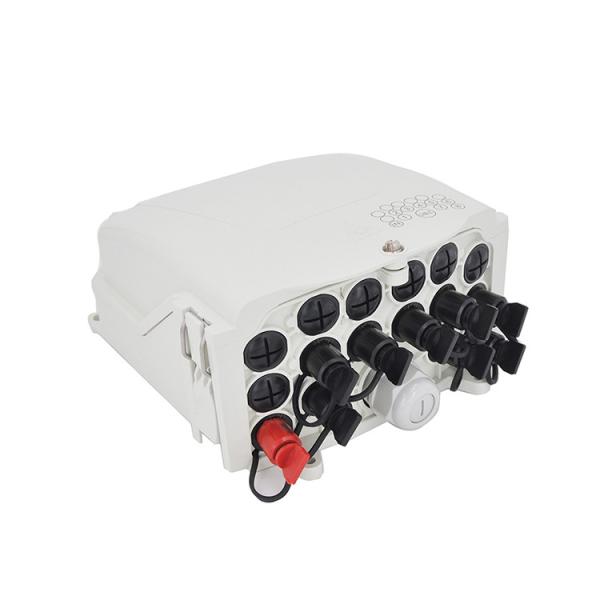

IP66 16 Core Outdoor Fiber Optic Distribution Box 52mm For Huawei Connnector
IP66 16 Core Outdoor Fiber Optic Distribution Box 52mm For Huawei Connnector
IP66 16 Core Outdoor Fiber Optic Distribution Box 52mm For Huawei Connnector
IP66 16 Core Outdoor Fiber Optic Distribution Box 52mm For Huawei Connnector
IP66 16 Core Outdoor Fiber Optic Distribution Box 52mm For Huawei Connnector
IP66 16 Core Outdoor Fiber Optic Distribution Box 52mm For Huawei Connnector
IP66 16 Core Outdoor Fiber Optic Distribution Box 52mm For Huawei Connnector
IP66 16 Core Outdoor Fiber Optic Distribution Box 52mm For Huawei Connnector
Specifications
Brand Name :
UT-King
Model Number :
FDB216Y
Certification :
CE,ROHS,ISO9001
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
T/T, Western Union
Supply Ability :
1000pcs/week
Delivery Time :
3-5days
Packaging Details :
1pcs/box 10pcs/carton
product name :
fiber optic distribution box
material :
70%PC+30%ABS
Color :
white/black
cable prot :
2 in 16 out
Dimension :
220mm*153mm*52mm
Assemmbling method :
pole or wall-mounting
Protection level :
IP66
Keywords :
fiber distribution box
number of Packing :
12pcs/carton
Connector Type :
Huawei Connector
Description

16 Core Outdoor Fiber Distribution Box Optical Fiber Distribution Box For Huawei Connnector

Description

UT-King’s fiber distribution box (FDB) is normally located at the user access point to connect distribution cables and drop cables. In FTTx network, It works with the optical splitter to split optical fibers. to protect optical fiber splicing points, distribute and schedule optical fiber routings. FDB are often outdoor type.

Features

  • Total enclosed structure.
  • Material: wet-proof,water-proof,dust-proof,anti-aging, protection level up to IP66.
  • Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
  • Cable,pigtails,patch cords are running through own path without disturbing each other, cassette type SC/LC/PLC adaptor installation, easy maintenance.

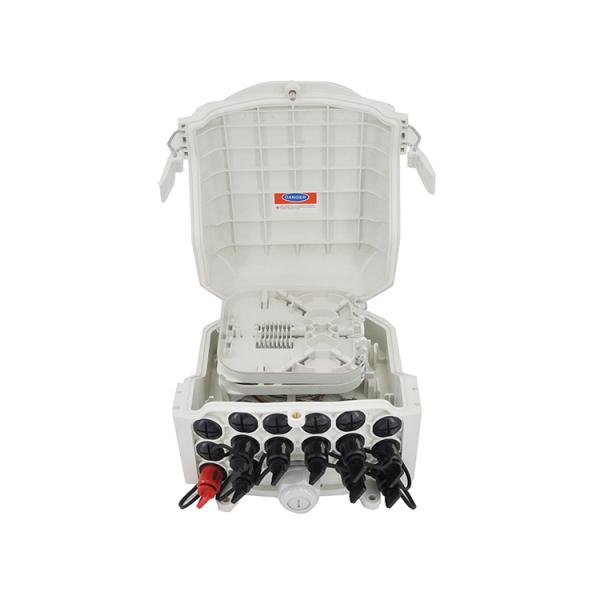

  • Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
  • Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.

Specification

Model UT-FDB216Y
Dimension 220mm*153mm*52mm
Color White,Black or customized
Capacity of FOSC Bunchy:24 cores
Max ratio 1:16
Cable entry ports In 1 Out 16
Diameter of Cable Φ20mm
Assemmbling method pole, wall-mounting, wellhole
Protection level IP66
Outter carton size 625*455*415mm
Inner carton size 295*220*150mm
number of Packing 12 pcs/ctn
weight 18kg /ctn

Detail Images

IP66 16 Core Outdoor Fiber Optic Distribution Box 52mm For Huawei ConnnectorIP66 16 Core Outdoor Fiber Optic Distribution Box 52mm For Huawei ConnnectorIP66 16 Core Outdoor Fiber Optic Distribution Box 52mm For Huawei ConnnectorIP66 16 Core Outdoor Fiber Optic Distribution Box 52mm For Huawei Connnector

Installation:

1．Wall-mounted installation

2．Pole-mounted installation
