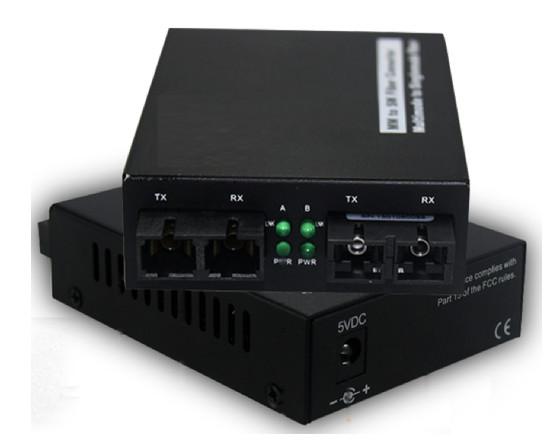

125M/1.25G MM to SM Fiber Converter Support to install into 2U 14 Slot Rack
125M/1.25G MM to SM Fiber Converter Support to install into 2U 14 Slot Rack
Specifications
Brand Name :
FIBERROAD
Model Number :
FR-OEO22U-MS20
Certification :
CE,FCC
Place of Origin :
China
MOQ :
2PCS
Price :
$10/pcs
Payment Terms :
T/T, Western Union
Supply Ability :
1000pcs/month
Packaging Details :
1CTN/50PCS/17KGS/43*28*37CM
Description

Overview

This series single-/multi-mode converters are applied in100Mbps and 1000Mbps fast Ethernet Network, which is wired with both single mode fibers and multi-mode fibers. It can not only fulfill the conversion of single mode and multi-mode at 1310nm wavelength, but also that of 850nm/1310nm and 1550nm wavelengths, which functions as a relay and then makes multi-mode fibers transmit farther. It supports transmission in multi-mode dual fiber, single mode dual fiber and single mode single fiber.

125M/1.25G MM to SM Fiber Converter Support to install into 2U 14 Slot Rack

Features

  • Supporting IEEE802.3z 1000Base-SX/LX standards
  • Supporting full-duplex/half-duplex
  • Supporting conversion between 850nm multi-mode fibers and 1310nm/1550nm single mode fibers
  • Supporting direct and transparent transmission of packets at different lengths
  • Low power consumption, low heat, reliable and stable performance, and long lifetime;
  • Options in single mode in dual fiber, multi-mode in dual fiber, and single mode in single fiber

Application

100Mbps /1000Mbps optical Ethernet long-distance transmitting system

Technical Indexes

Parameter Specifications
Access mode 155Mbps, 1250Mbps
Wavelength 850nm/1310nm/1550nm
Transmission distance

multi-mode Dual-fiber: 220m (62.5/125レm)/500m (50/125レm)

single mode Dual-fiber: 20/40Km;

single mode single fiber: 20/40Km
Port

One multi-mode optical port: Multi-mode: SC (50, 62.5/125レm)

One single mode optical port: single mode: SC (9/125レm)

Single mode Single fiber: SC (9/125レm)
Conversion means Media conversion
BER <10-9
MTBF 100,000 hours
LED indicator

PWR (power supply)

SM LINK (single mode optical link)

MM LINK (multi-mode optical link)
Power supply DC 5V
Power consumption <3W
Operating temperature -10~55ìC
Operating humidity 5%~90%
Maintaining temperature -40~70ìC
Maintaining humidity 5% ~ 90% non-condensing
