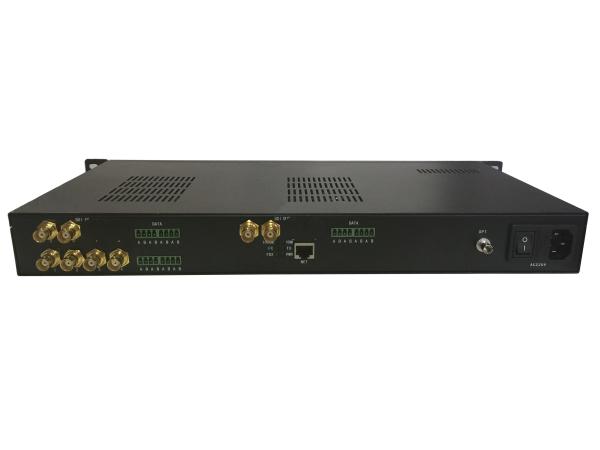

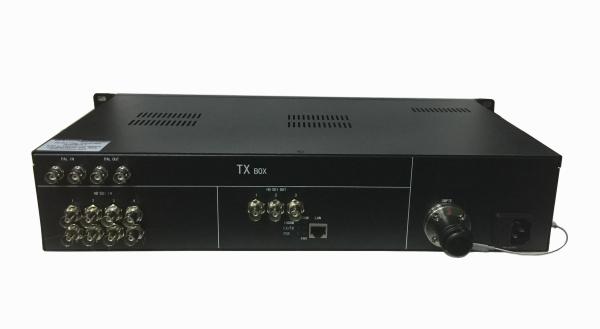

6-ch forward and 2-ch reverse broadcast 3G-SDI Extender over Fiber Optic cable
6-ch forward and 2-ch reverse broadcast 3G-SDI Extender over Fiber Optic cable
6-ch forward and 2-ch reverse broadcast 3G-SDI Extender over Fiber Optic cable
6-ch forward and 2-ch reverse broadcast 3G-SDI Extender over Fiber Optic cable
Specifications
Brand Name :
Fiberlinker
Model Number :
FL4062P
Certification :
CE FCC
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100 sets
Delivery Time :
5 days
Packaging Details :
Carton
Description

1. Overview
Fiber Linker’s 3G-SDI Fiber Optic Extender offers the digital transmission of fully uncompressed SDI (270Mbps),HD-SDI (1.485Gbps) , 3G-SDI(2.97Gbps)by single fiber overbroadcast quality with audio, RS485/RS232/RS422 serial data, Loopback output and IP Ethernet transmission. It is broadcasting quality, could compatible with ASI, TS stream.
2. Features
Our 3G-SDI series support hot plug, stand-alone, 1U rack mount and 4U rack mount, we also could add other business or functions according to the requirements of customers. OEM&ODM is acceptable. If you have any requirements about video transmission over fiber optic, just contact us, we will supply the best solution
3. Applications

Remote OB Van/Truck Video Feeds;
Broadcast Studio Camera Feeds;
Long-haul Signal Transport;
TV station/video conference;
Lecture Hall Projector Connectivity;
Medical/Surgical Room Broadcast;
Small corporate campus video links
4. Ordering Information
6-ch forward, 2-ch reversed 3G-SDI extender over fiber optic
FL4062P : 6-ch forward, 2-ch reversed 3G-SDI, compatible with ASI, TS, 1-ch 1000M Ethernet, single fiber, single mode, FC or ST, 20KM, 1U rack mount. Support Pathological SDI signal.

5. Specifications

3G-SDI TX 3G-SDI RX
channels 6-ch input, 2-ch output Channels 2-ch input, 6-ch output
Signal standard SMPTE 424M/425M,292M, 259M, 297M, 305M, 310M,M2S,DVB-ASI, DVB-SSI and other Telecom/Datacom rate (19.4Mb/s -2.97Gb/s) Signal level 800mV nominal
Reflection loss >15DB Rise/drop time 200ps nominal
equalization 1694Acable,>200m@1485Mbps,Belden 1694A cable, >350m@270Mbps,Belden 1694Acable>100m@2970Mbps Reflection loss > 15dB
connector 75Ω BNC Overshoot 10% amplitude
Jitter: < 0.3UI


Optic Others
Channels 1 Transmission distance 20KM
Type single mode (multimode optional) Operating temperature -45°C~+50°C
Wavelength 1310nm /1550nm Power 1A@12VDC
Reflection loss > 15dB Average time trouble-free >100000 hours
Connector FC/PC (SC/PC optional) Case 1U rack mount
Audio(optional) Data(optional)
Channels 4-ch forward audio(terminal block) Channels 4-ch data(terminal block)
Max.input/output level

-+15 dBu

 Data rate

-+15 dBu
Frequency Response 20Hz-24KHz,±0.1dB Connector terminal block
SNR 85dB(A weighted)
Crosstalk < -90dB









Any interest, please contact
Email: alston@fiberlinker.com skype: alston224
