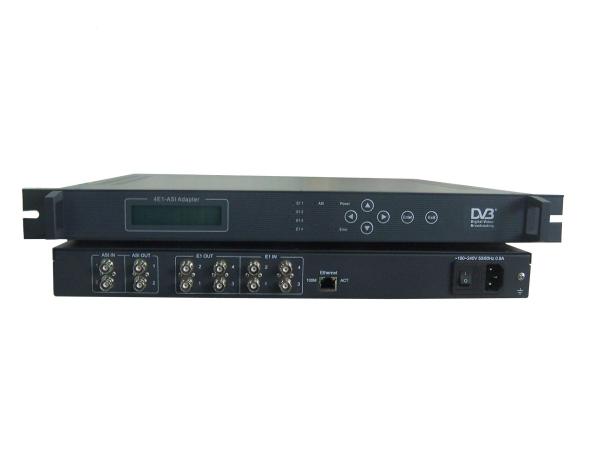

ASI to 4 E1 Bidirectional Adapter
ASI to 4 E1 Bidirectional Adapter
Specifications
Place of Origin :
China
Brand Name :
Fiber Linker
Model Number :
FL-5114
MOQ :
1PCS
Packaging Details :
Carton
Delivery Time :
5day
Payment Terms :
TT, Westen Union, Paypal
Supply Ability :
100pcs
Description

1. Overview

ASI to 4E1 bidirectional adapter is cost-effective signal adaptation device, and it is based on basis idea of transmission of digital television signal for design, and could make TS stream and E1 interface signal of SDH/PDH converted mutually, realize adaptation of heterogeneous network signal format. This network adapter could adapt 4-channel bidirectional E1, channel for the transmission of a set of standard-definition digital TV programs.

2. Features

  • Interface comply with G.703 E1 standard
  • Bidirectional adapter functionality of E1 and MPEG-2 TS
  • Support FEC, RX error-correcting code
  • ASI transmission stream, speed/burst format adaptive
  • Network management interface is convenient for remote management
  • Full hardware realization, efficient and stable
  • Large cache, anti-burst stream caused by mosaic
  • Anti-network delay, no dropped-packet situation
  • Real-time stream monitoring
  • Support network management, local and remote control
  • Chinese and English LCD display, convenient and flexible to operate
  • Real-time stream monitoring; local and remote control

3. Specification

Interface

Input interface (G.703 standard)

4 E1, BNC connector, 75Ω

2 ASI, BNC connector, 75Ω

Packet format: 188 or 204 byte

Data rate: No frame format E1 (2Mbps)

Output interface (looping output)

2 ASI, BNC connector, 75Ω

4 E1, BNC connector, 75Ω

Interface Features

ASI-DVB standard

Network Management Interface

1 IP, RJ45 interface, 10/100M adaptive

ASI Interface

BNC Connector, 75Ω

TS standard: ISO13818-1

Input effective rate: Max. 2Mbps (every channel)

TS packet format:188/204bytes (Automatic Identification)

TS input mode: uniformity / packet bursting / irregular

Power-down status of preservation

Save the last used status, the encoder recovers power and could start automatically

and correctly

Radiation and safety requirements

Comply with GB13837-92 and GB8898-88 standard

Operating environment

Operating temperature

0℃～＋45℃

Average power consumption

10.5 W

Relative temperature

10-90%

No failure of average working time

﹥100000 hours

Physical features

Volume

48.3CM * 35.0CM *4.4CM(19.0*13.8*1RU)

weight(KG)

4.5KG

Keyword: E1 to ASI adapter, 4E1 to ASI adapter, ASI to E1 adapter , ASI to 4E1 adapter
