Handheld Fiber Laser Marking Machine 20W 30W 50W 100W Portable Laser Marker For Metal
Handheld Fiber Laser Marking Machine 20W 30W 50W 100W Portable Laser Marker For Metal
Handheld Fiber Laser Marking Machine 20W 30W 50W 100W Portable Laser Marker For Metal
Handheld Fiber Laser Marking Machine 20W 30W 50W 100W Portable Laser Marker For Metal
Handheld Fiber Laser Marking Machine 20W 30W 50W 100W Portable Laser Marker For Metal
Handheld Fiber Laser Marking Machine 20W 30W 50W 100W Portable Laser Marker For Metal
Handheld Fiber Laser Marking Machine 20W 30W 50W 100W Portable Laser Marker For Metal
Handheld Fiber Laser Marking Machine 20W 30W 50W 100W Portable Laser Marker For Metal
Specifications
Brand Name :
COTAJET
Model Number :
CL800D
Certification :
CE,Rohs,SGS
Place of Origin :
Wuhan,China
Payment Terms :
TT,L/C,Western union
Delivery Time :
5-7 work day
Material :
Portable Laser marking
Product ID :
CL800D
Product Tags :
Fiber Laser Marking Machine
Laser Power :
20W/30W/50W/100W
Laser Life :
＞100,000 hours
Power Supply :
90V~240V 50/60HZ
Power consumption :
300-500W
Marking Range :
75X75mm(Standard)
Optional :
150X150mm,300X300mm
Price :
Negotiable
Packaging Details :
Standard Packaging
Description
Handheld Fiber Laser Marking Machine - Portable Laser Marking for Metal
Compact and portable solution for permanent marking on metal surfaces including aluminum lids, cans, bottles, and oil/gas pipelines. Ideal for industrial identification needs.
Key Specifications
Model Number CL800D
Laser Power Options 20W/30W/50W/100W
Laser Life ＞100,000 hours
Power Requirements 90V~240V 50/60HZ
Power Consumption 300-500W
Standard Marking Area 75×75mm
Optional Marking Areas 150×150mm, 300×300mm

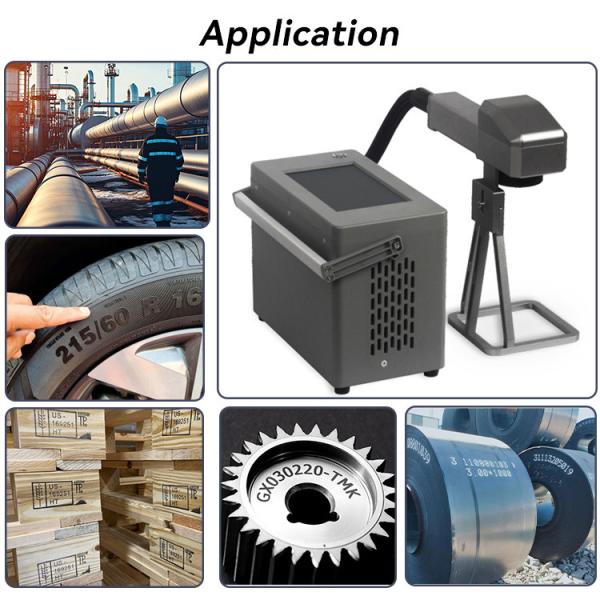

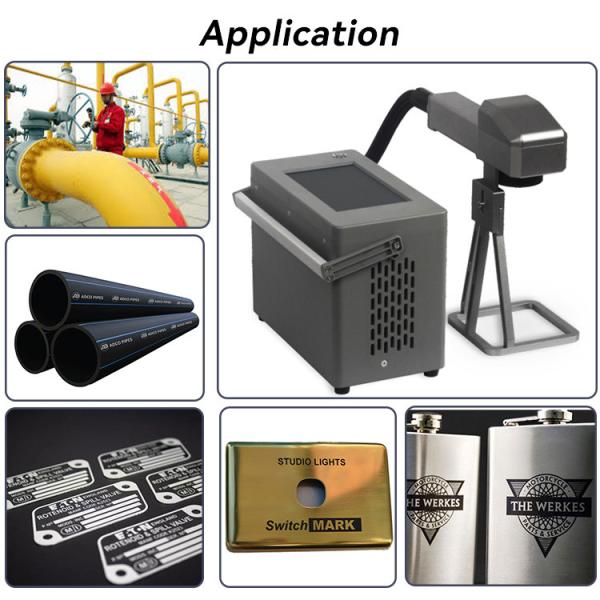

Applications
  • Oil and gas pipeline marking
  • Firearms and ammunition identification
  • Industrial nameplates and tags
  • Plastic and rubber component marking
  • Security seals and bolt identification
Advanced Features
  • High-precision 2D scanning head for fast marking (under 20s)
  • Supports multiple barcode types: CODE39, CODE128, QR, Data Matrix, etc.
  • Compact design (≤6kg total weight) with portable carrying options
  • Intuitive touch screen operation with red light preview
  • Comprehensive safety features including emergency stop
  • Long battery life (4 hours operation, 8 hours standby)
  • Remote control via Wi-Fi, Bluetooth, or USB
Technical Parameters
Parameter 20W Model 30W Model
Output Power ≥23W ≥34W
Marking Speed ≤12000mm/s
Minimum Line Width 0.012mm
Repetition Accuracy 0.003mm
Positioning Mode Blue light indication
Production Line Speed 0~130m/min (material dependent)
Software & Compatibility
  • Multilingual interface (English, Spanish, German, Chinese, etc.)
  • Multi-user management system
  • Linux operating system
  • Supports BMP/DXF/HPGL/JPEG/PLT file formats
  • Power failure data protection
  • Overspeed alarm function
Physical Specifications
Net Weight 6kg
Dimensions 530×140×165mm
Operating Environment 0℃－45℃; humidity ≤95%
Product Images
Handheld Fiber Laser Marking Machine 20W 30W 50W 100W Portable Laser Marker For Metal Handheld Fiber Laser Marking Machine 20W 30W 50W 100W Portable Laser Marker For Metal Handheld Fiber Laser Marking Machine 20W 30W 50W 100W Portable Laser Marker For Metal
