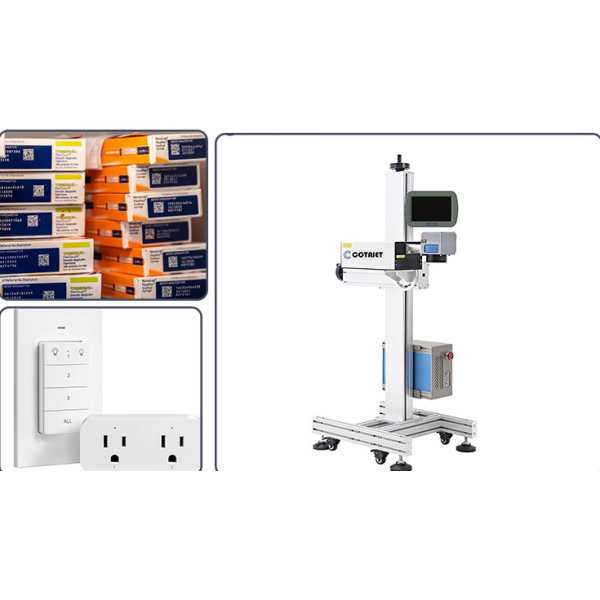

CL600A 5W Flying UV Laser Marking Machine 400W Visible Traceability
CL600A 5W Flying UV Laser Marking Machine 400W Visible Traceability
Specifications
Brand Name :
COTAJET
Model Number :
CL600A
Certification :
CE,Rohs,SGS
Place of Origin :
Wuhan,China
Payment Terms :
TT,L/C,Western union
Delivery Time :
5-7 work day
Power :
3W/5W/10W
Marking speed :
≤12000mm/s
controller :
10.2 inch touch controller
Marking range :
110X110mm(Standard) Optional:200X100mm,500X500mm
Power Supply :
220V/50HZ
Power consumption :
400W
Price :
Negotiable
Packaging Details :
Standard Packaging
Description
CL600A 5W Flying UV Laser Marking Machine Visible Traceability
Product Specifications
Attribute Value
Power 3W/5W/10W
Marking speed ≤12000mm/s
Controller 10.2 inch touch controller
Marking range 110X110mm (Standard) Optional: 200X100mm, 500X500mm
Power Supply 220V/50HZ
Power consumption 400W
Product Description

COTAJET UV Laser Marking System for Cosmetics & Personal Care delivers high-speed batch coding and expiration dating on shrink film packaging at rates up to 2000 characters/second, optimizing production throughput while reducing line utilization costs. The UV laser's cold-marking technology minimizes thermal stress on substrates—surpassing CO₂ and fiber lasers—to prevent packaging damage. Produces permanent, high-contrast codes with smooth edges for enhanced traceability and readability.

Key Features
  • Anti-Counterfeiting Compliance: Generates crisp, vision-readable 2D codes on white HDPE, LDPE, and synthetic fiber materials to meet pharmaceutical, medical device, and cosmetic industry regulations.
  • Material Integrity: Cold-marking process preserves substrate structure while enabling lifetime product tracking.
  • Versatile Application: Ideal for expiration dates, batch codes, and traceability markers on cosmetics, personal care, and home care packaging.
Technical Parameters
Project UV-3W UV-5W UV-10W
Characteristic All aluminum sandblasting oxidation
Laser The service life is more than 20000-30000 hours
Laser wavelength 355nm
Output power ≥4.2W ≥6.5W ≥12W
Marking speed ≤12000mm/s
Controller 10.2 inch touch controller
Cooling system Water cooling (with chiller)
Focus lens 210mm
Minimum linewidth 0.01mm
Repetition accuracy 0.001mm
Marking range 110mm*110mm (optional)
Positioning mode Blue light indication
Number of rows Any line within the marking range
Production line speed 0~130m/min (depending on the material)
Software Specification
Multilingual English, Spanish, German, Chinese, Russian, Arabic, etc
Jurisdiction Multi user management authority
Operating system Linux system
Inkjet mode Static, analog, encoder
Reserved signal Start, print status, finish, fault
Data protection With power failure data protection energy
Monitor Provide overspeed alarm function
De crossing Automatic removal of intersections
Coding software Single and double machine code sending
Support Type Specification
Typeface Chinese and English, numbers, traditional, etc
File format BMP/DXF/HPGL/JPEG/PLT
Bar code CODE39, CODE128, CODE126, QR
Servicing Parameters Specification
Power Supply 220V/50HZ
Power consumption 800W
Net weight of machine 40kg
Overall dimension 640mmX160mmX206mm
Environment requirement External temperature 0℃－45℃; humidity ≤95%
