120W 200W Automatic Laser Glass Sanding Machine for Mirror Glass Sandblasting Drilling Paint Removing
120W 200W Automatic Laser Glass Sanding Machine for Mirror Glass Sandblasting Drilling Paint Removing
120W 200W Automatic Laser Glass Sanding Machine for Mirror Glass Sandblasting Drilling Paint Removing
120W 200W Automatic Laser Glass Sanding Machine for Mirror Glass Sandblasting Drilling Paint Removing
120W 200W Automatic Laser Glass Sanding Machine for Mirror Glass Sandblasting Drilling Paint Removing
120W 200W Automatic Laser Glass Sanding Machine for Mirror Glass Sandblasting Drilling Paint Removing
120W 200W Automatic Laser Glass Sanding Machine for Mirror Glass Sandblasting Drilling Paint Removing
120W 200W Automatic Laser Glass Sanding Machine for Mirror Glass Sandblasting Drilling Paint Removing
120W 200W Automatic Laser Glass Sanding Machine for Mirror Glass Sandblasting Drilling Paint Removing
120W 200W Automatic Laser Glass Sanding Machine for Mirror Glass Sandblasting Drilling Paint Removing
Specifications
Brand Name :
Perfect Laser
Model Number :
PEDB-190
Certification :
CE /ISO /TUV /SGS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
400 sets per month
Delivery Time :
3-7 working days
Packaging Details :
Sea-Worthy Packing or Air-Worthy-Packing
Product Name :
120W 200W Automatic Laser Glass Sanding Machine
Laser type :
Anti-high reflection fiber laser source
Laser power :
120W/200W can be customized
Laser wavelength :
1064nm
Drilling s :
φ1-50mm
Processing accuracy :
±0.03mm, no splicing marks
Film removal speed :
0.5m/min, line width 3mm
Sand blasting speed :
0-40m/min
Processing product size :
Maximum 2500 * 1600mm
Overall dimensions :
2480x3800x1785mm
Description
120W 200W Automatic Laser Glass Sanding Machine for Mirror Glass Sandblasting Drilling Paint Removing
Model: PEDB-190
★ Machine Introduction

The laser glass sanding machine applies laser beam processing technology to accurately regulate laser energy and focal positioning for efficient glass surface treatment. Compared with traditional sandblasting processes, it eliminates complicated operating steps, environmental pollution, and low processing efficiency.

Using a non-contact processing method, the machine enables the creation of complex and customized patterns with simple operation. In addition to surface sanding, the laser glass sanding machine also supports drilling and coating removal, providing multifunctional processing in a single system. With high efficiency and low environmental impact, it offers a modern solution for intelligent glass sandblasting applications.

120W 200W Automatic Laser Glass Sanding Machine for Mirror Glass Sandblasting Drilling Paint Removing

★ Machine Features
1. High Processing Efficiency & Low Energy Consumption

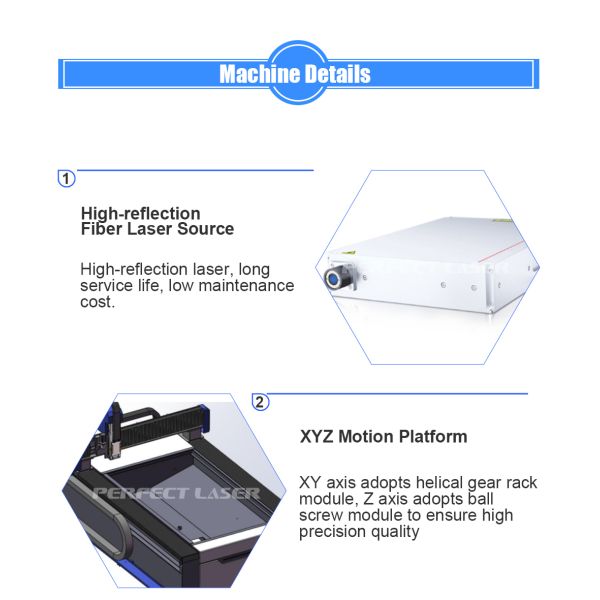

The laser glass sandblasting machine is equipped with a MOPA fiber laser, delivering precise and fast processing performance. Its compact structure and reduced power consumption support efficient operation while minimizing energy use.

2. Streamlined Production Process

By adopting laser-based processing technology, the machine completes glass sanding in a single procedure, improving production speed and operational flexibility.

3. Large Working Area

With a maximum processing size of 2.5 m × 1.6 m, the laser glass sanding machine can also be customized to meet different smart mirror and glass product requirements.

4. Stable Continuous Operation

Designed for long-term use, the system supports continuous 24-hour operation. The maintenance-free structure and zero consumables help reduce downtime and operating costs.

5. Flexible Processing & Automation Options

Suitable for silver mirrors, aluminum mirrors, eco-friendly glass, and other materials, the laser glass sandblasting machine supports multiple customization options, including automatic loading and unloading, multi-station processing, visual positioning, and modular system expansion. These features make it suitable for automated and unattended mass production.

120W 200W Automatic Laser Glass Sanding Machine for Mirror Glass Sandblasting Drilling Paint Removing

120W 200W Automatic Laser Glass Sanding Machine for Mirror Glass Sandblasting Drilling Paint Removing

★ Application of the Laser Sanding Machine

Laser glass sandblasting machines are widely used in construction, automotive manufacturing, household products, furniture, electronics, measuring instruments, and related industries.

120W 200W Automatic Laser Glass Sanding Machine for Mirror Glass Sandblasting Drilling Paint Removing

★ Technical Data
Product nameMirror Laser Sandblasting Drilling Paint Removing Machine
Laser typeAnti-high reflection fiber laser source
Laser power120W/200W can be customized
Laser wavelength1064nm
How it worksManual loading, automatic processing
Processing timeDepends on the product
XY equipment effective travel2500*1600mm can be customized
Drilling sizeφ1-50mm
Processing accuracy±0.03mm, no splicing marks
Film removal speed0.5m/min, line width 3mm
Sand blasting speed0-40m/min
Processing thickness3-8mm
Processing product sizeMaximum 2500 * 1600mm

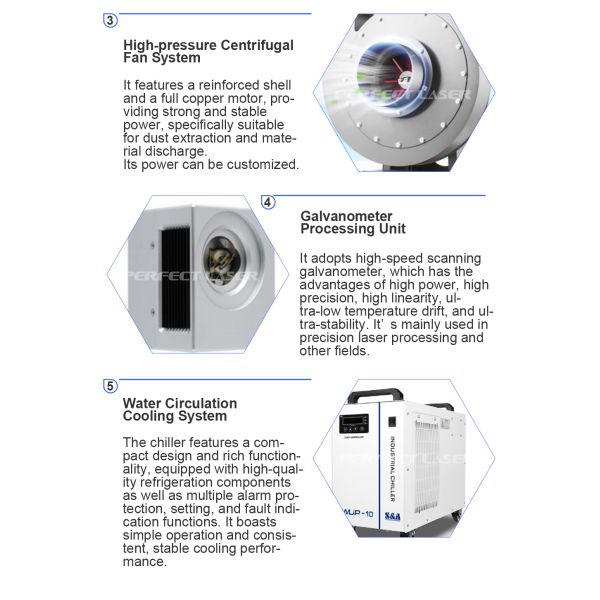

Laser system cooling methodWater Cooling
Dust collection systemCustomized hole dust extraction structure
System gas0.6-0.8MPa
System power consumptionAC220V 50/60HZ
Overall dimensions2480x3800x1785mm
Machine weight≤2T
★ Packaging & Delivery
  • Prompt deliver at the very day.
  • Sophisticated and professional logistic agent.
  • Well-trained and disciplined packing team.
  • After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
★ Competitive Advantages
  • We offer high quality products at competitive price in quick delivery.
  • 100% custom pass guaranteed.
  • Good after-sale service.
  • Flexible and Untraceable payment terms.
  • Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
