Specifications
Brand Name :
Perfect Laser
Model Number :
PEDB-100A
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
500 sets/per/month
Delivery Time :
7-12 Working Days
Packaging Details :
Sea-Worthy Packing or Air-Worthy Packing
Product Name :
20W Fiber Laser Marker
Laser Wavelength :
1064±5nm
Marking Area :
100–150 mm (optional)
Marking Depth :
≤ 1 mm (depends on power and marking time)
Marking Speed :
Marking Speed
Repeat Accuracy :
±0002
Cooling Method :
Air-cooled
Net Weight :
8.2 kg
Description



20W Mini Fiber Laser Marker Compact & High-Efficiency Laser Engraving Machine for Metal & Plastic


(Model:PEDB-100A)


★ Product Introduction


This mini laser engraving machine is a product of Perfect Laser. It uses high-intensity pulsed laser beams to mark directly on the surface of objects, creating extremely dark, high-contrast markings.

The marking area is customizable, with a marking depth of ≤1mm, a maximum marking speed of up to 10,000mm/s, a repeat positioning accuracy of ±0.002mm, a minimum marking line width of 0.1mm, and a minimum character height of 0.15mm. It can meet the requirements of fine marking and engraving in industries such as precision parts, hardware, and electronic components.

It adopts an air-cooling design without the need for water cooling. The whole machine weighs only 8.2kg and features a compact structure for easy movement and placement. As a practical small laser engraving machine, it supports Windows operating systems, is compatible with 220V/50Hz power supply (110V available), and operates stably in an environment of 0–40℃ and 30%–85% RH with no oil mist or condensation. It is an ideal choice for small-batch processing and portable marking.


★ Product Features


1.Stable Performance: Equipped with a 20W fiber laser, the output power stability is < 3%, with a beam quality of M² ≤ 1.4, ensuring uniform and consistent marking results.

2.Mini & Portable Design: Weighing only 8.2kg with dimensions 330×275×520 mm, this small laser engraving machine is desktop-friendly, easy to relocate and flexibly deployed in various work scenarios.

3.Efficient Air Cooling: Adopts air cooling system, eliminating the need for complex water cooling devices. Simple maintenance and low operating cost.

4.Ultra-Fine Marking Precision: Repeat positioning accuracy ±0.002 mm, minimum marking line width 0.1 mm, minimum character height 0.15 mm, enabling ultra-fine marking and engraving.

5.Flexible Marking Area: Optional 100–150 mm marking range, depth ≤1 mm, speed up to 10,000 mm/s, balancing high efficiency and precision for the mini laser marking machine.

6.Wide Voltage Compatibility:Power supply supports 220V/50Hz and is compatible with 110V, adapting to power grids in different regions.

7.User-Friendly Operation: Supports Windows operating system for easy operation. Stable and reliable under mild working conditions: 0–40℃, 30% RH–85% RH.

8. Durable & Low Consumption: No consumables required, long laser service life, and easy daily maintenance. Ideal for long-term small-batch processing and portable marking applications.




★ Application

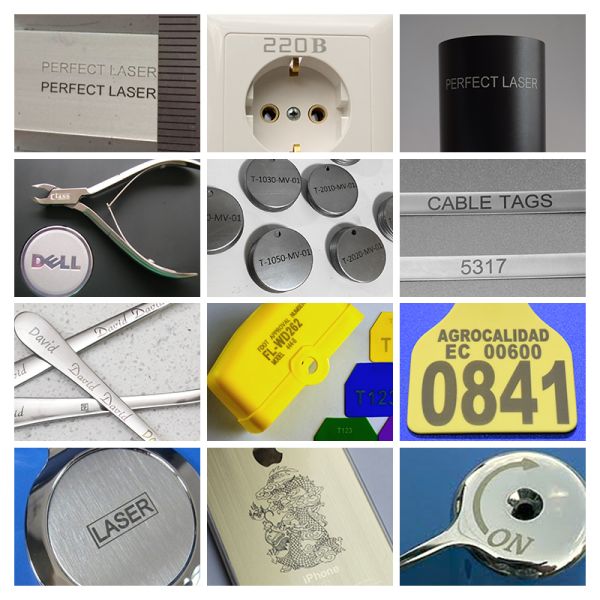

This mini fiber laser marking machine is widely used for various metal materials such as stainless steel, iron, copper, aluminum and silver, as well as some non-metal materials including PC, ABS, PVC and PC+ABS.


As a multifunctional mini laser engraving machine, its superior precision, stability and zero-consumable design expand its application scope across hardware tools, electronic components, jewelry, automotive parts, medical devices, precision molds and daily hardware. For businesses seeking a compact and reliable solution, this small laser engraving machine provides stable, high-quality marking for both small-batch orders and on-demand processing services.

20W Mini Fiber Laser Marker Compact & High-Efficiency Laser Engraving Machine for Metal & Plastic


20W Mini Fiber Laser Marker Compact & High-Efficiency Laser Engraving Machine for Metal & Plastic



★ Technical Data

20W Mini Fiber Laser Marker Compact & High-Efficiency Laser Engraving Machine for Metal & Plastic


Product Name

20W Mini Laser Engraving Machine

Model

PEDB-100A

Power

20 W

Pulse Repetition Frequency

27-60khz

Beam Quality M²

≤1.4

Laser Wavelength

1064±5nm

Output Power Stability

<3%

Marking Area

100–150 mm (optional)

Marking Depth

≤ 1 mm (depends on power and marking time)

Marking Speed

≤10000mm/s

Repeat Accuracy

±0002

Minimum Marking Line Width

0.1mm

Minimum Character Height

0.15mm

Cooling Method

Air-cooled

Power Supply

500W1220V/50Hz

(Compatible with 110V Power Supply)

Temperature & Humidity

0-40℃,30%RH-85%RH

Oil Mist & Condensation

Not allowed

Supported Operating System

Windows Operating System

Dimensions

330mm x 275mm x 520mm

Packaging Dimensions

537mm X 550mm x200mm

Net Weight

8.2 kg


20W Mini Fiber Laser Marker Compact & High-Efficiency Laser Engraving Machine for Metal & Plastic

★ Why Choose Perfect Laser


✅ Over 20 years of experience in industrial laser systems and automation.
✅ Trusted by 1,000+ customers in more than 180 countries.
✅ Strict quality control and factory calibration to ensure stable performance.
✅ ODM customization available for global partners.
✅ Fast delivery and 24/7 after-sales support worldwide.
✅ Strategic partner of RAYCUS, JPT, and SINO-GALVO, providing reliable and high-quality components.
✅ Offering customized development of laser marking software for diverse applications.
✅ A professional solution provider for complete laser marking systems.




★ FAQ


1. Q: Are you a manufacturer or a trading company?


A: We are a manufacturer established in 2005 ,now in Wuhan CN. Committed to providing the majority of users with economic, high-quality laser equipment. Welcome to our factory.



2. Q: How long does it take to learn the laser?


A: The software is easy to learn with teaching video, also we can help you to learn the laser online. Usually it will take a few hours to operate the laser ,But it will take a bit of trial and error to learn what speed and power settings to use with different materials. So we include a comprehensive guide with your system that has recommended speed and power settings for various materials with which you will be working.



3. Q: Will the laser machine be safe during transport?


A:

(1) Inner: plastic stretch film and white foam.
(2) Middle: Secured with screws.
(3) outside: standard export wooden case. So,the laser machine will send to you safely. In case the machine was damaged , please contact us ,We will process the replacement as soon as possible to ensure that it arrives in time .



4. Q: What should I do when something goes wrong with the laser?


A: We offer a two-year warranty. In warranty, we will provide the broken items free of charge. Beyond the warranty period, we still provide maintenance service.



5. Q: How deep can it engrave into metal?


A: All metals can be engraved into with some depth; However, some metals are more amenable to depth engraving. Softer aluminum material will engrave with depth with only a few passes.
