Specifications
Brand Name :
Perfect Laser
Model Number :
PE-S10
Certification :
CE
Place of Origin :
Hubei
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P
Supply Ability :
800 Unit per Year
Delivery Time :
7 - 10 working days
Packaging Details :
Sea-Worthy Packing or Air-Worthy Packing For UV Laser Engraving Machine
Price :
Negotiable
Product Name :
3D Wall Floor Ground Printer Printing Machine
Data Transmission Method :
Usb2.0/3.0/Bluetooth/Wireless Control (Optional)
Ultrasonic Sensor :
Pair
Length * Width * Height (Host) :
40cm*32cm*250cm
The Fastest Painting Speed :
64 Square Meters/Hour
Highest Painting Accuracy :
9600dpi
nk Consumption Per Square :
6-10Ml
Nozzle Model :
Epson Print Head (Industrial Grade)
Nozzle Guard :
Have
Head Ink Tank :
Can Be Split And Transported Separately
Description

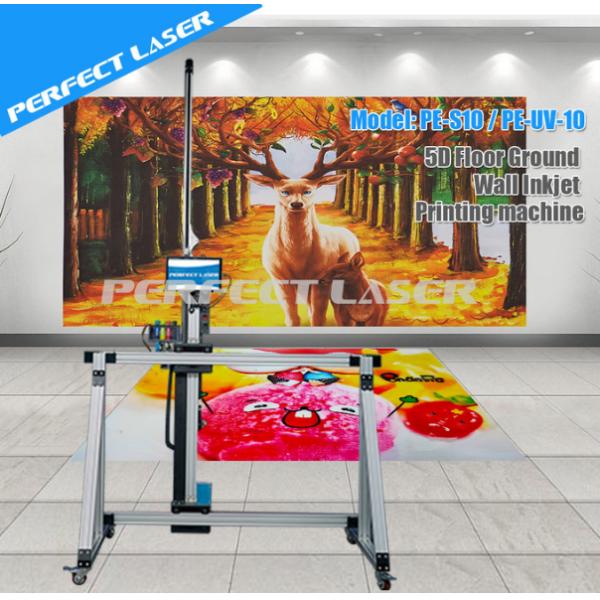

3D Floor Wall Printing Machine Vertical Ground Printing Machine for Mural Art/Interior Decoration/Outdoor Advertising

Model: ​PE-S10

Machine Introduction

Perfect Laser’s 3d floor printing machine features high-definition Epson print heads from Japan, achieving a maximum speed of 64/h. It delivers rapid, single-pass printing with vivid, fade-resistant colors, handles intricate designs effortlessly, and combines eco-friendly operation with modern style, making it a popular new choice.

3D Floor Wall Printing Machine Vertical Ground Printing Machine for Mural Art/Interior Decoration/Outdoor Advertising

Machine Features

1. The 3d floor printing machine features dual ultrasonic sensors with bi-directional surface tracking, allowing automatic positioning and adjustment for uneven floors or walls.

2. AI-powered image processing delivers fast and efficient printing.

3. Comes with an 11.6-inch touchscreen for clear and easy operation.

4. Negative-pressure ink system ensures continuous ink flow, prevents dust contamination, extends nozzle life, and makes the 3d floor printing machine ideal for outdoor environments.

5. One-button automatic printhead cleaning eliminates the need for disassembly, keeps ink channels smooth, and protects the printhead from external conditions.

6. High precision printing with up to 9600 DPI resolution.

7. Equipped with built-in power backup, the 3d floor printing machine can run up to 12 hours without external power or during outages.

3D Floor Wall Printing Machine Vertical Ground Printing Machine for Mural Art/Interior Decoration/Outdoor Advertising

Application

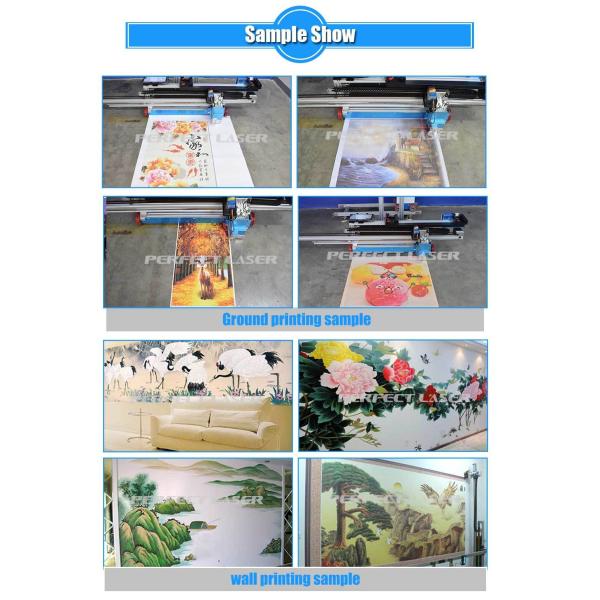

The floor and ground inkjet printing machine is compatible with a wide range of wall and floor materials—like tiles, cement, wood, stone, and artificial surfaces—and is ideal for industries such as decoration, advertising, education, and government or community promotions.

Technical Data

Product Name Wall Floor Ground Printer Printing Machine
Data Transmission Method Usb2.0/3.0/Bluetooth/Wireless Control (Optional)
Ultrasonic Sensor Pair
Length * Width * Height (Host) 40cm*32cm*250cm
The Fastest Painting Speed 64 Square Meters/Hour
Highest Painting Accuracy 9600dpi
Ink Consumption Per Square 6-10Ml
Nozzle Model Epson Print Head (Industrial Grade)
X Axis Folding Optional
Nozzle Guard Have
Head Ink Tank Can Be Split And Transported Separately
Motherboard Configuration 8-Core CPU, 4Gbddr Memory
Painting Direction Vertical
X Axis Guide 2500mm (Can Be Raised And Lowered)
Y Axis Guide 4500mm (Can Be Switched Arbitrarily And Used Cyclically)
Z Axis Guide 170mm
Display Screen Comes With 11.6-Inch Touch Panel
X Axis Effective Stroke 2000mm (The Height Can Be Raised And Lowered)
Y Axis Effective Stroke Unlimited
Z Axis Effective Stroke 150mm
Total Body Weight 32kg
Total Track Weight 38kg
Ink Tank Capacity 400Ml
Nozzle Cleaning One Key Automatic
Wall + Floor Double Color Painting System Have

Packaging & Delivery

1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

Competitive Advantages

1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
