Metal plastics 10nm 7000mm/s 20W high efficiency Desktop Laser Engraving Machine
Metal plastics 10nm 7000mm/s 20W high efficiency Desktop Laser Engraving Machine
Metal plastics 10nm 7000mm/s 20W high efficiency Desktop Laser Engraving Machine
Metal plastics 10nm 7000mm/s 20W high efficiency Desktop Laser Engraving Machine
Metal plastics 10nm 7000mm/s 20W high efficiency Desktop Laser Engraving Machine
Metal plastics 10nm 7000mm/s 20W high efficiency Desktop Laser Engraving Machine
Metal plastics 10nm 7000mm/s 20W high efficiency Desktop Laser Engraving Machine
Metal plastics 10nm 7000mm/s 20W high efficiency Desktop Laser Engraving Machine
Specifications
Brand Name :
Perfect Laser
Model Number :
PEDB-400B
Certification :
CE / ISO/FDA/SGS/TUV
Place of Origin :
China
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
T/T, L/C, PayPal, Western Union
Supply Ability :
1000 Unit per Month
Delivery Time :
7-15 Working Days
Packaging Details :
Sea-Worthy Packing or Air-Worthy Packing
Laser Type :
Fiber Laser
Consumable :
No consumable, Free of maintenance
Laser Power :
10w, 20W, 30W, 50w
Cooling Mode :
Air Cooling
After-sales Service Provided :
Engineers Service Overseas
IPG Series :
Pulsed, High Energy Ytterbium Fiber Lasers
Max. Power consumption :
600W
Scanning Speed :
0-7000mm/s
Marking Speed :
0-5000mm/s
Marking size :
110mm×110mm (F-theta 160)
Description




7000mm/s Fast Scanning Speed Low Noise Metal Fiber Laser Engraving Machine

(Model:PEDB-400B)

Description

Perfect Laser laser marking machine adopts advanced fiber laser source , high efficiency, less consumption, desktop design more compact and convenient, easy to move,Improve work efficiency and ensure work quality.

Product Features

1,Small floor area: small machine, easy to handle, save space.

2,High efficiency: in the desktop optical fiber laser source marking machine, the production quality and quantity is better than other products.

3,Wide range of application: a variety of materials, a variety of styles can be customized for customer voice.

4,High cost performance: The benchtop optical fiber laser marking machine can carry out production in various working environments, and the laser can work for 100,000 hours without maintenance.

5,Low production consumption: no power coupling loss, no consumables, reducing production cost for customers.

Application Field and Material:


Widely used in computer accessories, industrial bearings, watches, electronic and communication products, hardware tools, molds, wire and cable, food packaging, jewelry, handicrafts, zippers, key chains, sanitary ware and other materials graphic and text mark

Technical Data

Model No PEDB-400A PEDB-400B PEDB-400C PEDB-400D
Type Portable Desktop Colorful Standby
Computer Not includes PC Includes PC
Laser Source
IPG Series Pulsed, High Energy Ytterbium Fiber Lasers
Mode of operation Pulsed
Polarization random
Nominal average output power

10W - 30W For PEDB-400A /400B /400C

10W - 50W For PEDB-400D
Central emission wavelength 1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100%

Emission Bandwidth

(FWHM)

 <10nm
Long-term average power instability <5%
Pulse width(FWHM) 100 ns
Laser switching ON time 180 μsec
Laser switching OFF time 180 μsec
Pulse Repetition Rate* kHz 20-80 kHz
Energy per pulse (PRR = 20 kHz) 0.95 mJ
Typical beam quality, M2 <1.8
Output fiber delivery length 3m
Operating voltage 220V
Max. Power consumption 600W
Net Dimensions 70*20*50cm 80*38*72cm 70*20*50cm 143*62*101cm
Net Weight 44 kgs 53 kgs 44 kgs 130 kgs
Gross Weight 60 kgs 70 kgs 60 kgs 200 kgs
Laser system
Scanning Speed 0-7000mm/s
Marking Speed 0-5000mm/s
Marking size 110mm×110mm (F-theta 160)
Spot size ≤ 40 micron (F-theta 160)
Cooling unit Air cooled
Pilot laser 1064 fiber laser source
Continuous working time ≥16h
Humidity 45～85% (no condensation)
Operating temperature 0~40℃
Control units Laser Mark (English Version)

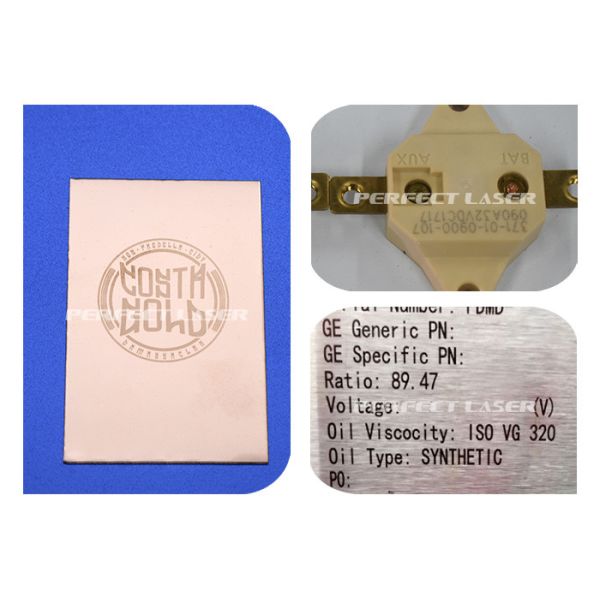

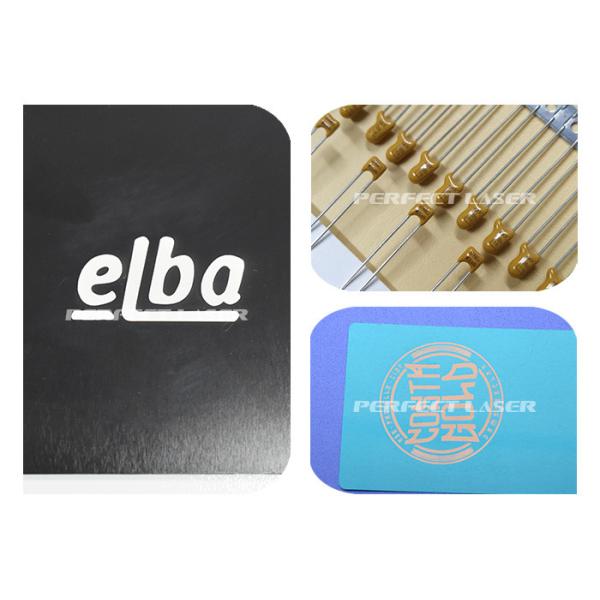

Sample Show


Metal plastics 10nm 7000mm/s 20W high efficiency Desktop Laser Engraving MachineMetal plastics 10nm 7000mm/s 20W high efficiency Desktop Laser Engraving Machine

Packaging & Delivery

1. Well-trained and disciplined packing team.
2. Sophisticated and professional logistic agent.
3. Prompt deliver at the very day
4. After-sale service:Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.


Competitive Advantages


1. Good after-sale service.
2. Flexible and Untraceable payment terms.
3. 100% custom pass guaranteed.
4. We offer high quality products at competitive price in quick delivery.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
